Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number (Kent-Moore No.) Tool name		Description
ST27862000 ( - ) Drift a: 62.5 mm (2.461 in) dia. b: 42 mm (1.65 in) dia.		Installing front oil seal

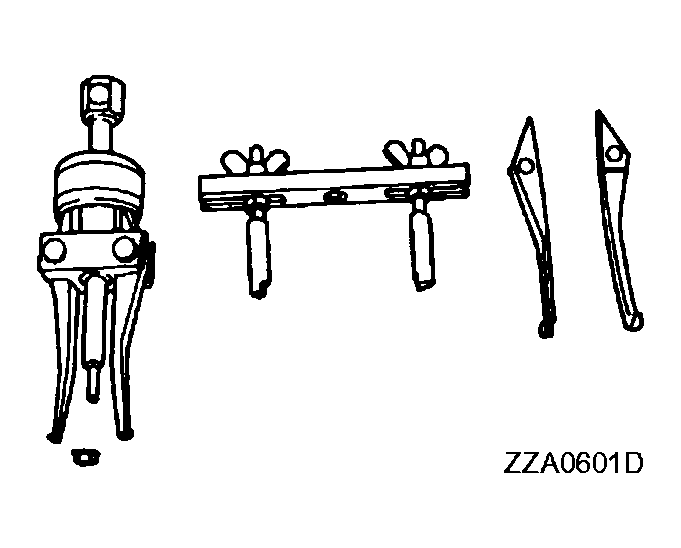

KV381054S0 (J-34286) Puller		Removing rear oil seal
ST30720000 (J-25405) Drift a: 77 mm (3.03 in) dia. b: 55.5 mm (2.185 in) dia.		Installing rear oil seal Installing mainshaft oil seal
KV40104830 ( - ) Drift a: 70 mm (2.76 in) dia. b: 63.5 mm (2.500 in) dia.		Installing rear oil seal
KV38100300 (J-25523) Drift a: 54 mm (2.13 in) dia. b: 46 mm (1.81 in) dia. c: 32 mm (1.26 in) dia.		Removing mainshaft bearing
ST33052000 ( - ) Drift a: 28 mm (1.10 in) dia. b: 22 mm (0.87 in) dia.		Removing mainshaft assembly

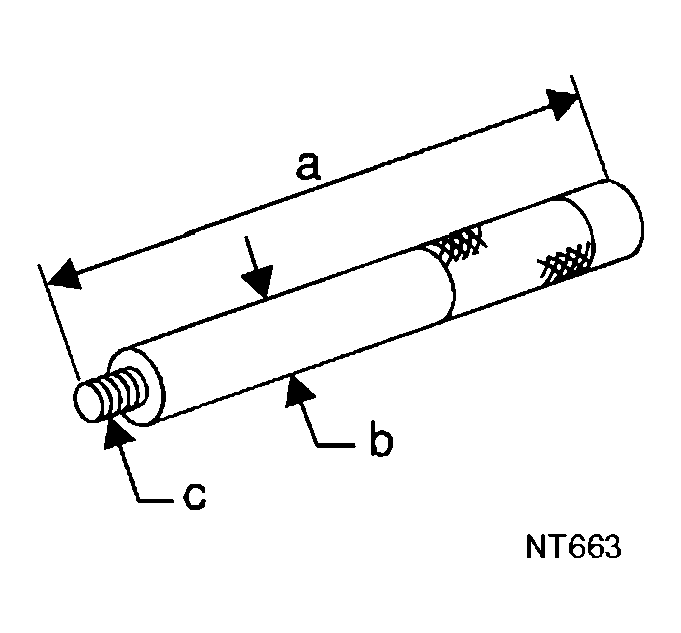

ST30611000 (J-25742-1) Drift bar a: 350 mm (1.10 in) b: 25 mm (1.10 in) dia. c: M12 x 1.5P		Removing rear bearing
ST35321000 ( - ) Drift a: 49 mm (1.93 in) dia. b: 41 mm (1.61 in) dia.		Removing rear bearing Installing mainshaft assembly
ST31214000 (J-25269-B) Drift a: 34 mm (1.34 in) dia. b: 25.5 mm (1.004 in) dia.		Removing front drive shaft front bearing Removing front drive shaft rear bearing
KV38104010 ( - ) Drift a: 67 mm (2.64 in) dia. b: 49 mm (1.93 in) dia.		Installing front drive shaft rear bearing Installing rear bearing
ST33200000 (J-26082) Drift a: 60 mm (2.36 in) dia. b: 44.5 mm (1.752 in) dia.		Installing front drive shaft front bearing
ST30621000 (J-25742-5) Drift a: 80 mm (3.15 in) dia. b: 59 mm (2.32 in) dia.		Installing mainshaft bearing
