Transfer Fluid: Replacement: Draining
- Run the vehicle to warm up the transfer unit sufficiently.

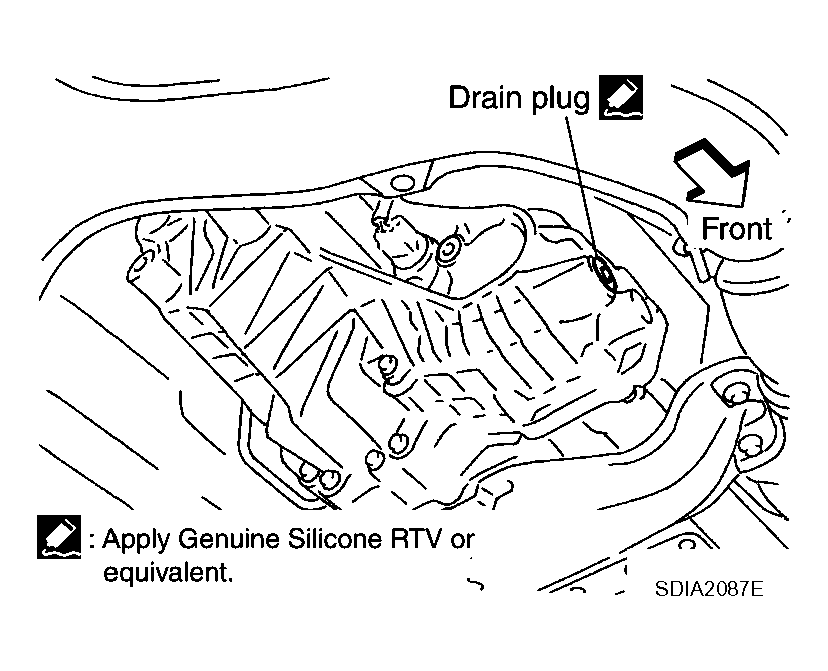

- Stop the engine, and remove the drain plug to drain the transfer fluid.CAUTION: When draining fluid, protect exhaust tube flange with cover.
- Apply sealant to drain plug. Install drain plug on transfer and tighten to the specified torque. Refer to
, "COMPONENTS ".
- Use Genuine Silicone RTV or equivalent. Refer to " RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
CAUTION: Remove old sealant adhering to mounting surfaces. Also remove any moisture, oil, or foreign material adhering to application and mounting surfaces.
