Transfer Fluid: Replacement: Filling

Remove filler plug and add transfer fluid until fluid level reaches the specified limit near filler plug mounting hole.
Fluid capacity : Approx. 1.25 l (2-5/8 US pt, 2-1/4 lmp pt)

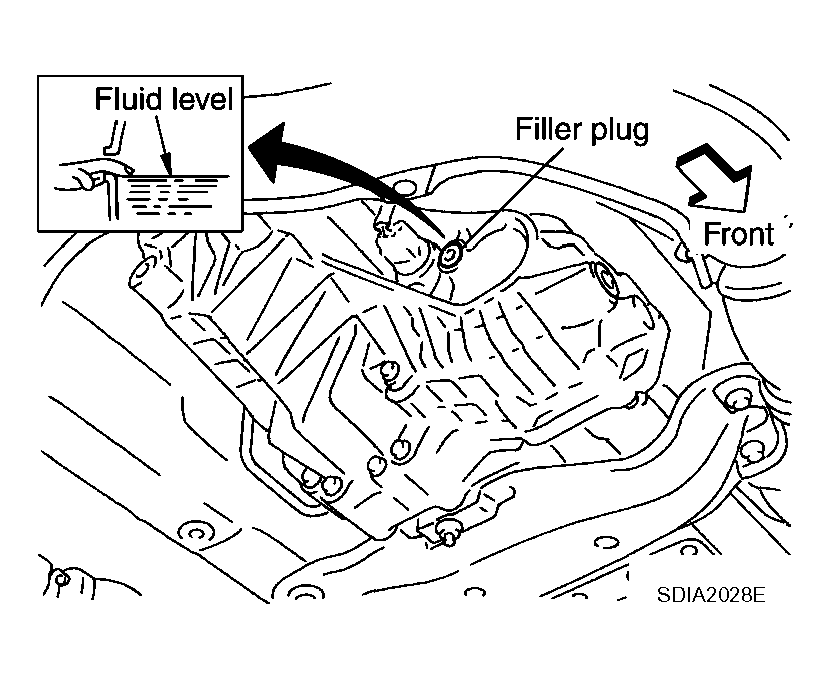

Fig 1: Identifying Filler Plug And Fluid Level
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Carefully fill the fluid. (Fill up for approx. 3 minutes.)
Leave the vehicle for 3 minutes, and check the fluid level again.
Set a new gasket onto filler plug and install it on transfer and tighten to the specified torque. Refer to "COMPONENTS ".
CAUTION: Do not reuse gasket.
