Control Rod Components (2WD Models)

Refer to the figure below for control rod removal and installation procedure.

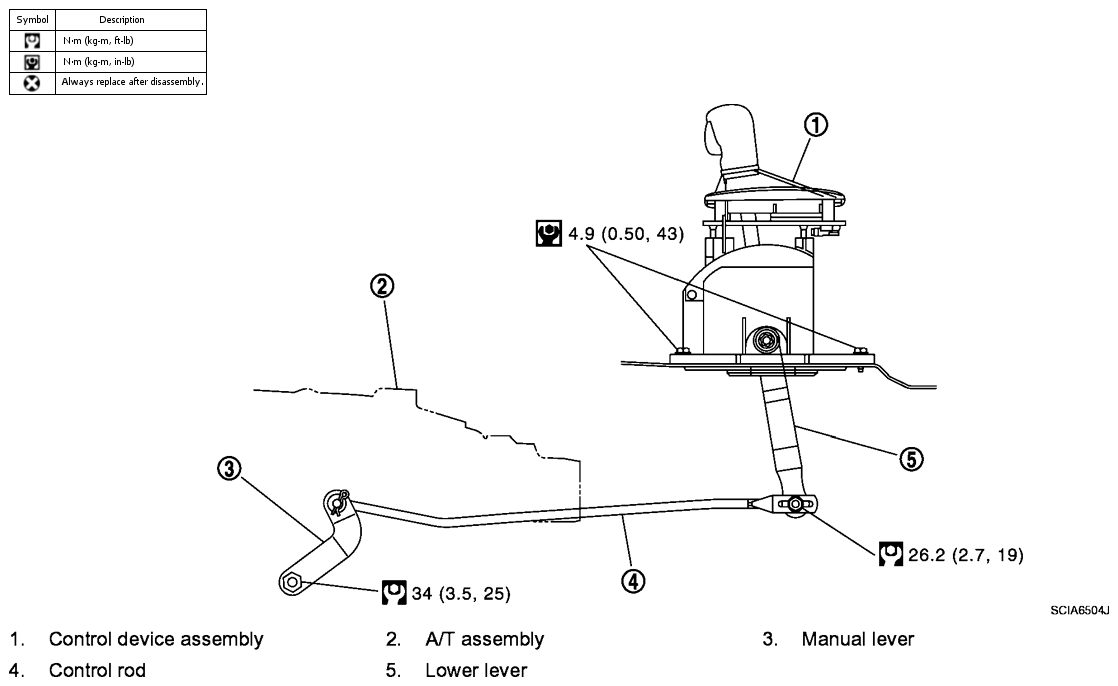

Fig 1: Control Rod Replacement Components With Torque Specifications (2WD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".
