Sliding Sensor Circuit Check

  1. CHECK FUNCTION

    With CONSULT-II

    Check operation with "SLIDE PULSE" on the DATA MONITOR to make sure the pulse changes.

    MONITOR ITEM CONTENTS

    Monitor item [OPERATION or UNIT] Contents
    SLIDE PULSE - The seat sliding position (pulse) judged from the sliding sensor signal is displayed
    Fig 1: CONSULT II Display - Data Monitor
    G04077655Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch OFF.
    2. Check signal between driver seat control unit connector and ground, with oscilloscope.
    DRIVER SEAT CONTROL UNIT CONNECTOR AND GROUND SIGNAL

    Driver seat control unit connector Terminals Condition Signal (Reference value)
    (+) (-)
    B204 24 Ground Sliding motor operation

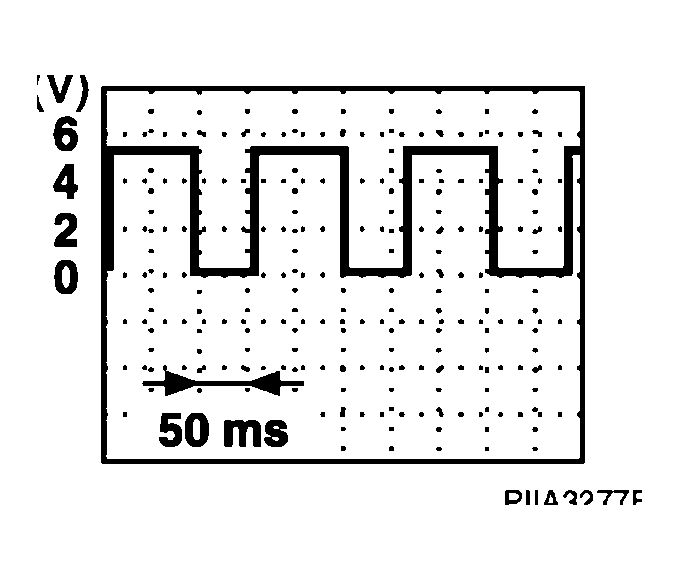

    G04145950

    OK or NG

    OK: Sliding sensor circuit is OK.

    NG: GO TO 2.

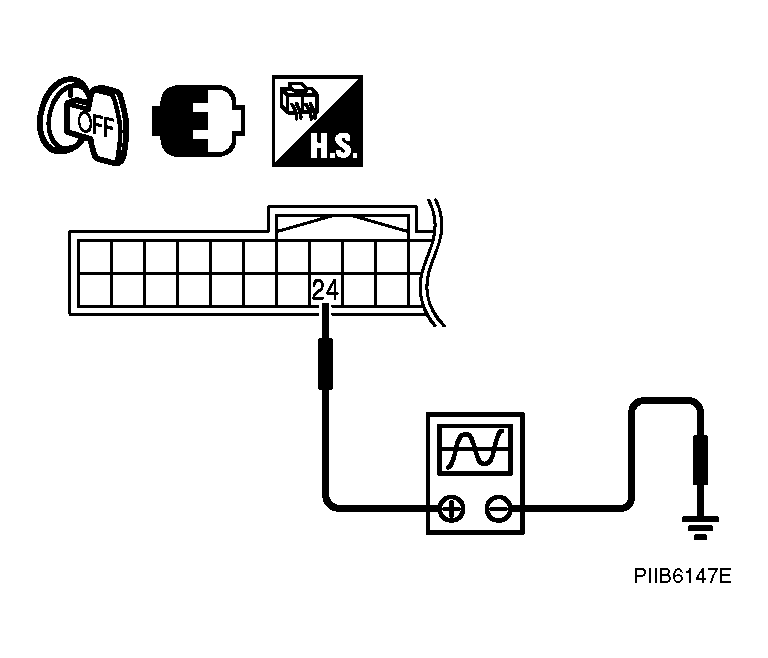

    Fig 2: Identifying Signal Between Driver Seat Control Unit Connector And Ground, With Oscilloscope
    G04145951Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK SLIDING SENSOR CIRCUIT HARNESS CONTINUITY
    1. Disconnect driver seat control unit connector and sliding sensor front lifting sensor connector.
    2. Check continuity between driver seat control unit connector and sliding sensor front lifting sensor connector.
      DRIVER SEAT CONTROL UNIT CONNECTOR AND SLIDING SENSOR FRONT LIFTING SENSOR CONNECTOR CONTINUITY

      A B Continuity
      Driver seat control unit connector Terminal Sliding sensor front lifting sensor connector Terminal
      B204 24 B214 24 Yes
      31 31
    3. Check continuity between driver seat control unit connector and ground.
      DRIVER SEAT CONTROL UNIT CONNECTOR AND GROUND CONTINUITY

      A Ground Continuity
      Driver seat control unit connector Terminal
      B204 24 No
      31

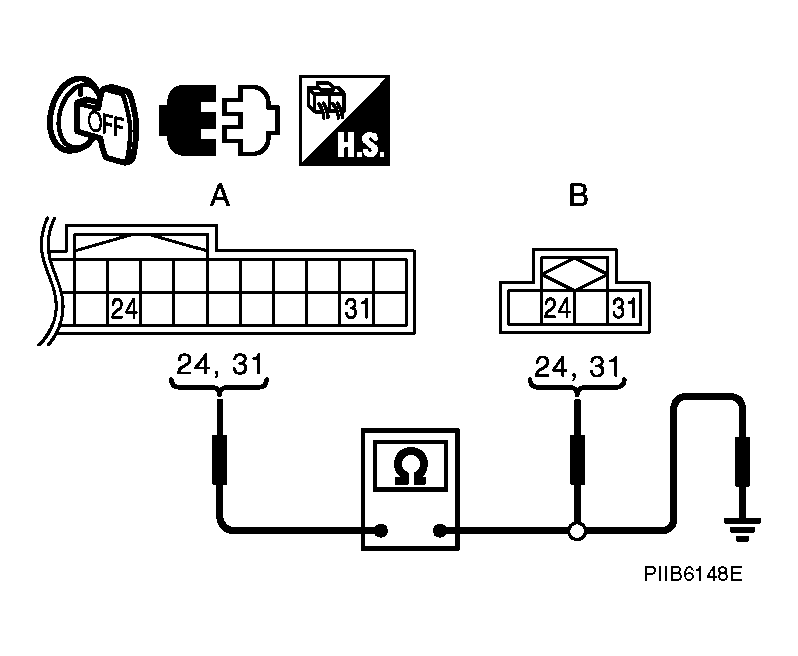

      Fig 3: Identifying Continuity Between Driver Seat Control Unit Connector And Sliding Sensor Front Lifting Sensor Connector
      G04145952Courtesy of NISSAN MOTOR CO., U.S.A.

      OK or NG

      OK: GO TO 3.

      NG: Repair or replace harness.

  3. CHECK DRIVER SEAT CONTROL UNIT OUTPUT
    1. Connect driver seat control unit connector.
    2. Check voltage between driver seat control unit connector and ground.
    DRIVER SEAT CONTROL UNIT CONNECTOR AND GROUND VOLTAGE

    Terminals Voltage (V) (Approx.)
    (+) (-)
    Driver seat control unit connector Terminal
    B204 24 Ground 5

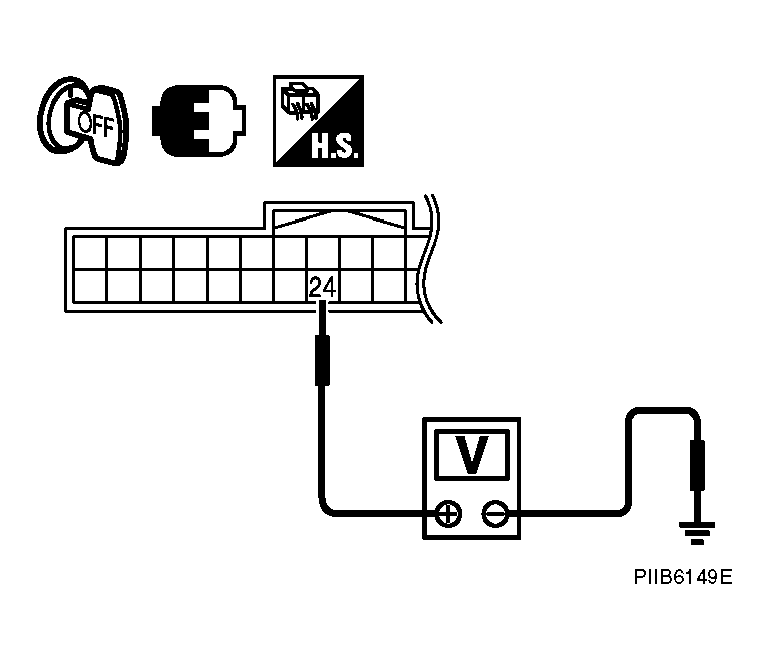

    Fig 4: Identifying Voltage Between Driver Seat Control Unit Connector And Ground
    G04145953Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Replace sliding sensor front lifting sensor.

    NG: Replace automatic drive positioner control unit.
