Telescopic Sensor Circuit Check

  1. CHECK FUNCTION

    With CONSULT-II

    Operate the telescopic switch with "TELESCO SEN" on the DATA MONITOR to make sure the voltage changes.

    MONITOR ITEM CONTENTS

    Monitor item [OPERATION or UNIT] Contents
    TELESCO
    SEN
    "V" The telescoping position (voltage) judged from the telescoping sensor signal is displayed.

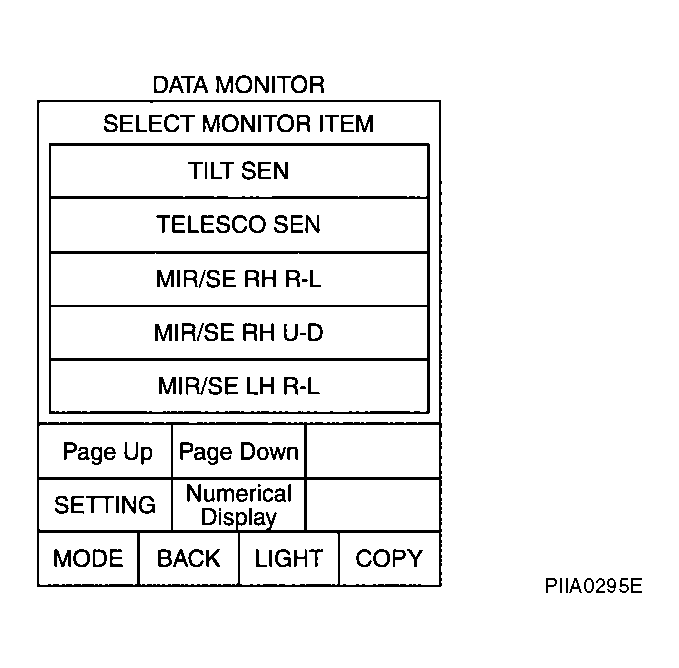

    Fig 1: CONSULT II DATA MONITOR Screen
    G04145969Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch OFF.
    2. Check voltage between automatic drive positioner control unit connector and ground.
      AUTOMATIC DRIVE POSITIONER CONTROL UNIT CONNECTOR AND GROUND VOLTAGE

      Automatic drive positioner connector Terminals Condition Voltage (V) (Approx.)
      (+) (-)
      M6 23 Ground Telescopic top position 4.6
      Telescopic bottom position 0.4

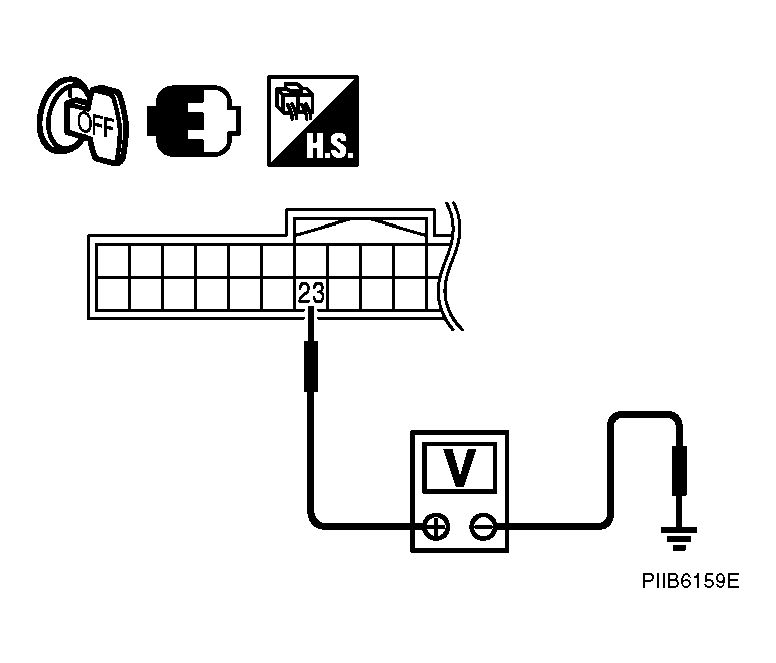

      Fig 2: Identifying Voltage Between Automatic Drive Positioner Control Unit Connector And Ground
      G04145970Courtesy of NISSAN MOTOR CO., U.S.A.

      OK or NG

      OK: Telescopic sensor circuit is OK.

      NG: GO TO 2.

  2. CHECK HARNESS CONTINUITY
    1. Disconnect automatic drive positioner control unit connector and telescopic sensor connector.
    2. Check continuity harness between automatic drive positioner control unit connector and telescopic sensor connector.
      AUTOMATIC DRIVE POSITIONER CONTROL UNIT CONNECTOR AND TELESCOPIC SENSOR CONNECTOR CONTINUITY

      A B Continuity
      Automatic drive positioner control unit connector Terminal Telescopic sensor connector Terminal
      M6 23 M44 2 Yes
      M7 33 1
      41 3
    3. Check continuity harness between automatic drive positioner control unit connector and ground.
      AUTOMATIC DRIVE POSITIONER CONTROL UNIT CONNECTOR AND GROUND CONTINUITY

      A Ground Continuity
      Automatic drive positioner control unit connector Terminal
      M6 23 No
      M7 33
      41

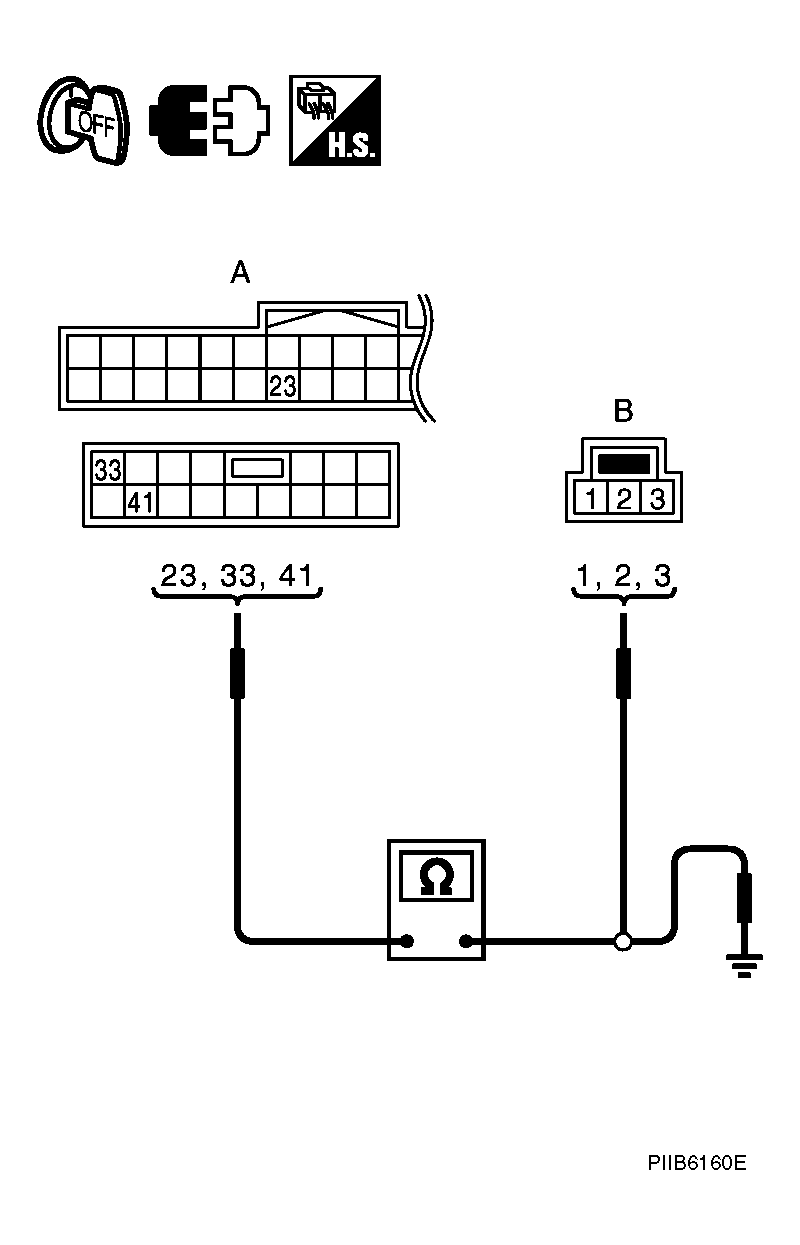

      Fig 3: Identifying Continuity Harness Between Automatic Drive Positioner Control Unit Connector And Telescopic Sensor Connector
      G04145971Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 3.

    NG: Repair or replace harness.

  3. CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT
    1. Connect automatic drive positioner control unit connector.
    2. Check voltage between automatic drive position control unit connector and ground.
    AUTOMATIC DRIVE POSITION CONTROL UNIT CONNECTOR AND GROUND VOLTAGE

    Terminals Voltage (V) (Approx.)
    (+) (-)
    Automatic drive positioner control unit connector Terminal
    M6 23 Ground 5
    Fig 4: Identifying Voltage Between Automatic Drive Position Control Unit Connector And Ground
    G04145972Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Replace telescopic sensor.

    NG: Replace automatic drive positioner control unit.
