Inspection Between Driver Seat Control Unit and Data Link Connector Circuit

1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and harness side).
   • Harness connector B69
   • Harness connector M40

OK or NG

• OK : GO TO 2.
• NG : Repair terminal or connector.

1. Disconnect harness connector B37 and harness connector B69.
2. Check continuity between harness connector (A) and harness connector (B).
   TERMINAL CONTINUITY CHART



   A		B		Continuity
   Connector	Terminal	Connector	Terminal
   B37	15	B69	51J	Yes
   	14		52J	Yes

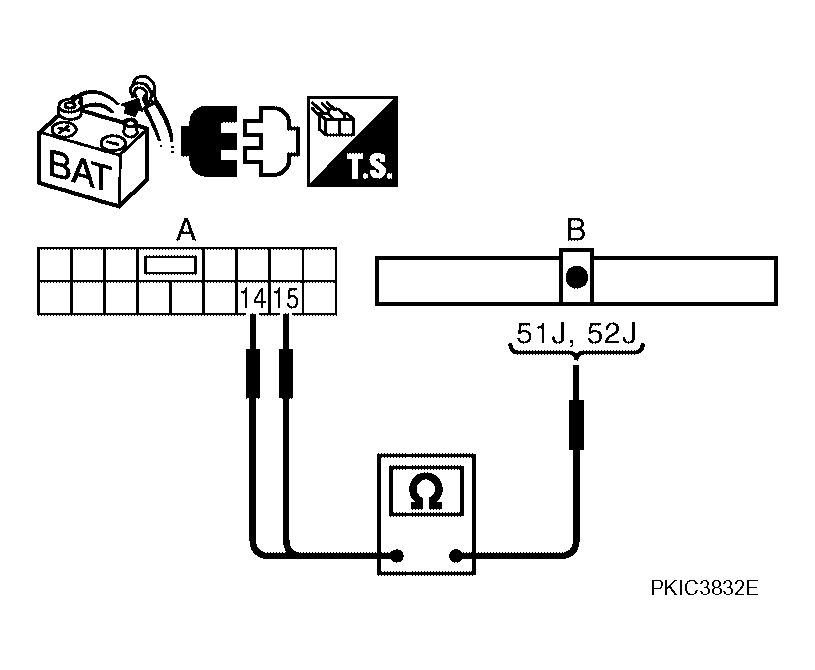

   Fig 1: Identifying Continuity Between Harness Connector (A) And Harness Connector (B)

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : GO TO 3.
• NG : Repair harness.

Check continuity between harness connector (A) and data link connector (B).

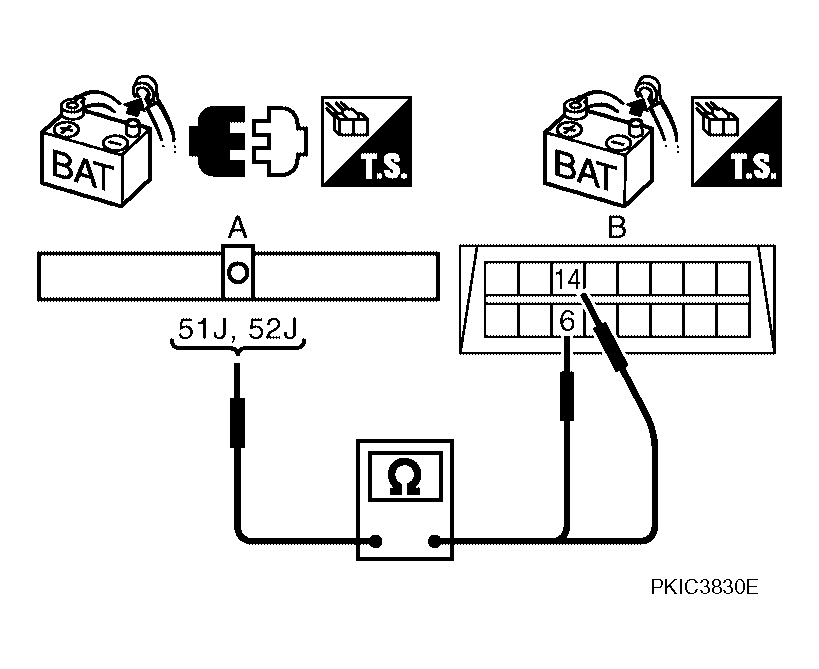

Fig 2: Identifying Continuity Between Harness Connector (A) And Data Link Connector (B)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : Connect all the connectors and diagnose again. Refer to "TROUBLE DIAGNOSES WORK FLOW ".
• NG : Repair harness.
