Basic Operation

Turn ignition switch OFF.
Connect CONSULT-II CONVERTER and CONSULT-II to data link connector (1).

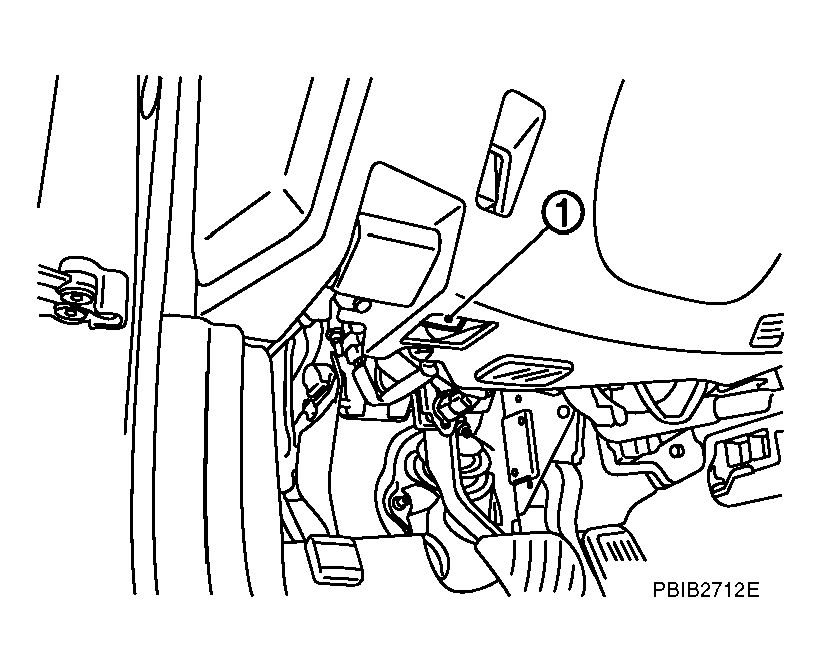

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Use mechanical key to turn ignition switch to ON.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Consult-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "INTELLIGENT KEY" on "SELECT SYSTEM" screen.
If "INTELLIGENT KEY" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Consult-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode. "WORK SUPPORT", "SELF-DIAG RESULTS", "CAN DIAG SUPPORT MNTR", "DATA MONITOR", "ACTIVE TEST" and "ECU PART NUMBER" are available.

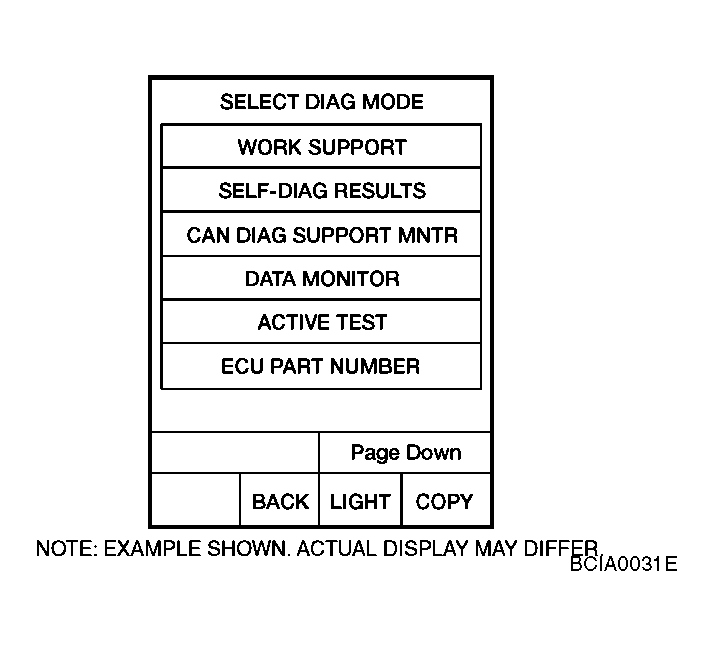

Fig 4: Display SELECT DIAG MODE

Courtesy of NISSAN MOTOR CO., U.S.A.
