Terminals and Reference Value for Intelligent Key Unit

TERMINALS AND REFERENCE VALUE FOR INTELLIGENT KEY UNIT

Terminal No.	Wire color	Item	Condition		Voltage (V) (Approx.)
			Push-button ignition switch position	Operation or conditions
1	SB	Power source (fuse)	-	-	Battery voltage
3	Y	IPDM E/R status signal	START	Engine starting (During cranking)	5
			LOCK	Other than above	2

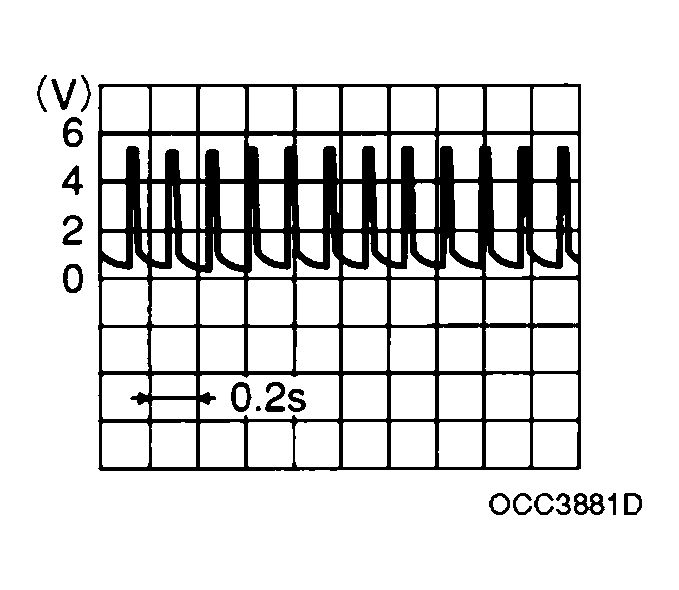

4	B/Y	RSSI signal	LOCK	Carry the Intelligent Key within the inside key antenna detection area, and then push the push-button ignition switch.	0
				Other than above

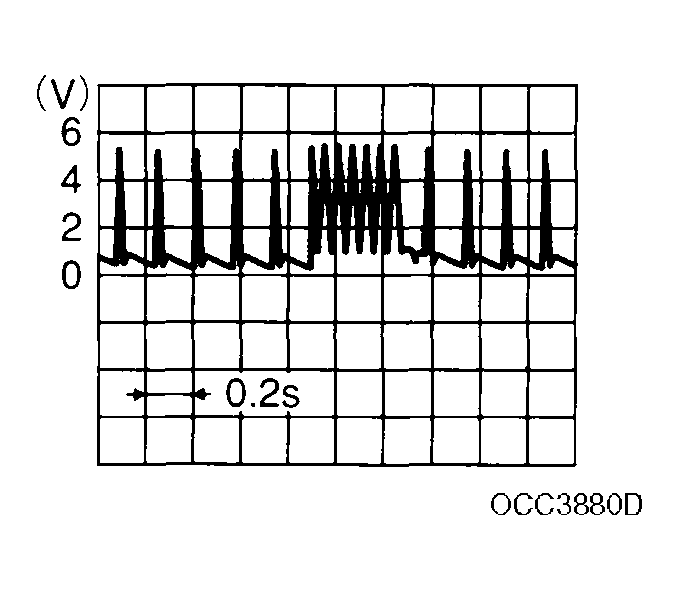

5	B/W	Remote key less entry receiver signal	LOCK	Carry the Intelligent Key within the inside key antenna detection area, and then push the push-button ignition switch. (When receiving the signal from Intelligent Key)

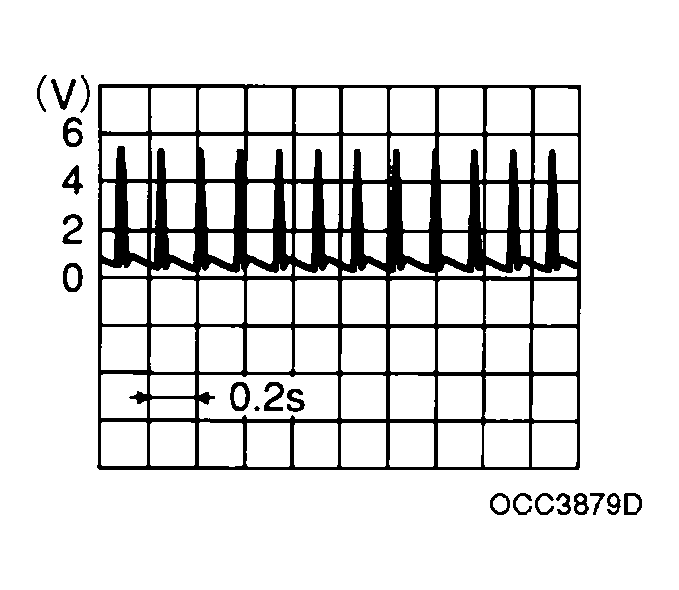

				Other than above (Signal receiving wait mode)
6	B	Remote key less entry receiver ground	-	-	0
7	B/R	Remote keyless entry receiver power supply	-	-
8	W	Push-button ignition switch LOCK indicator	LOCK	Push-button ignition switch is in LOCK position	0
			-	Push-button ignition switch is in any position (Except LOCK position)	1.2
9	L	Push-button ignition switch ACC indicator	ACC	Push-button ignition switch is in ACC position	0
			-	Push-button ignition switch is in any position (Except ACC position)	1.2
10	V	Push-button ignition switch ON indicator	ON	Push-button ignition switch is in ON position	0
			-	Push-button ignition switch is in any position (Except ON position)	1.2
11	P	Stop lamp switch	-	Brake pedal depressed	Battery voltage
				Brake pedal released	Battery voltage
12	L/R	Push-button ignition switch illumination	-	Push-button ignition switch illumination is turned on	2.6
				Push-button ignition switch illumination is turned off (15 seconds or more after the driver door is closed)	0
13	LG/B	Key slot illumination	LOCK	Insert Intelligent Key into key slot and driver side door is open.	Battery voltage
				Remove Intelligent Key from key slot.	0
15	LG	Steering lock unit power source	LOCK	-	Battery voltage
16	P/B	Steering lock unit signal	LOCK	Steering lock: Lock	Battery voltage
			ACC	Steering lock: Unlock (Unlocked moment)	0
			NO		0
17	O	Steering lock unit condition signal-1	LOCK	Steering lock: Lock	0
			ACC	Steering lock: Unlock	Battery voltage
			ON		Battery voltage
18	L/Y	Steering lock unit condition signal-2	LOCK	Steering lock: Lock	Battery voltage
			ACC	Steering lock: Unlock	0
			ON		0
19	BR/Y	Key switch signal	LOCK	Insert Intelligent Key into key slot.	0
				Remove Intelligent Key from key slot	Battery voltage
20	B	Ground	-	-	0
27	V	A/T device (Detention switch)	LOCK	A/T selector lever is in P position	0
			ON	Other than above	Battery voltage
28	SB	Starter relay	ON	A/T selector lever is in N or P position	Battery voltage
			-	Ignition switch position is in LOCK position or A/T selector lever is in any position other than N or P position	0
29	V/R	Stop lamp switch	-	Brake pedal depressed	Battery voltage
				Brake pedal released	0
30	L/W	Ignition power supply (ACC)	ACC	Ignition switch position is in ACC or ON position	Battery voltage
31	GR	Ignition power supply (ON)	ON	Ignition switch position is in ON or START position	Battery voltage
33	O	PDU signal	LOCK	Steering lock: Lock	0
			ACC	Steering lock: Unlock	8
34	R	PDU feed back signal	LOCK	Sleep condition (30 seconds or more after all doors are closed under the condition that the ignition switch position is in the LOCK position)	1
			-	Wake-up condition (any condition other than above)	0

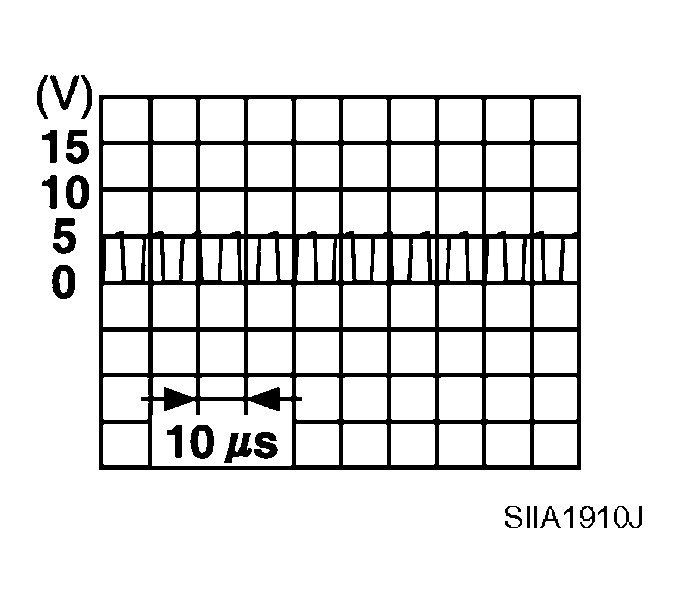

35	LG	Vehicle speed signal	ON	At speedometer operation (vehicle speed approx. 40 km/h)
37	P	CAN-L	-	-	-
38	L	CAN-H	-	-	-
39	BR/W	Push-button ignition switch	-	Push-button ignition switch is pressed	0
				Push-button ignition switch is released	Battery voltage
40	B	Ground	-	-	0
41	Y	Power source (fuse)	-	-	Battery voltage
42	P	PDU wake up signal	LOCK	Sleep condition (30 seconds or more after all doors are closed under the condition that the ignition switch position is in the LOCK position)	Battery voltage
			-	Wake-up condition (Open driver door)	0
43	G	Starter signal	ON	At starter motor cranking	0
			-	Any condition other than above	Battery voltage
46	V	Steering lock control signal-1	-	Push-button ignition switch is pressed under the condition that Intelligent Key is in the vehicle or Intelligent Key is inserted	Battery voltage
			LOCK	Ignition switch position is in LOCK position (Steering lock activated)	Battery voltage --> 0 --> Battery voltage (Battery voltage is detected when activating the steering lock)

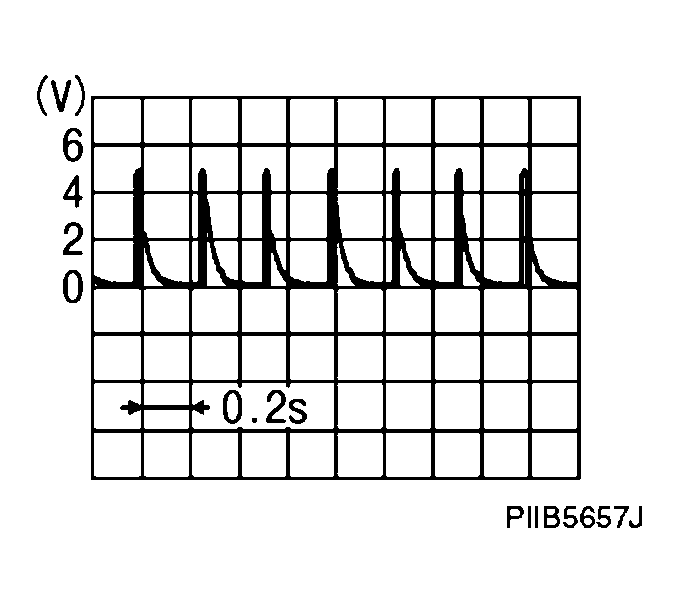

47	LG	Inside key antenna (+) signal (Instrument center)	LOCK	Any door open --> closed (Door switch: ON --> OFF)
48	V	Inside key antenna (-) signal (Instrument center)
49	B	Inside key antenna (+) signal (console)	LOCK	Any door open --> closed (Door switch: ON --> OFF)
50	W	Inside key antenna (-) signal (console)
51	F/L	Inside key antenna (+) signal (Rear seat)	LOCK	Any door open --> closed (Door switch: ON --> OFF)
52	R/W	Inside key antenna (-) signal (Rear seat)
53	G/W	Inside key antenna (+) signal (Trunk room)	LOCK	Any door open --> closed (Door switch: ON --> OFF)
54	LG	Inside key antenna (-) signal (Trunk room)
56	B	Ground	-	-	0
57	L	Power source (fuse)	-	-	Battery voltage
58	O	A/T device (Detention switch)	LOCK	At sleep (30 seconds or more after all doors are closed under the condition that the ignition switch position is in the LOCK position)	0
				At wake-up (Open driver door)	Battery voltage
71	LG	Steering lock control signal-2	LOCK	Push-button ignition switch is pressed under the condition that Intelligent Key is in the vehicle or Intelligent Key is inserted	Battery voltage
			ACC	Ignition switch position is in LOCK position (Steering lock activated)	Battery voltage --> 0 --> Battery voltage (Battery voltage is detected when activating the steering lock)
72	B	Ground	-	-	0
