Check Combination Meter Display Function

CHECK METER DISPLAY
With CONSULT-II

Check the operation with ("LCD") in the ACTIVE TEST.

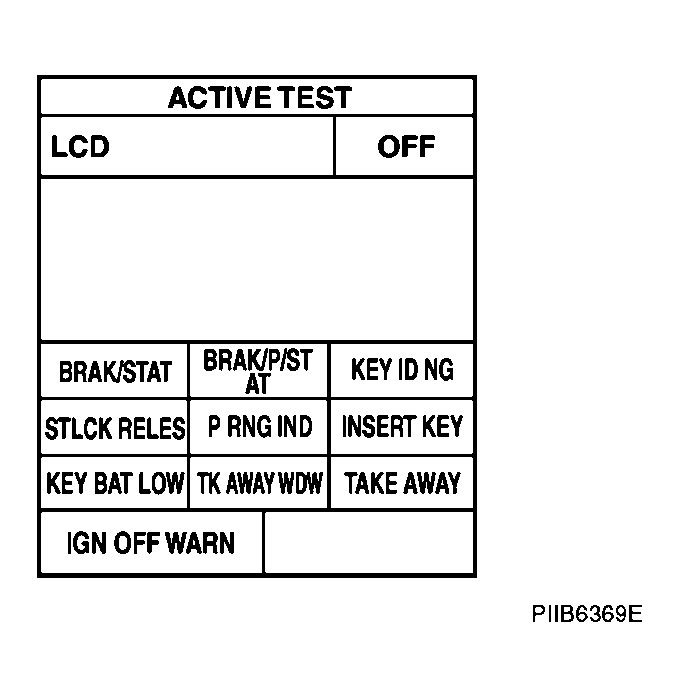

Fig 1: Display ACTIVE TEST Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Is each warning displayed on meter display?

OK or NG

OK: Meter display is OK.

NG: Check combination meter. Refer to "SELF-DIAGNOSIS MODE OF COMBINATION METER ".
