System Description: Notes

The buzzer (1) for warning chime system is installed in the combination meter.
The buzzer sounds when the combination meter receives buzzer output signal from each unit through unified meter and A/C amp.

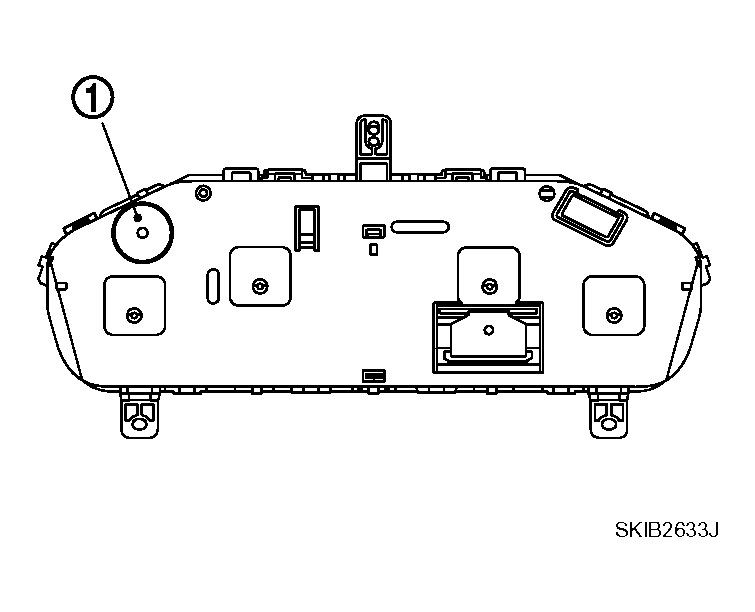

Fig 1: Identifying Warning Chime System Buzzer

Courtesy of NISSAN MOTOR CO., U.S.A.
