Without CONSULT-II

  1. Remove fuel pump fuse (1) located in IPDM E/R (2).
  2. Start engine.
  3. After engine stalls, crank it 2 or 3 times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.

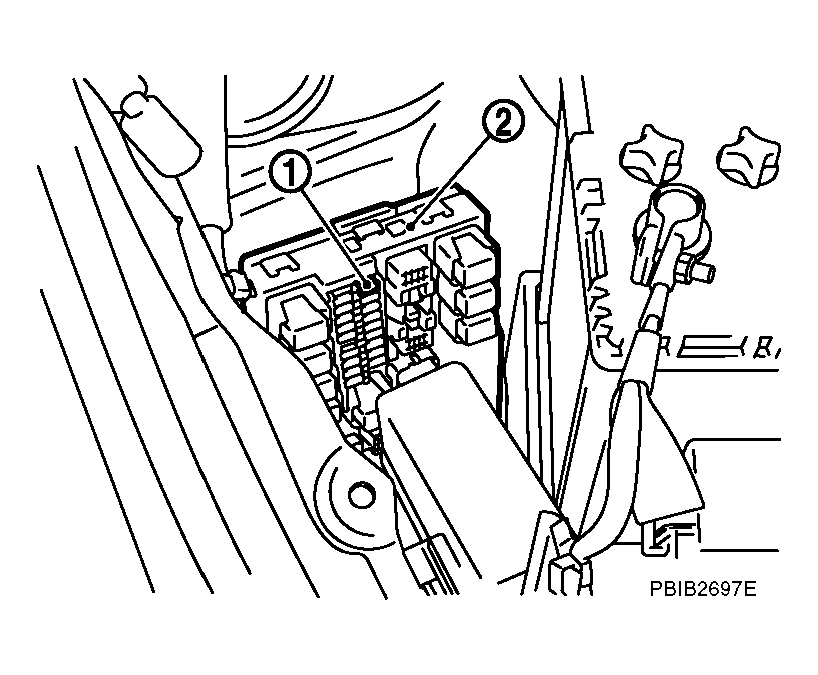

    Fig 1: Identifying Fuel Pump Fuse
    G04143188Courtesy of NISSAN MOTOR CO., U.S.A.
