Engine Control System - VK45DE - M45 - Introduction And DTC Index
>>
Basic Service Procedure
>>
Idle Mixture Ratio Adjustment
>>
Overall Sequence
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Overall Sequence

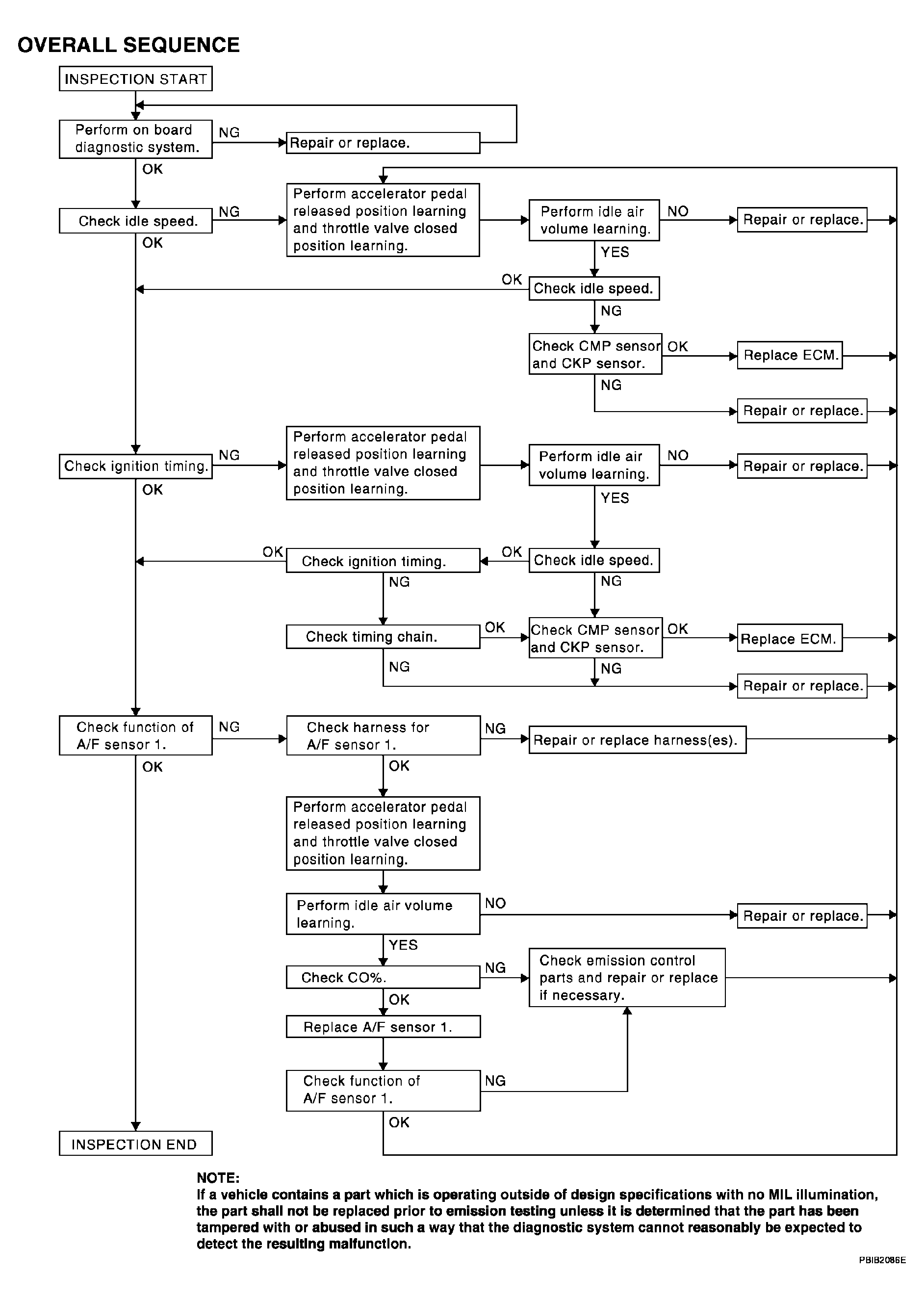

Fig 1: Overall Sequence Of Basic Service Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
