Method A

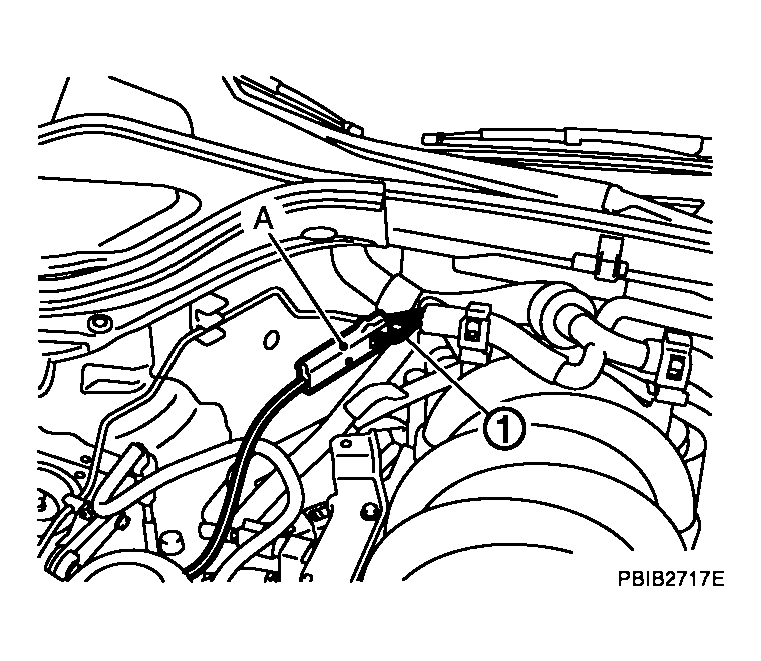

Attach timing light A to loop wire (1) as shown.

Fig 1: Attaching Timing Light A To Loop Wire
Courtesy of NISSAN MOTOR CO., U.S.A.

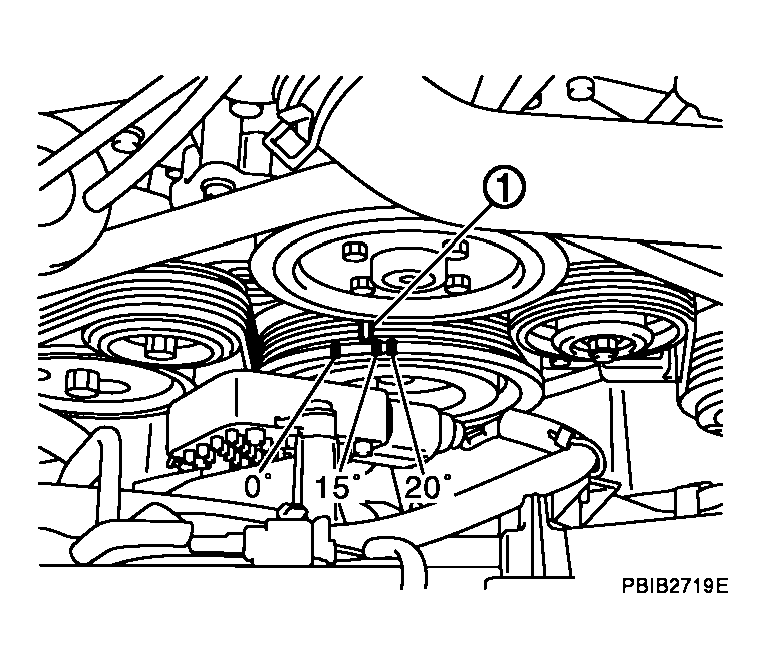

Check ignition timing.
- Timing indicator (1)
Fig 2: Checking Ignition Timing
Courtesy of NISSAN MOTOR CO., U.S.A.
