Commercial Service Tools
COMMERCIAL SERVICE TOOLS DESCRIPTION
| Tool name (Kent-Moore No.) | Description | |
|---|---|---|

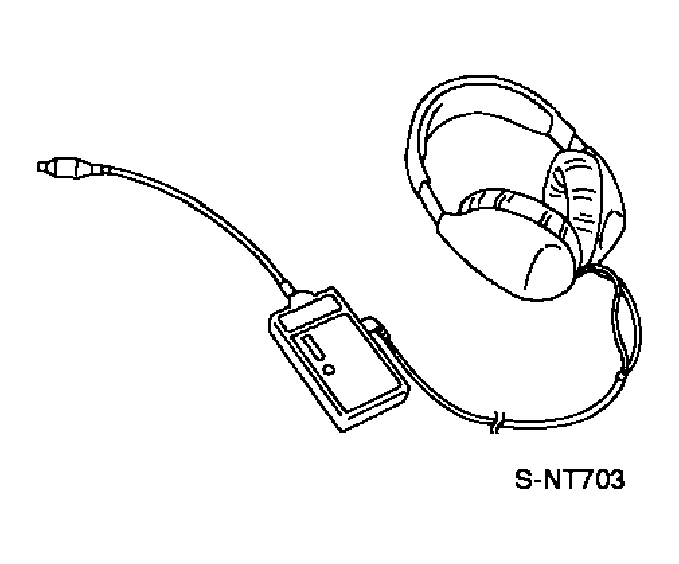

| Leak detector i.e.: (J-41416) |
Locating the EVAP leak | |

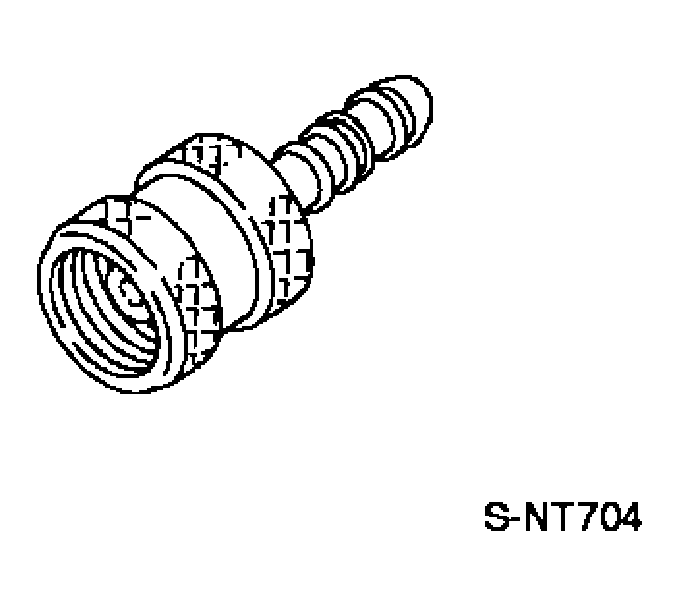

| EVAP service port adapter i.e.: (J-41413-OBD) |
Applying positive pressure through EVAP service port | |

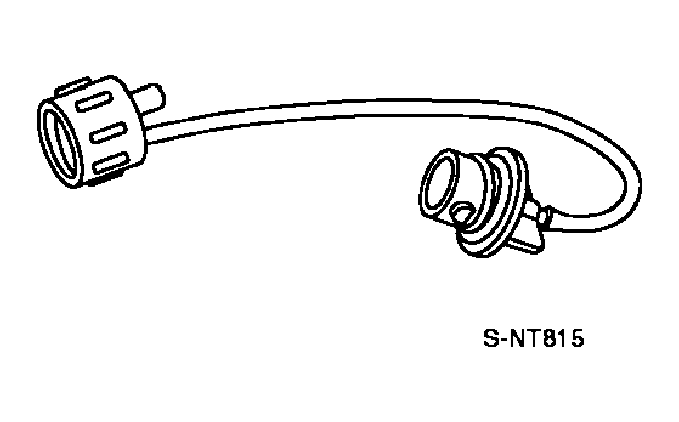

| Fuel filler cap adapter i.e.: (MLR-8382) |
Checking fuel tank vacuum relief valve opening pressure | |

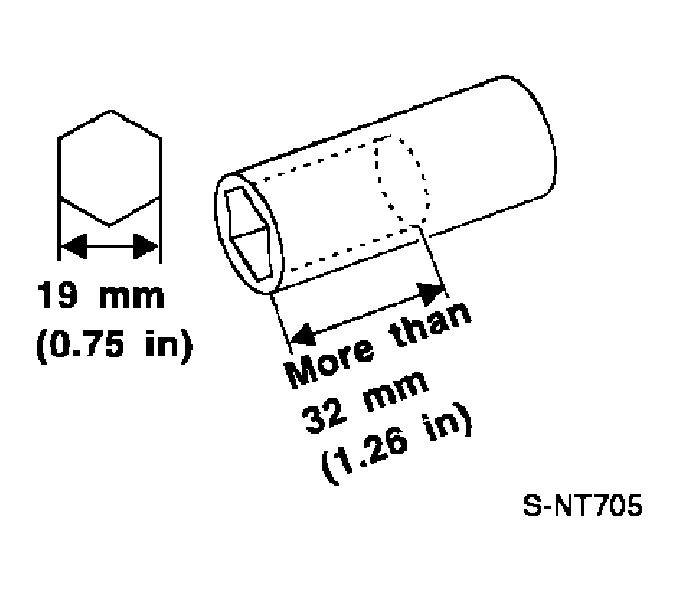

| Socket wrench | Removing and installing engine coolant temperature sensor | |

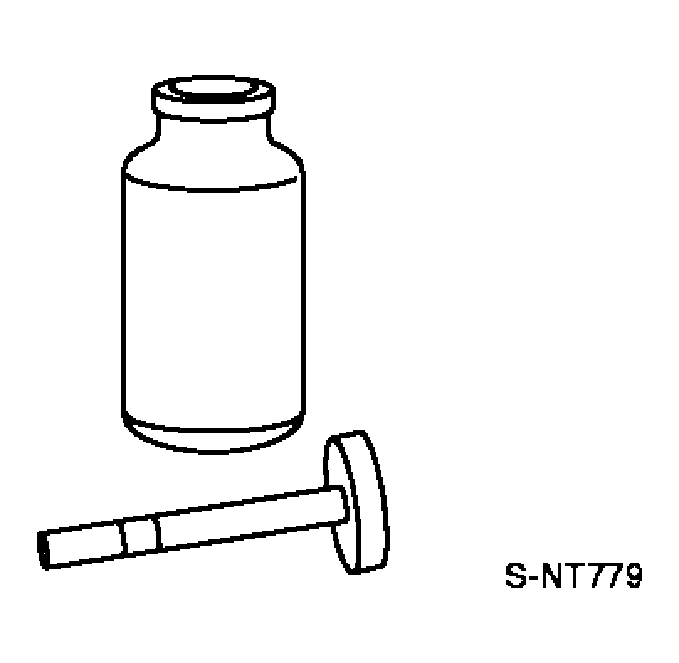

| Oxygen sensor thread cleaner i.e.: (J-43897-18) (J-43897-12) |
Reconditioning the exhaust system threads before installing a new oxygen sensor. Use with anti-seize lubricant shown below. a: 18 mm diameter with pitch 1.5 mm for Zirconia Oxygen Sensor b: 12 mm diameter with pitch 1.25 mm for Titania Oxygen Sensor |
|
| Anti-seize lubricant i.e.: (Permatex™ 133AR or equivalent meeting MIL specification MIL-A-907) | Lubricating oxygen sensor thread cleaning tool when reconditioning exhaust system threads. | |
