System - Basic Engine Control System

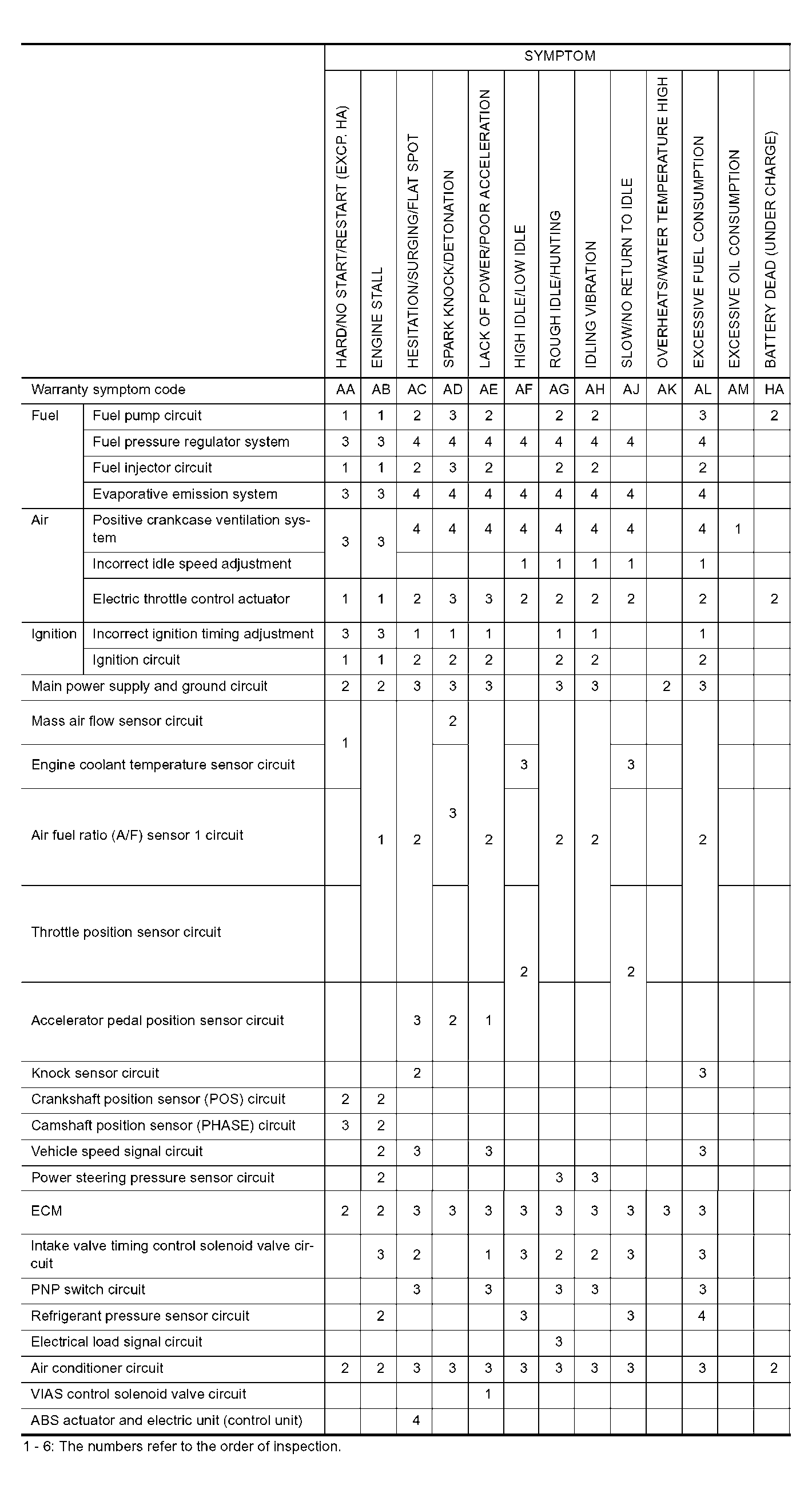

Fig 1: Symptom Matrix Chart (System - Basic Engine Control System)

Courtesy of NISSAN MOTOR CO., U.S.A.
