Overall Sequence: Notes

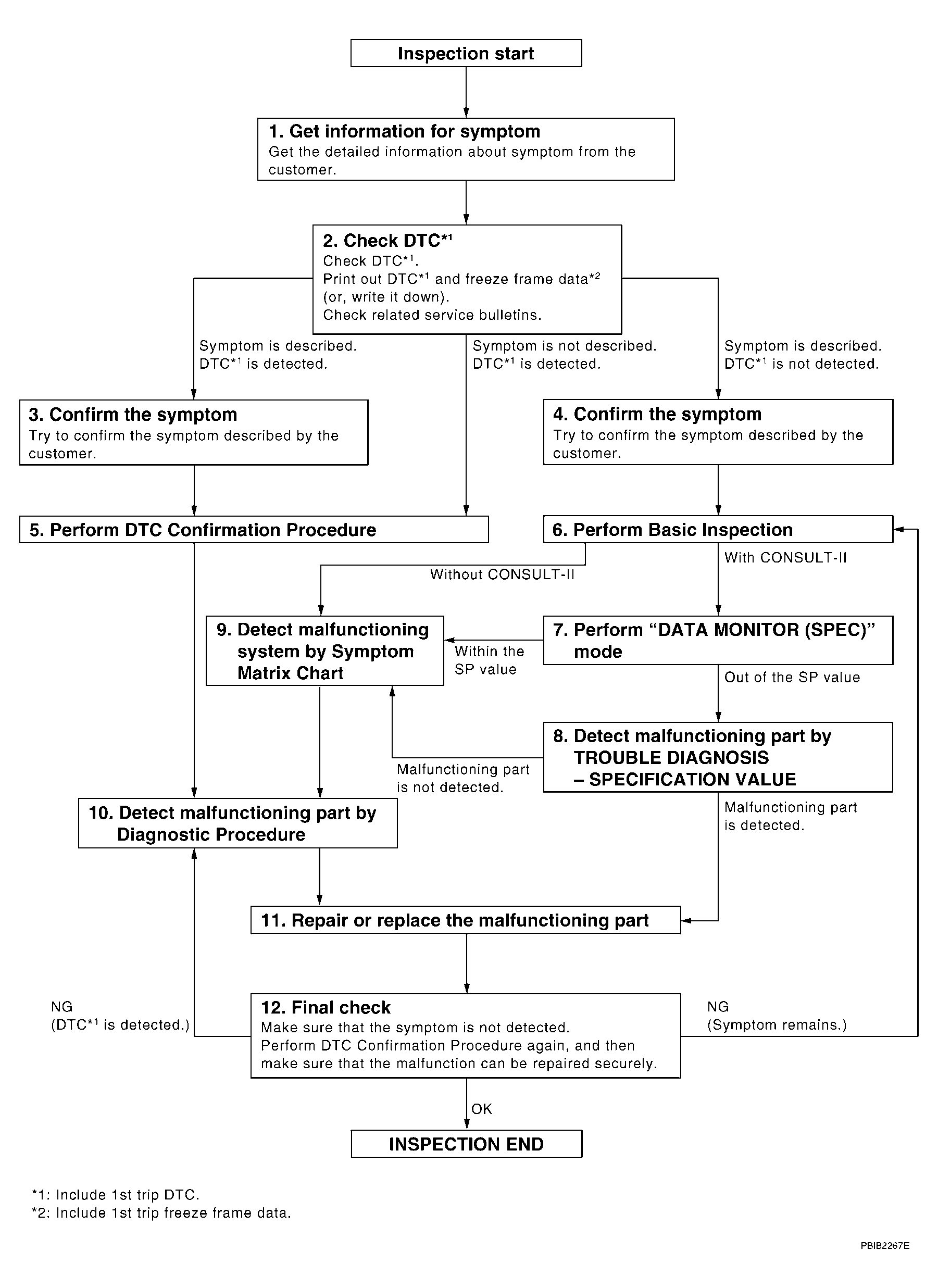

Fig 1: Identifying Work Flow Overall Sequence

G04143193

Courtesy of NISSAN MOTOR CO., U.S.A.
