ASCD Indicator: Wiring Diagram

For PG-POWER references, see SYSTEM WIRING DIAGRAMS (M35) or SYSTEM WIRING DIAGRAMS (M45).

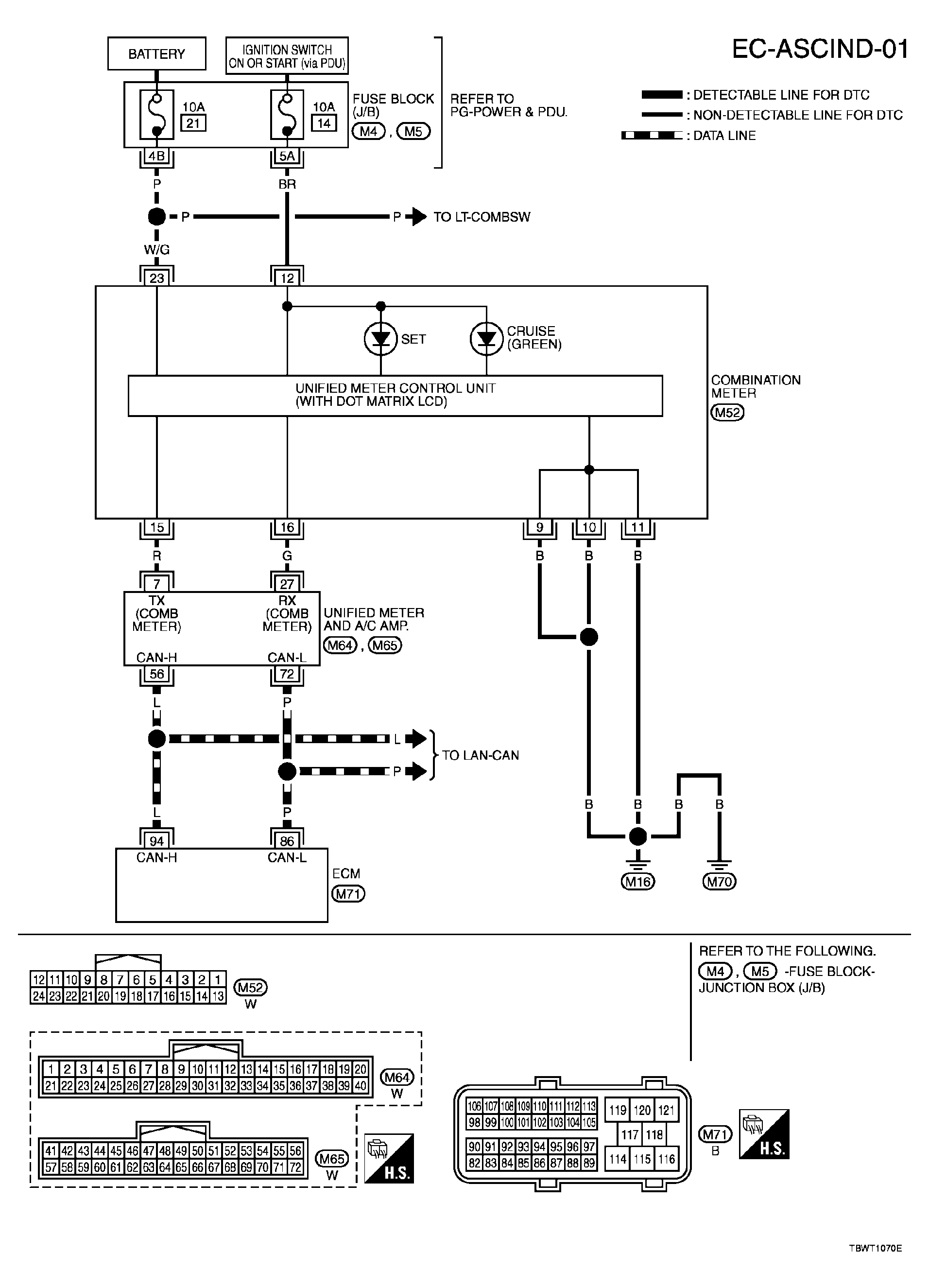

Fig 1: Wiring Diagram - EC-ASCIND-01
G04144032Courtesy of NISSAN MOTOR CO., U.S.A.
