Check On/Off Switch Operation

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine. Then, check that the following operations are performed correctly.
  2. CRUISE lamp (green) illuminates and ICC system indicator goes off when ON/OFF switch is pressed ON for more than 1.5 seconds. The CRUISE lamp goes off when ON/OFF switch is turned to OFF.
  3. Turn off the ignition switch while ON/OFF switch is ON. Turn the ignition switch back to ON and confirm that CRUISE lamp is OFF.

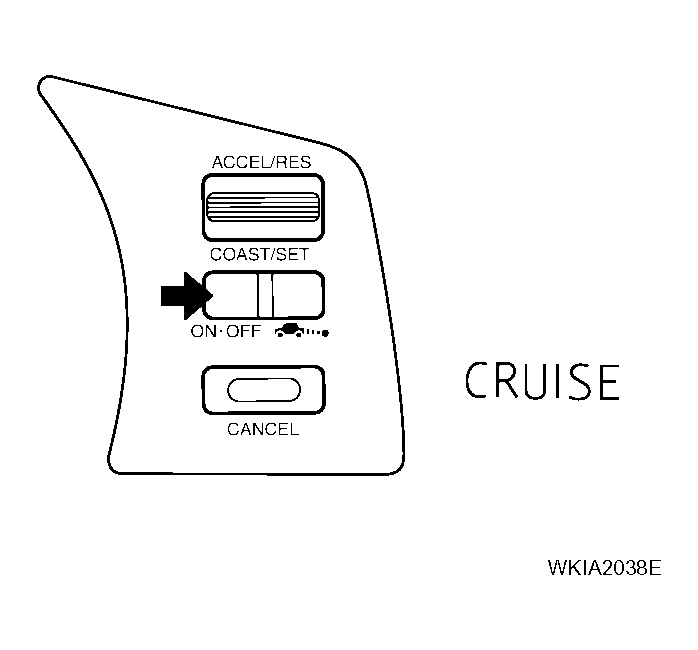

    Fig 1: Identifying ON/OFF Switch
    G04137113Courtesy of NISSAN MOTOR CO., U.S.A.
