Removal and Installation

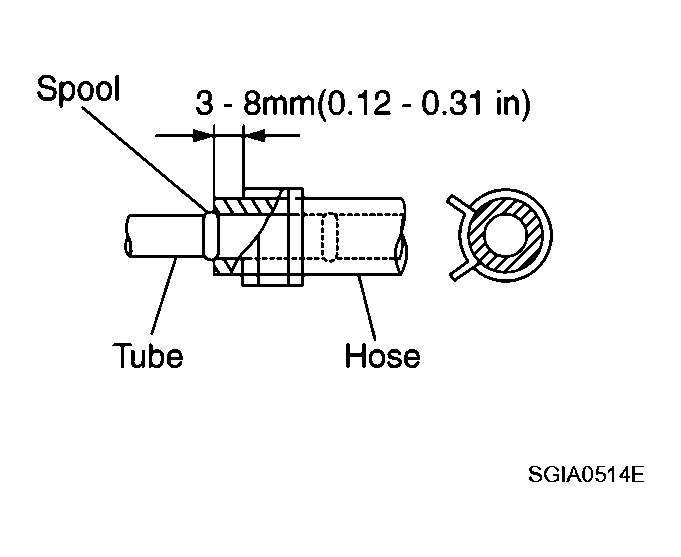

Insert hose securely until it contacts tube spool.
CAUTION: Do not apply fluid.

Fig 1: Inserting Hose Into Tube Spool
Courtesy of NISSAN MOTOR CO., U.S.A.

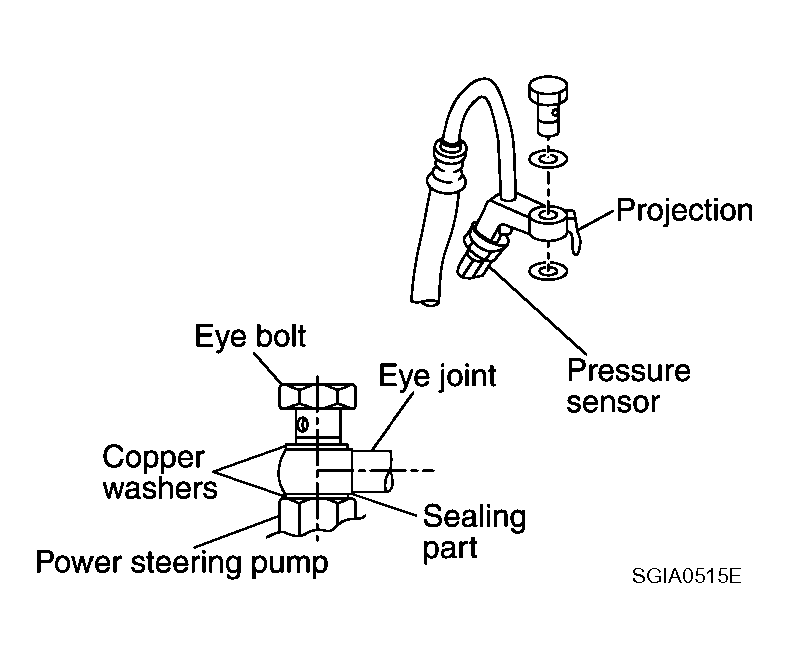

Install eye-bolt with eye-joint (assembled to high-pressure hose) protrusion facing with pump side cutout, and then tighten it to the specified torque after tightening by hand.

Fig 2: Installing Eye-Bolt With Eye-Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
