During Shift Change

The necessary and adequate line pressure for shift change is set. For this reason, line pressure pattern setting corresponds to input torque and gearshift selection. Also, line pressure characteristic is according to engine speed, during engine brake operation.

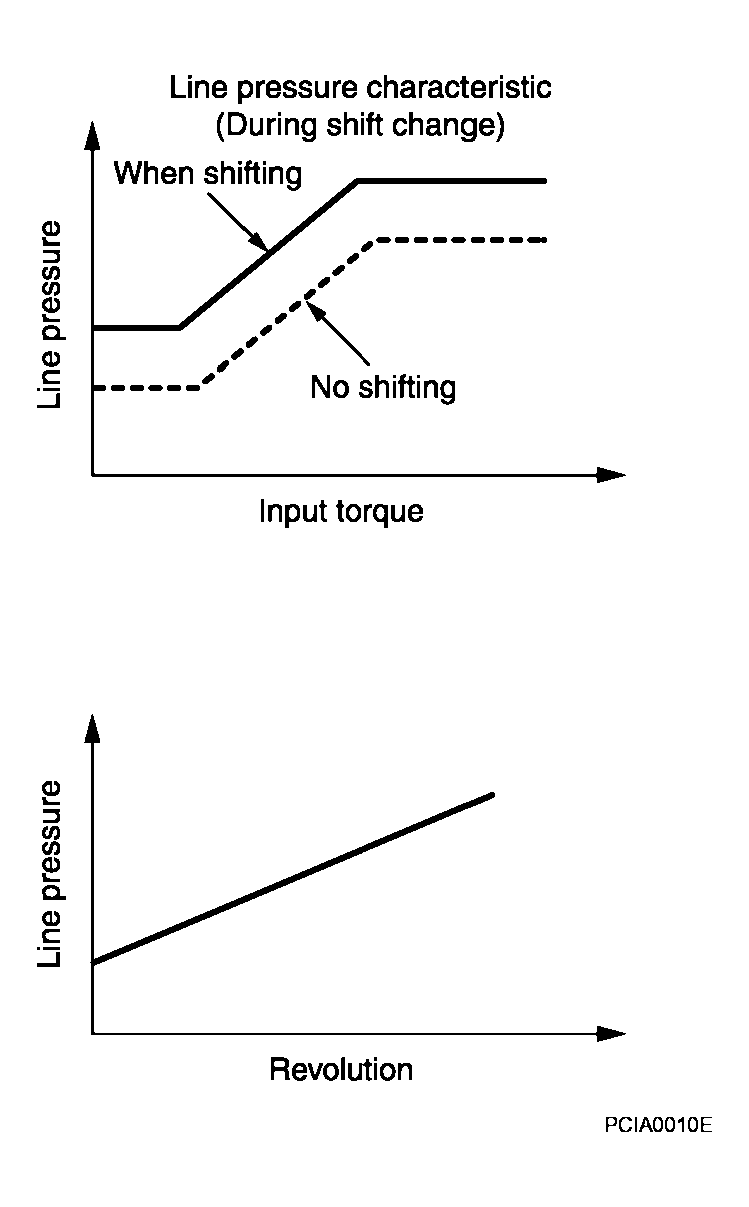

Fig 1: Line Pressure Characteristic During Shift Change
G04139111Courtesy of NISSAN MOTOR CO., U.S.A.
