Removal And Installation: Components

VQ35DE models

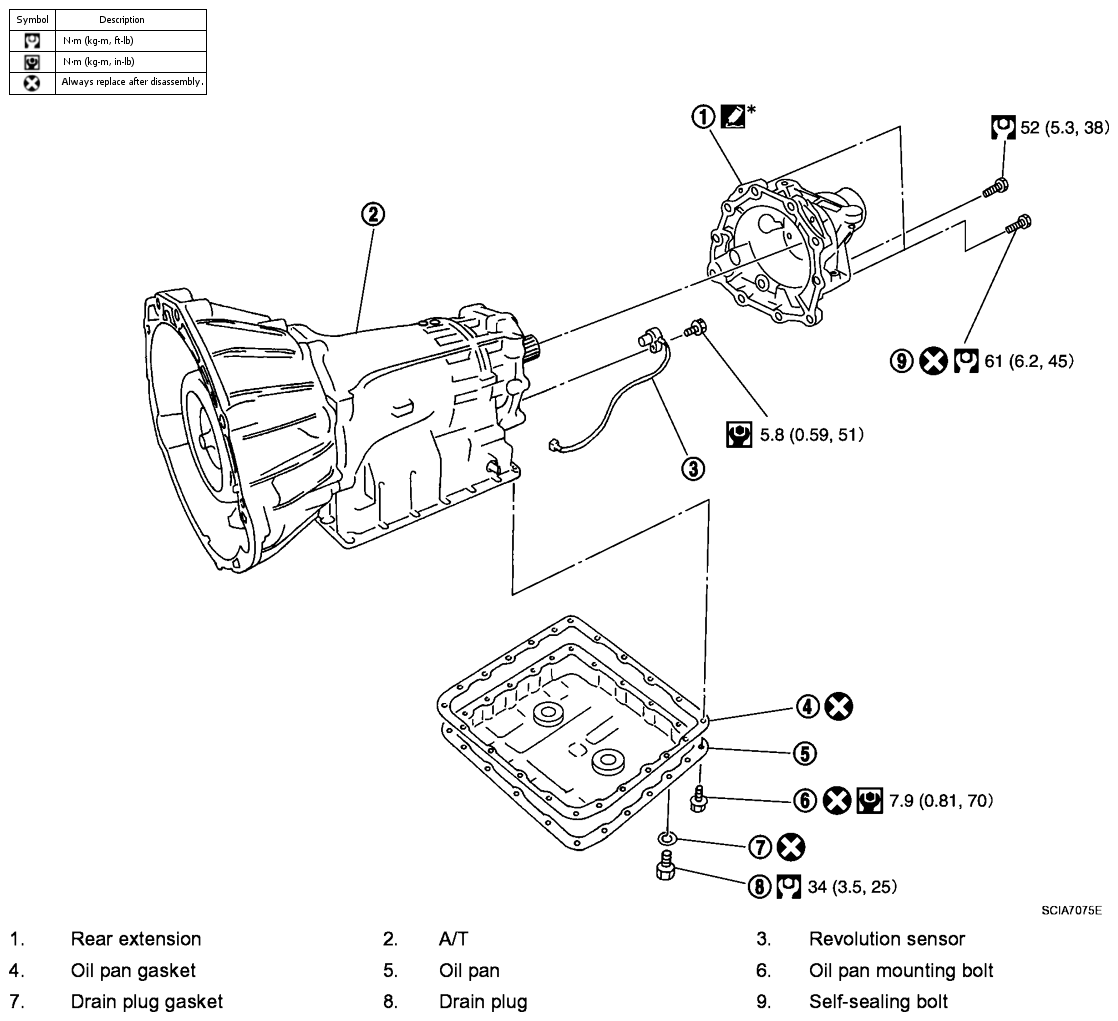

Fig 1: Revolution Sensor Replacement Components With Torque Specifications (2WD Models Only) -- VQ35DE Models
G04139375Courtesy of NISSAN MOTOR CO., U.S.A.

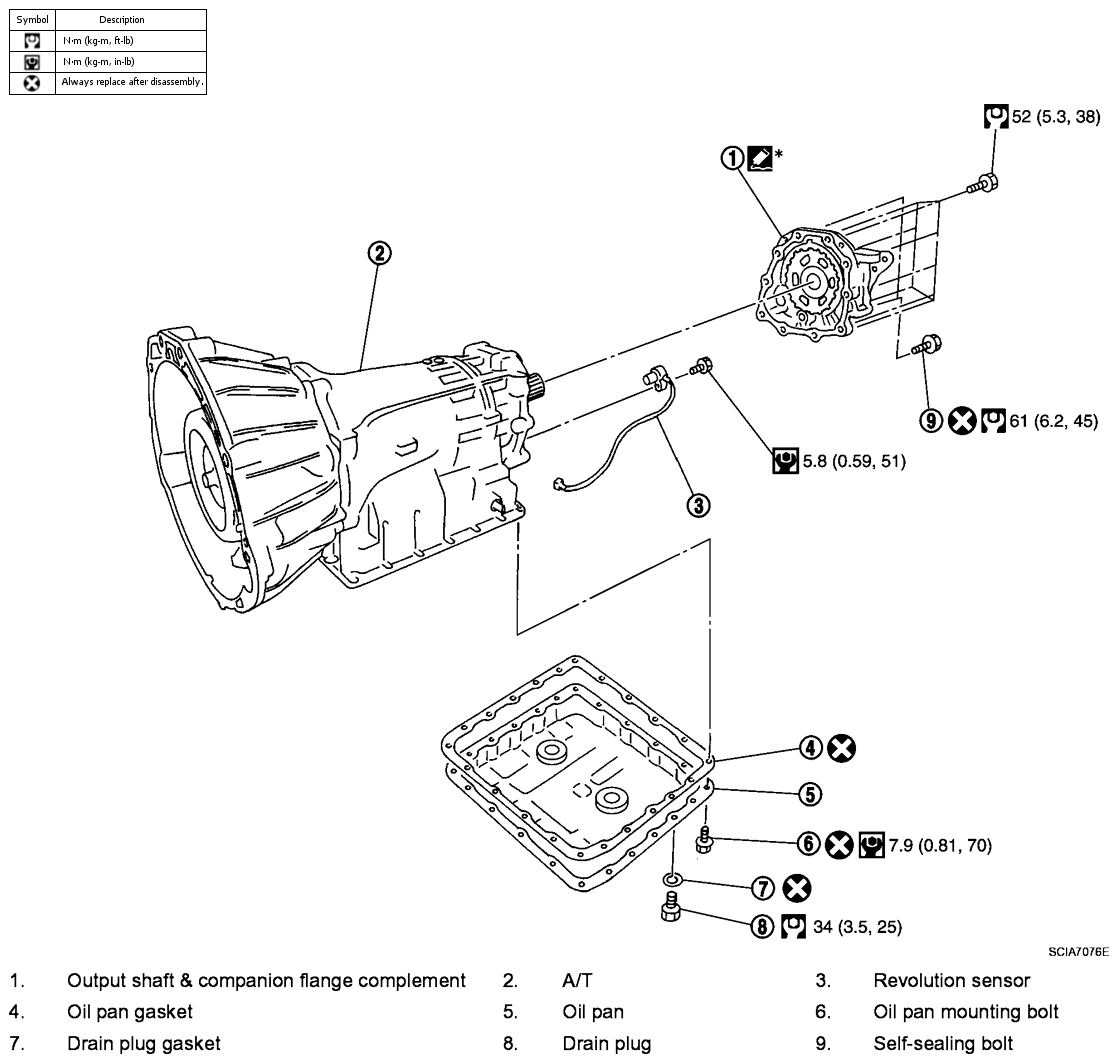

Fig 2: Revolution Sensor Replacement Components With Torque Specifications (2WD Models Only) -- VK45DE Models
G04139376Courtesy of NISSAN MOTOR CO., U.S.A.
