Automatic Transmission: Overhaul: Components

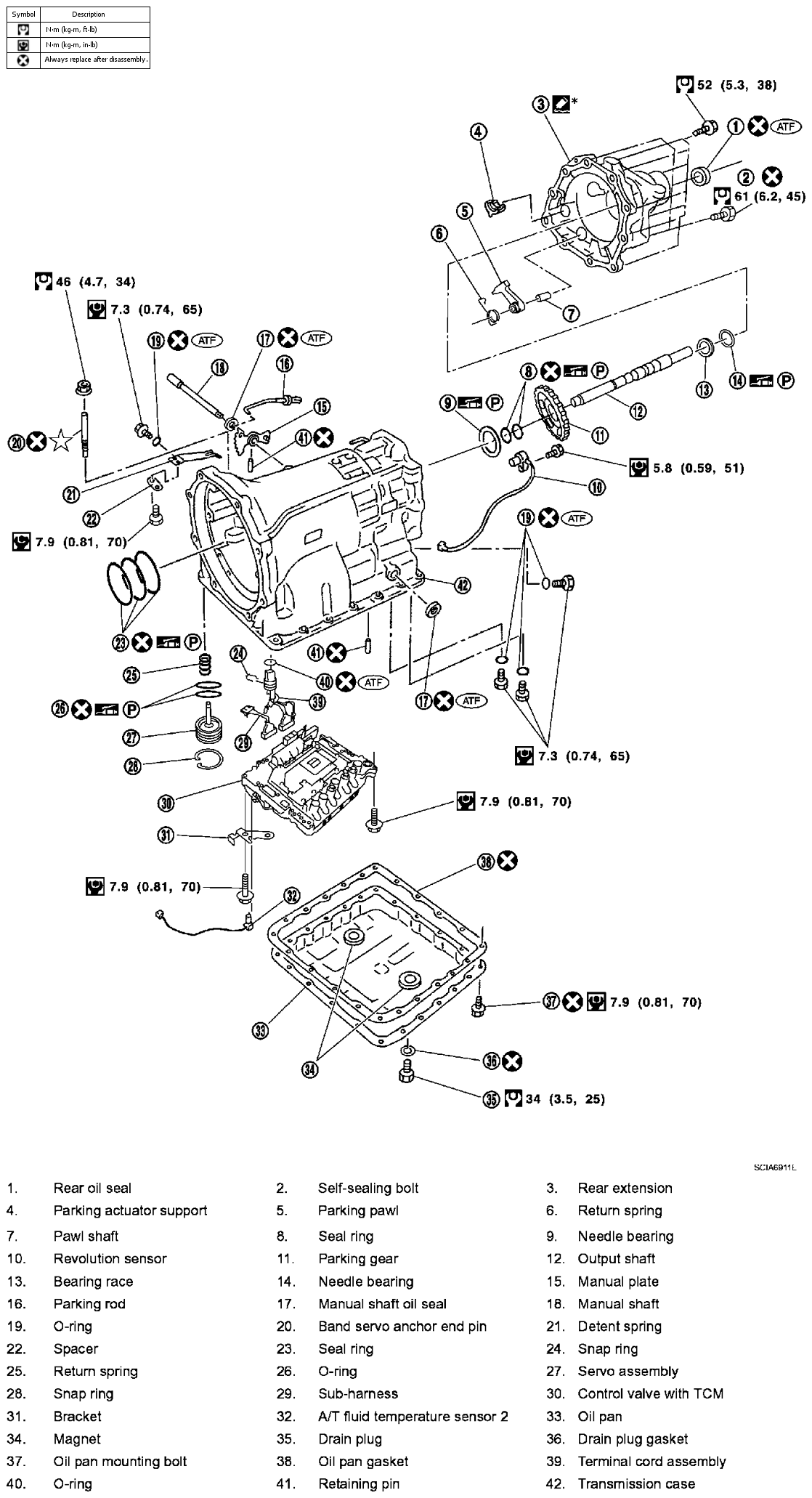

Fig 1: Exploded View Of Transmission Assembly Components With Torque Specifications (VQ35DE Models) (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

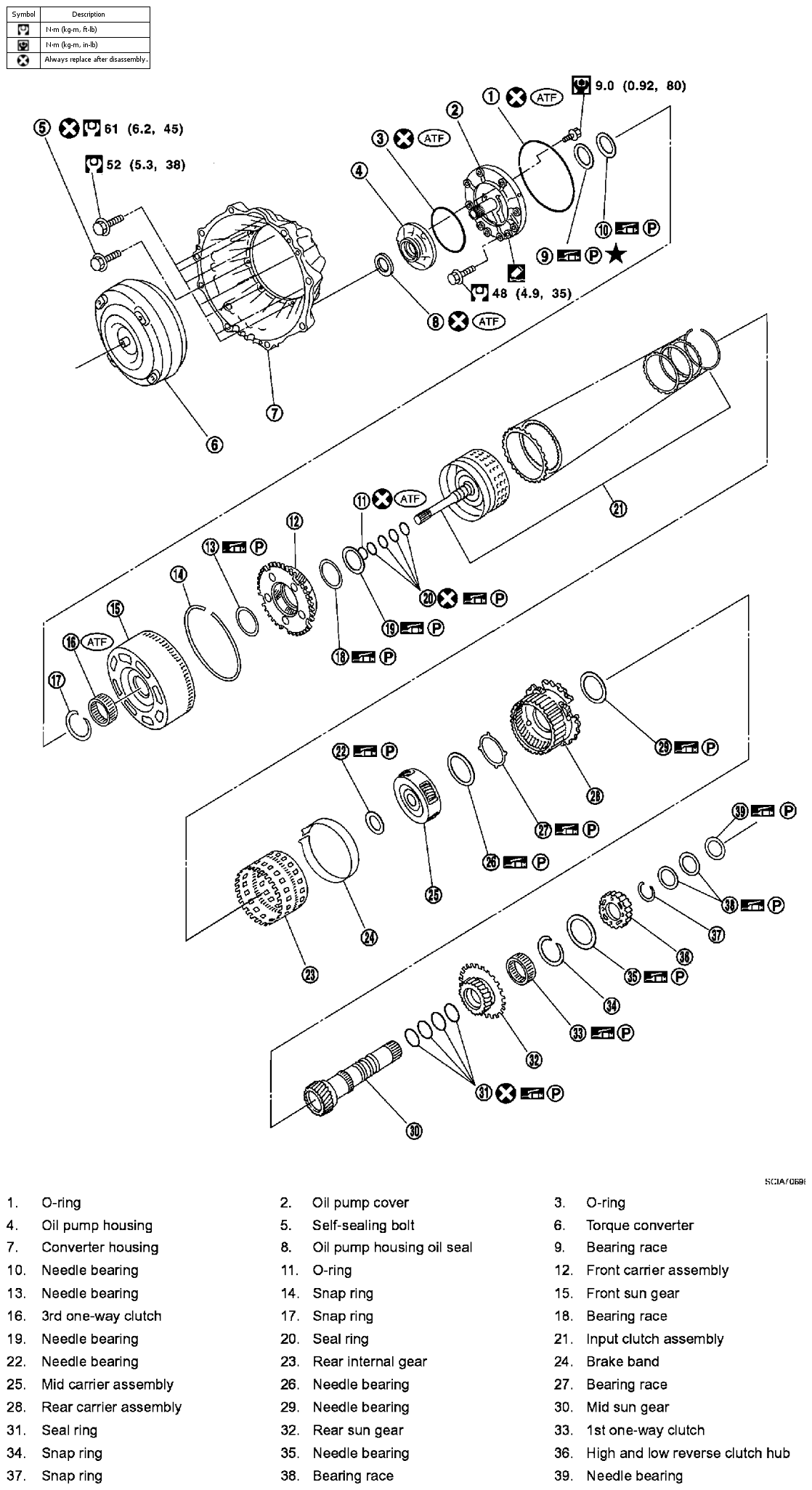

Fig 2: Exploded View Of Transmission Assembly Components With Torque Specifications (VK45DE Models) (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

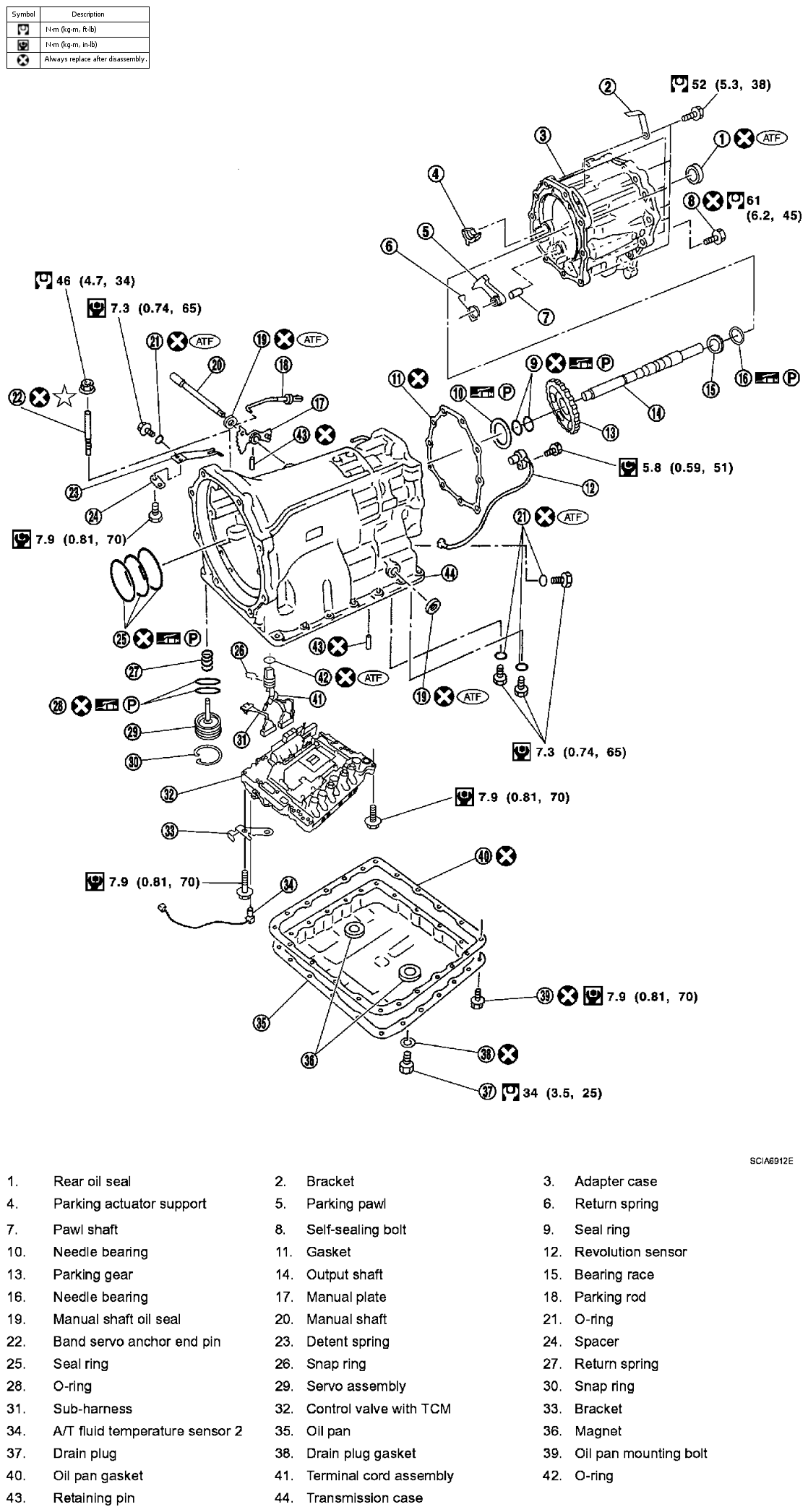

Fig 3: Exploded View Of Transmission Assembly Components (VQ35DE Models) (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

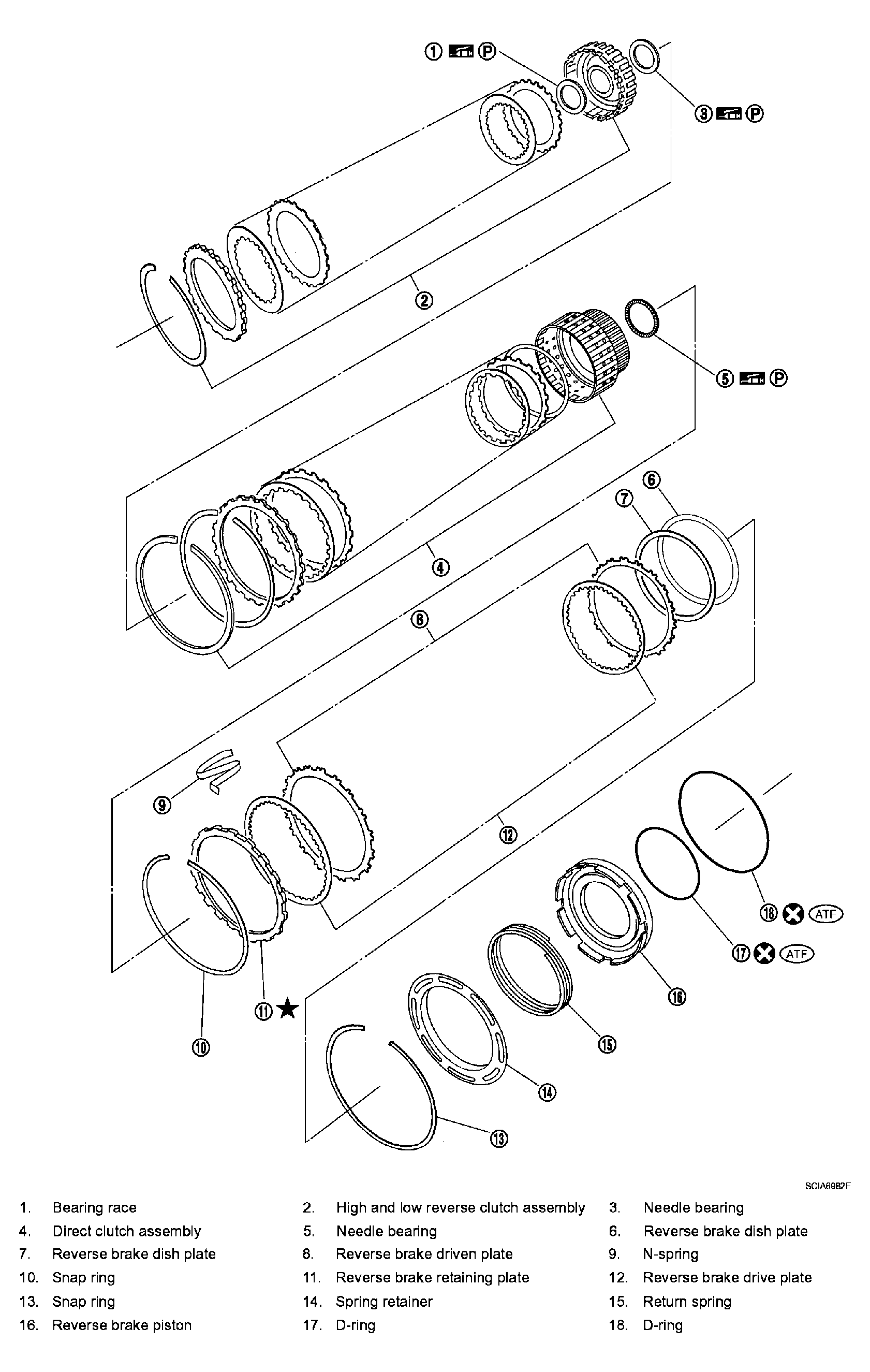

Fig 4: Exploded View Of Transmission Assembly Components (VK45DE Models) (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS "

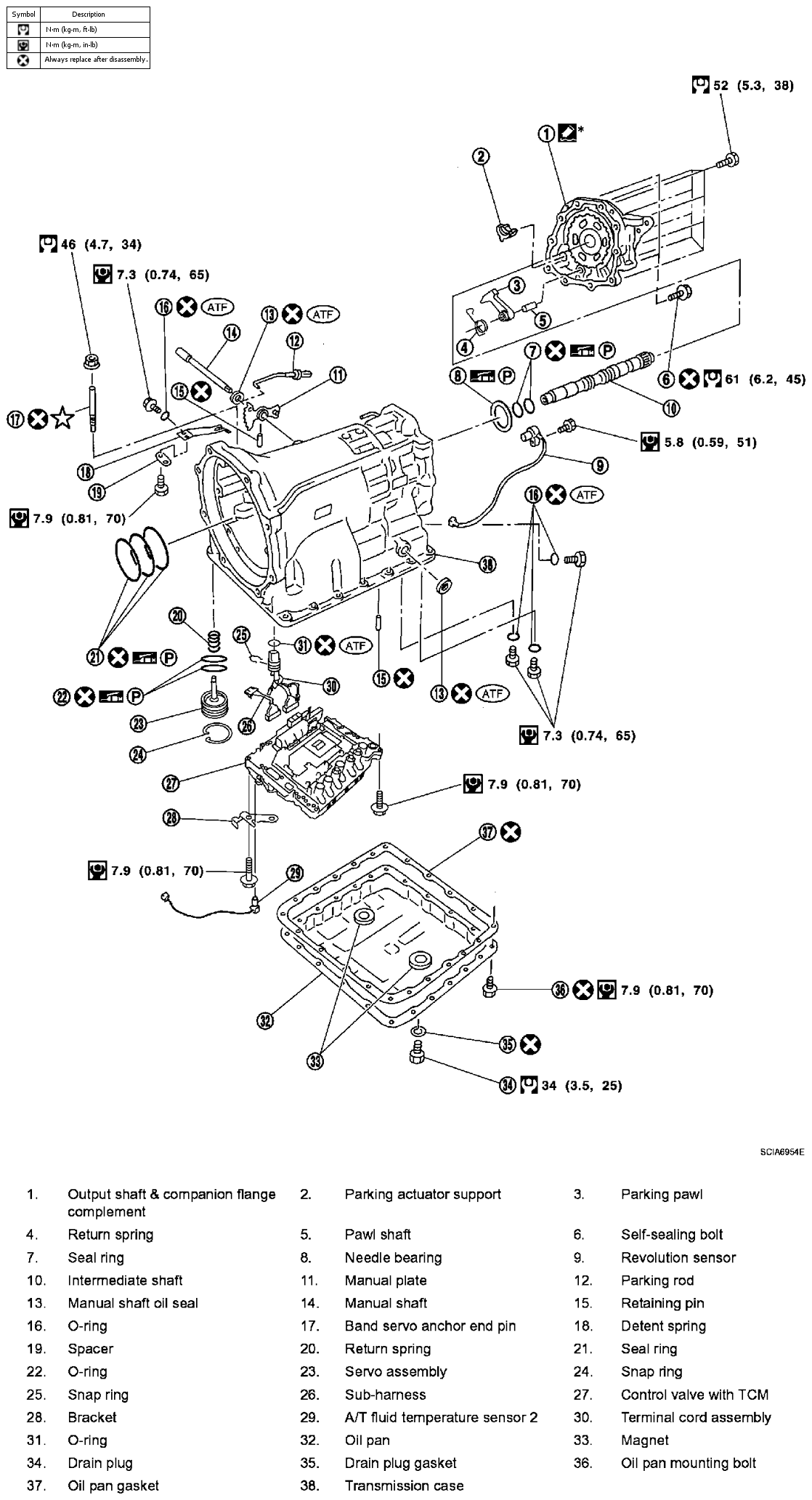

Fig 5: Exploded View Of Transmission Assembly Components With Torque Specifications (VQ35DE Models - 2WD)

Courtesy of NISSAN MOTOR CO., U.S.A.

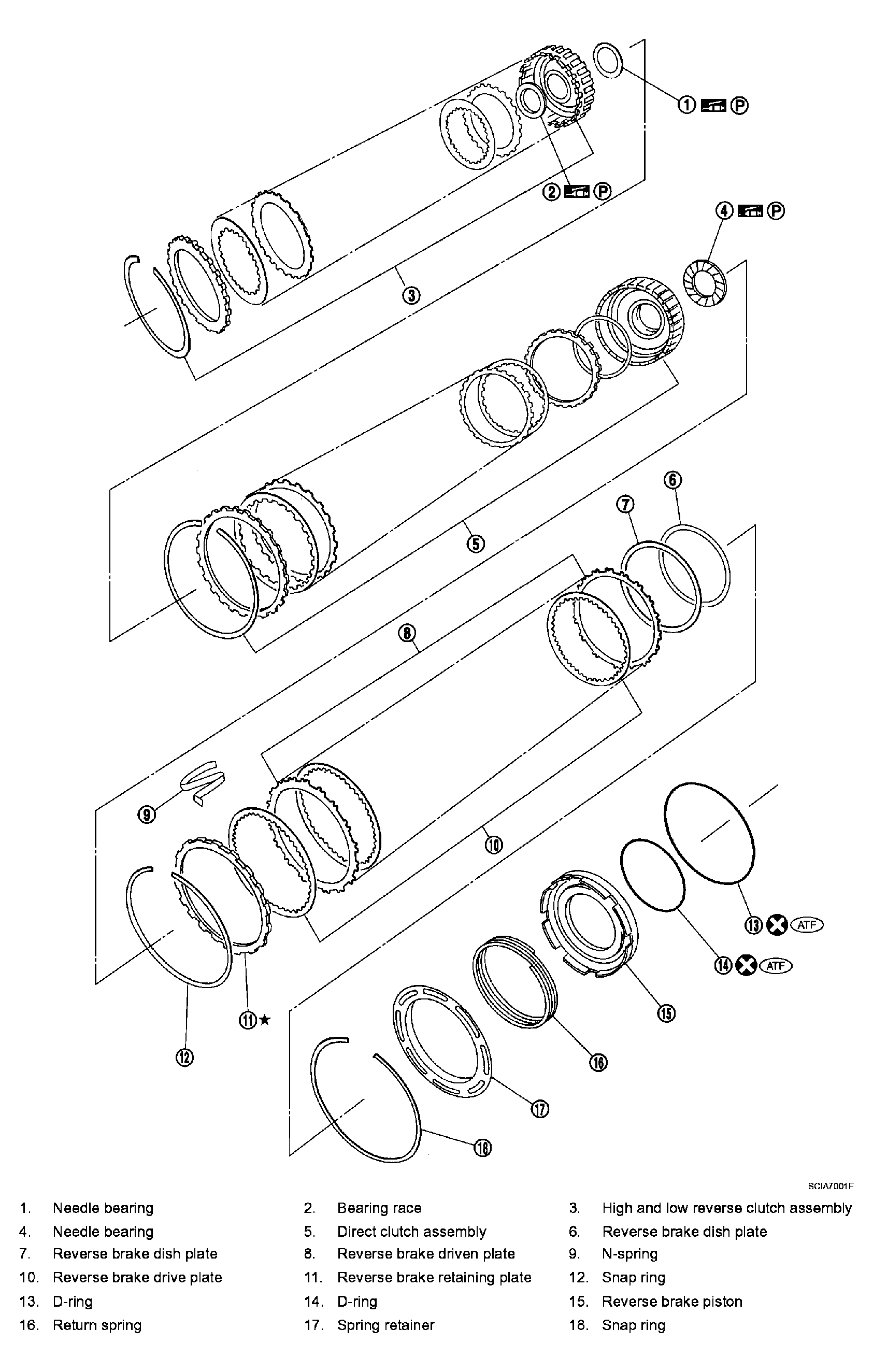

Fig 6: Exploded View Of Transmission Assembly Components With Torque Specifications (VK45DE Models - 2WD)

Courtesy of NISSAN MOTOR CO., U.S.A.

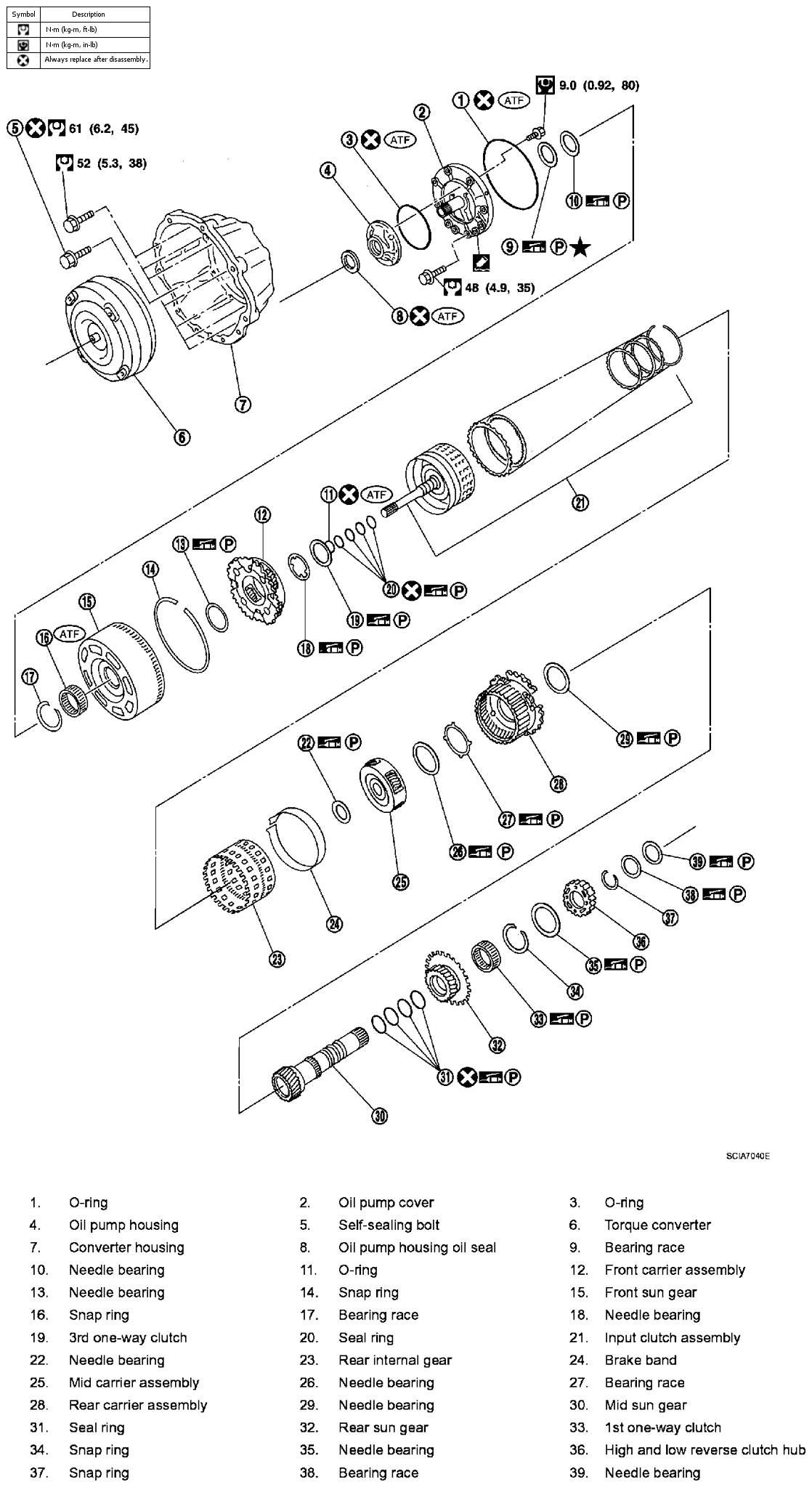

Fig 7: Exploded View Of Transmission Assembly Components With Torque Specifications (AWD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".
