Direct Clutch: Assembly: Overview

Install drive plates, driven plates, dish plate and retaining plates in direct clutch drum.
CAUTION: Take care with the order of plates.

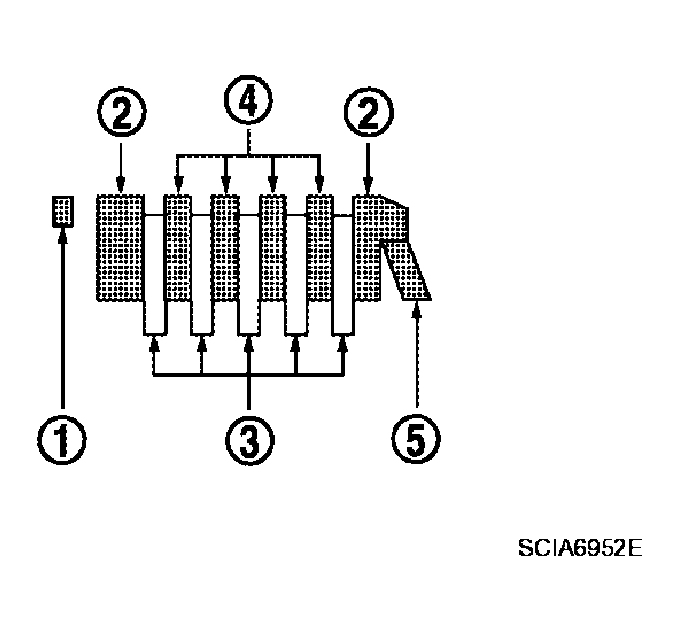

- VQ35DE models
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Dish plate (5)
- Drive plate/Driven plate: 5/4
Fig 1: Identifying Drive Plates, Driven Plates, Dish Plate And Retaining Plates In Direct Clutch Drum (VQ35DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

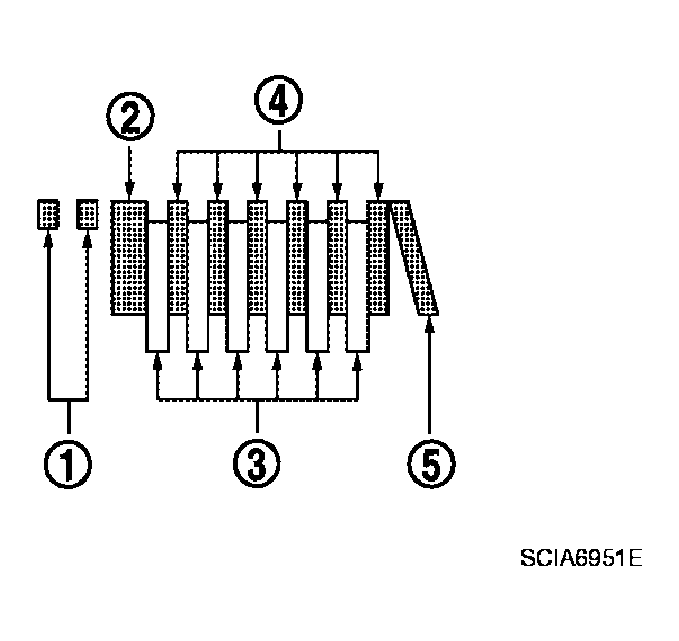

- VK45DE models
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Dish plate (5)
- Drive plate/Driven plate: 6/6
Fig 2: Identifying Drive Plates, Driven Plates, Dish Plate And Retaining Plates In Direct Clutch Drum (VK45DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a flat-bladed screwdriver, install snap ring in direct clutch drum.

Fig 3: Identifying Direct Clutch Drum Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
