CONSULT-II Function (MULTI AV): Version

Displays version of each unit connected to the AV and NAVI control unit.

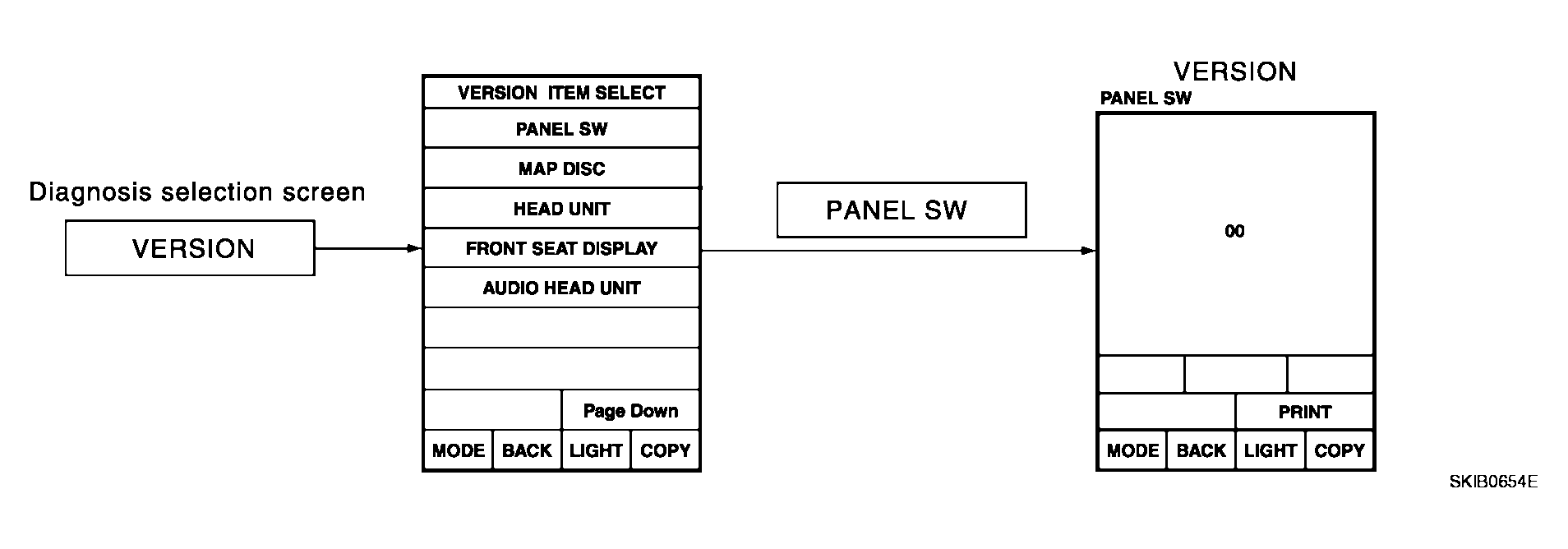

Fig 1: Identifying Display Version AV And NAVI Control Unit
G04131769Courtesy of NISSAN MOTOR CO., U.S.A.
VERSION DISPLAY AND REMARKS

Version display Remarks
"PANEL SW" Multifunction switch
"MAP DISK" DVD-ROM
"HEAD UNIT" AV and NAVI control unit
"FRONT SEAT DISPLAY" Display
"AUDIO HEAD UNIT" Audio unit
"AIR COMP RECEIVER" Low tire pressure warning control unit
"BOSE AMP" BOSE speaker amp.
"VOICE UNIT" Voice activated control module
