Encoder Circuit Check

  1. CHECK ENCODER POWER SUPPLY

    Check voltage between auto trunk motor connector B109 terminal 5 and ground.

    5 (L/R) - Ground : Battery voltage

    OK or NG

    • OK : GO TO  3.
    • NG : GO TO 2.

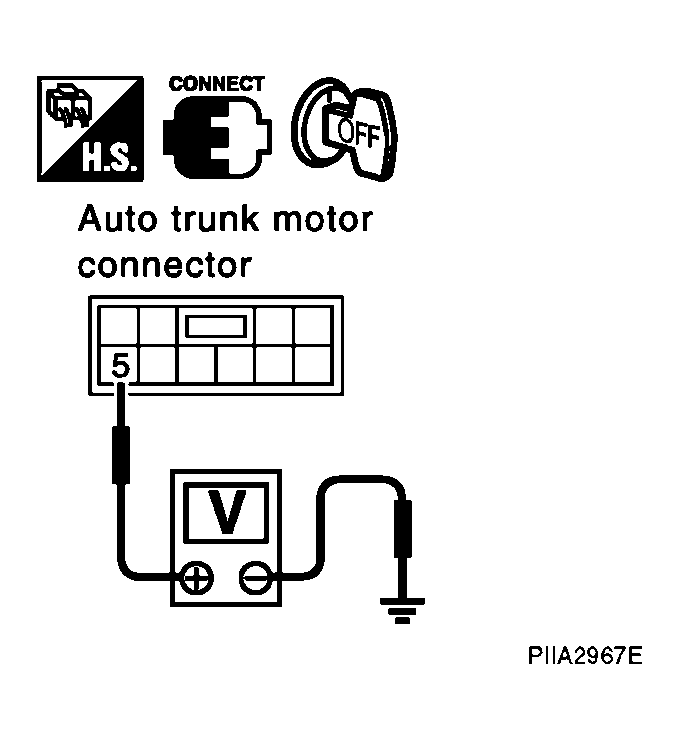

      Fig 1: Checking Voltage Between Auto Trunk Motor Connector B109 Terminal 5 And Ground
      G04129570Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect auto trunk control unit and auto trunk motor connector.
    3. Check continuity between auto trunk control unit connector B110 terminal 14 and auto trunk motor connector B109 terminal 5.

      14 (L/R) - 5 (L/R) : Continuity should exist.

    4. Check continuity between auto trunk control unit connector B110 terminal 14 and ground.

      14 (L/R) - Ground : Continuity should not exist.

    OK or NG

    • OK : Replace auto trunk control unit.
    • NG : Repair or replace harness.

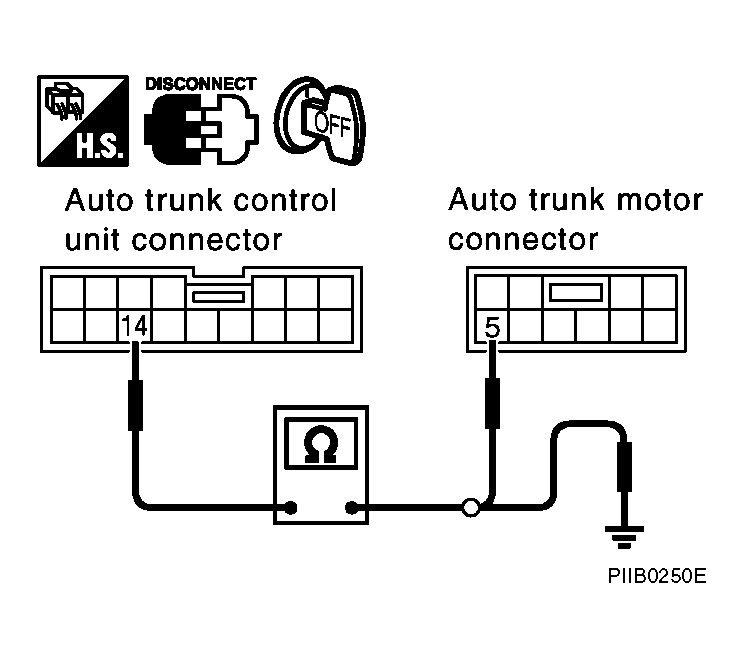

      Fig 2: Checking Continuity Between Auto Trunk Control Unit Connector B110 Terminal 14 And Ground
      G04129571Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK ENCODER GROUND
    1. Turn ignition switch OFF.
    2. Disconnect auto trunk motor connector.
    3. Check continuity between auto trunk motor connector B109 terminal 9 and ground.

      9 (R/W) - Ground : Continuity should exist.

    OK or NG

    • OK : GO TO  5.
    • NG : GO TO 4.

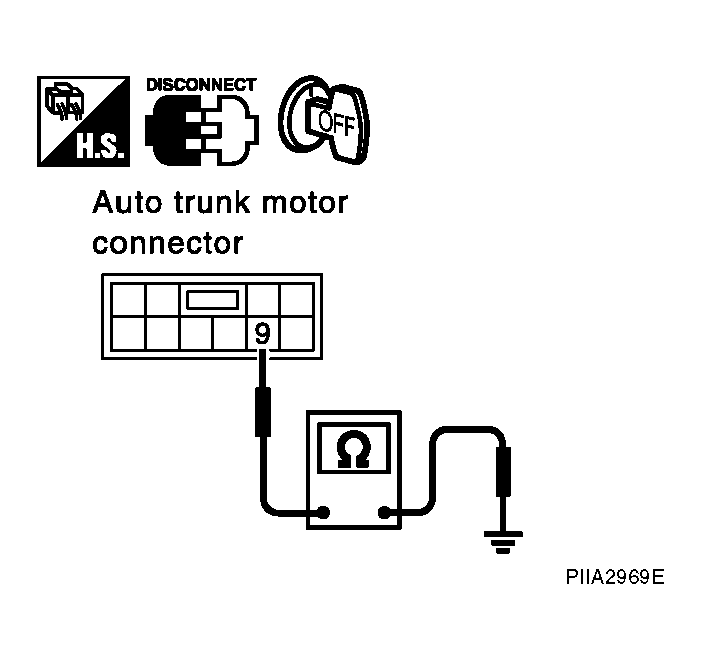

      Fig 3: Checking Continuity Between Auto Trunk Motor Connector B109 Terminal 9 And Ground
      G04129572Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK ENCODER GROUND CIRCUIT
    1. Disconnect auto trunk control unit.
    2. Check continuity between auto trunk control unit connector B110 terminal 16 and auto trunk motor connector B109 terminal 9.

      16 (R/W) - 9 (R/W) : Continuity should exist.

    3. Check continuity between auto trunk control unit connector B110 terminal 16 and ground.

      16 (R/W) - Ground : Continuity should not exist.

    OK or NG

    • OK : Replace auto trunk control unit.
    • NG : Repair or replace harness.

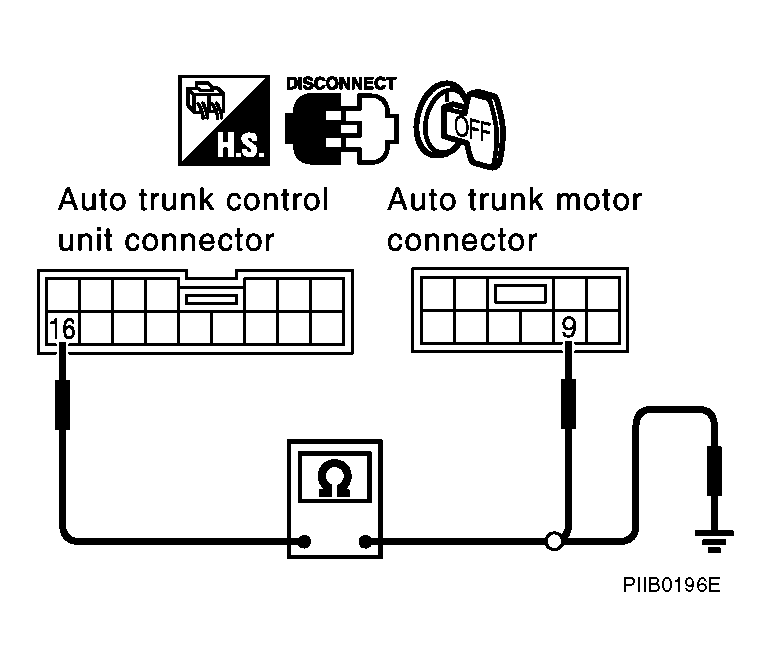

      Fig 4: Checking Continuity Between Auto Trunk Control Unit Connector B110 Terminal 16 And Ground
      G04129573Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK ENCODER SIGNAL
    1. Connect auto trunk motor connector.
    2. Turn ignition switch ON.
    3. Check the signal between auto trunk control unit connector B110 terminal 15 and ground with oscilloscope.
      CONNECTOR SIGNAL CHART

      Connector Terminals (Wire color) Condition Signal (Reference value)
      (+) (-)
      B110 15 (Y) Ground trunk motor operation
      G04077331Courtesy of NISSAN MOTOR CO., U.S.A.

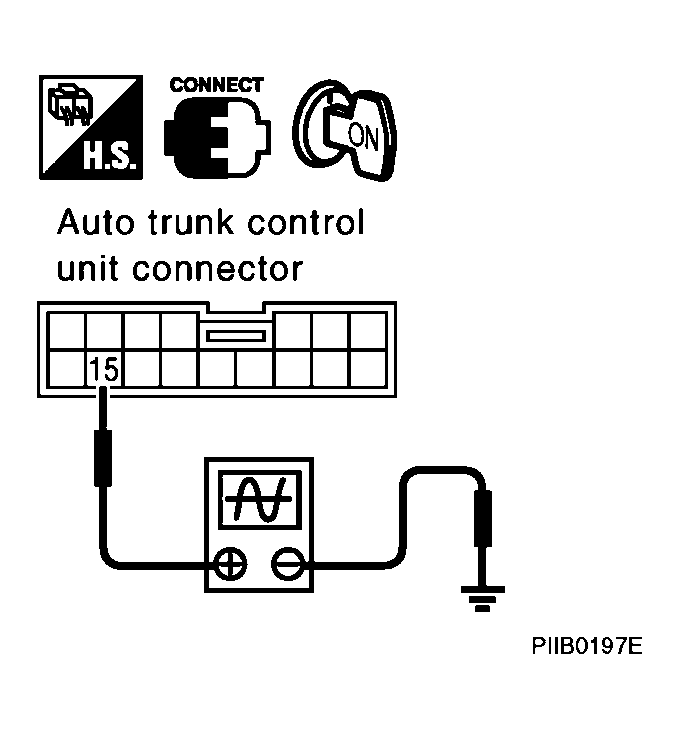

      Fig 5: Checking Signal Between Auto Trunk Control Unit Connector B110 Terminal 15 And Ground
      G04129575Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : Encoder function is OK.
    • NG : GO TO 6.
  6. CHECK ENCODER CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect auto trunk control unit and auto trunk motor connector.
    3. Check continuity between auto trunk control unit connector B110 terminal 15 and auto trunk motor connector B109 terminal 8.

      15 (Y) - 8 (Y) : Continuity should exist.

    4. Check continuity between auto trunk control unit connector B110 terminal 15 and ground.

      15 (Y) - Ground : Continuity should not exist.

    OK or NG

    • OK : Replace auto trunk motor.
    • NG : Repair or replace harness.

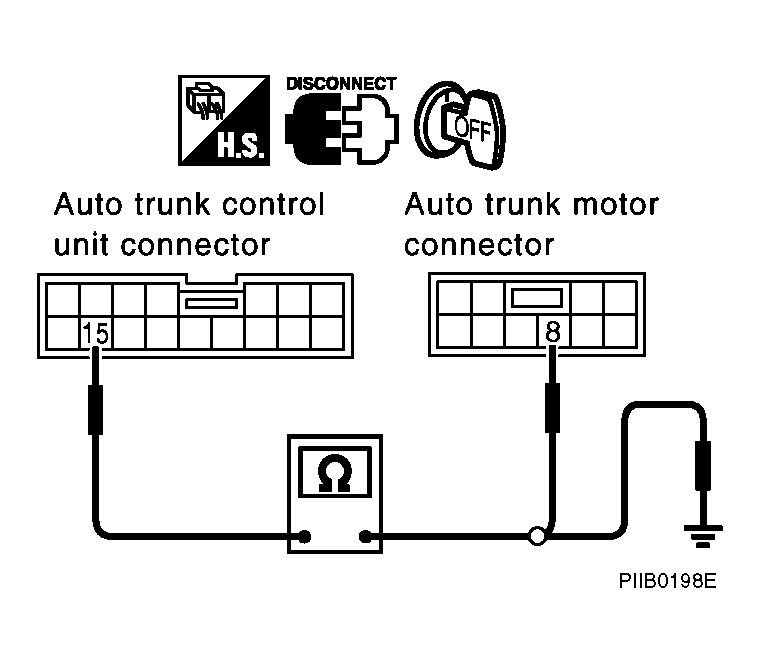

      Fig 6: Checking Continuity Between Auto Trunk Control Unit Connector B110 Terminal 15 And Ground
      G04129576Courtesy of NISSAN MOTOR CO., U.S.A.
