Front Side Member
Work after hoodledge and radiator core support have been removed.

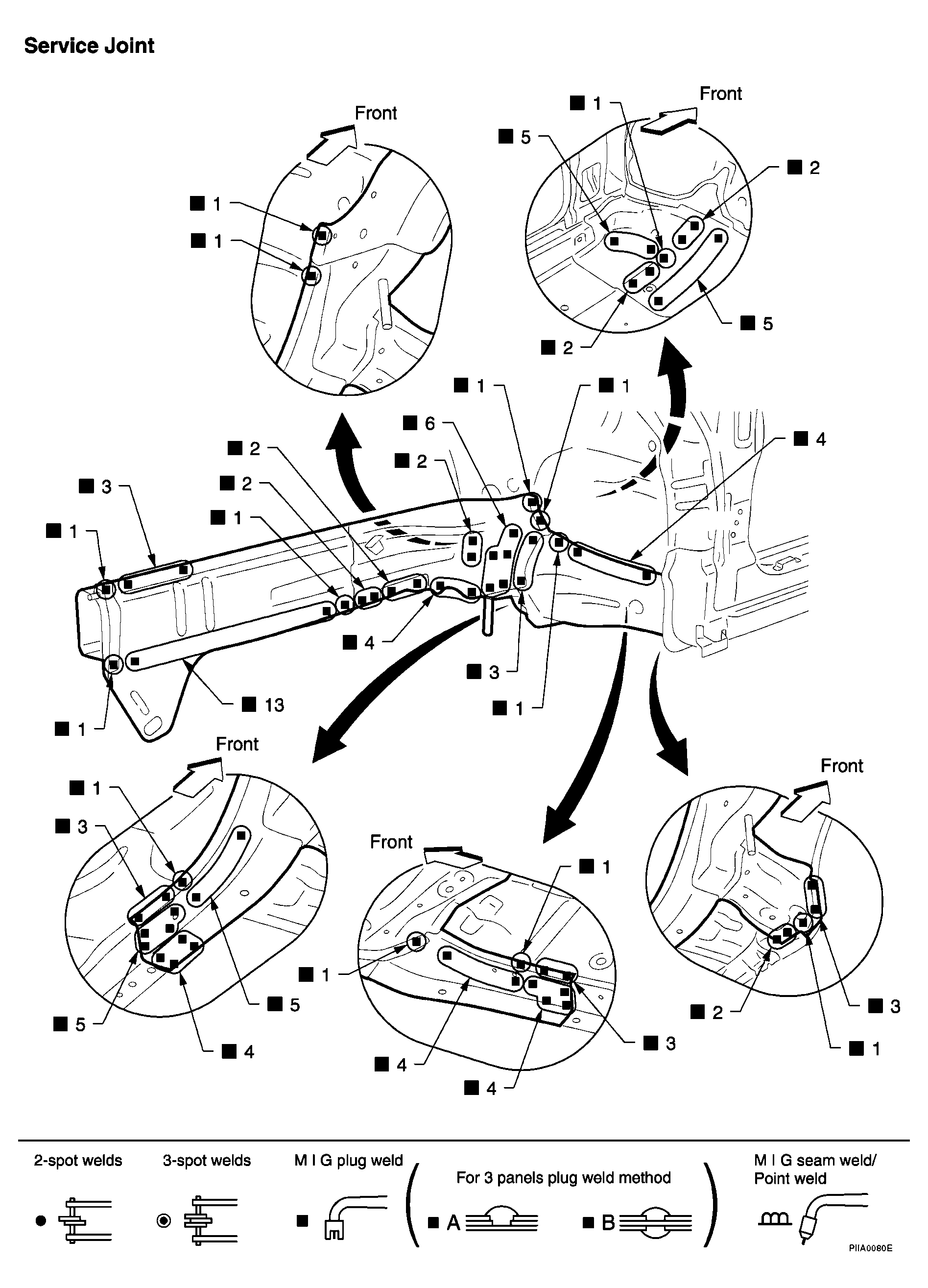

Fig 1: Identifying Front Side Member
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
