Consult-II Basic Operation Procedure

Turn ignition switch "OFF".
Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

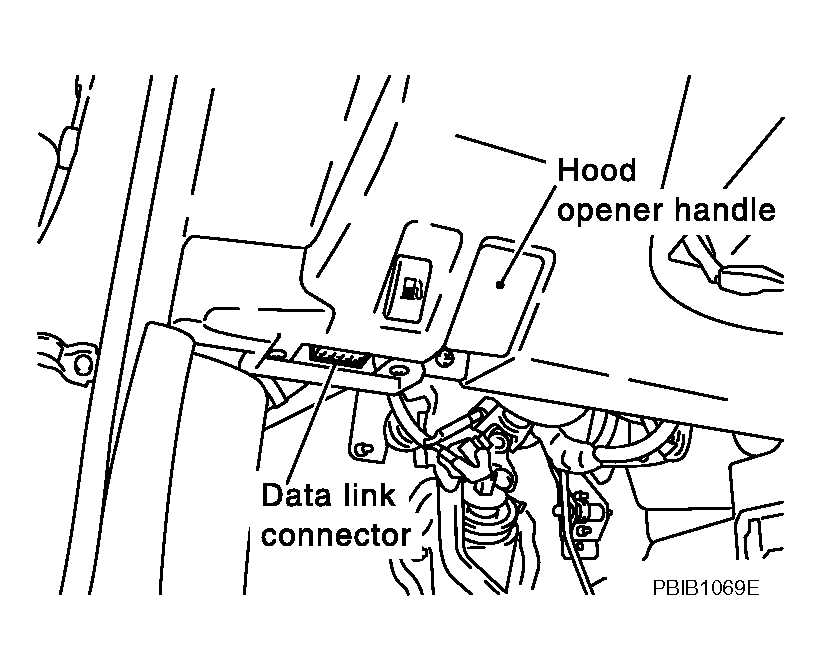

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START(NISSAN BASED VHCL)".

Fig 2: Consult-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS" on the "SELECT SYSTEM" screen.
If "IVMS" is not indicated, "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Consult-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

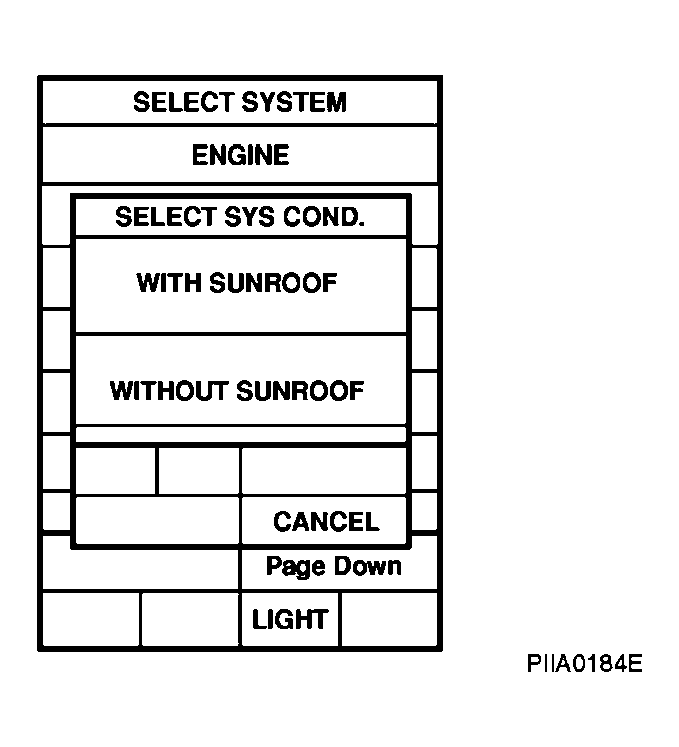

Check the model specification, and touch either "WITH SUNROOF" or "WITHOUT SUNROOF" on the "SELECT SYS COND" screen.
Touch "OK". If the selection is wrong, touch "CANCEL".
Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
