Check Seat Memory Indicator lamp System

  1. CHECK FUNCTION

    With CONSULT-II

    With "MEMORY SW INDCTR" in ACTIVE TEST, Check operation.

    TEST ITEM AND DESCRIPTION

    Test item Description
    MEMORY SW INDCTR The memory switch indicator is lit by receiving the drive signal.

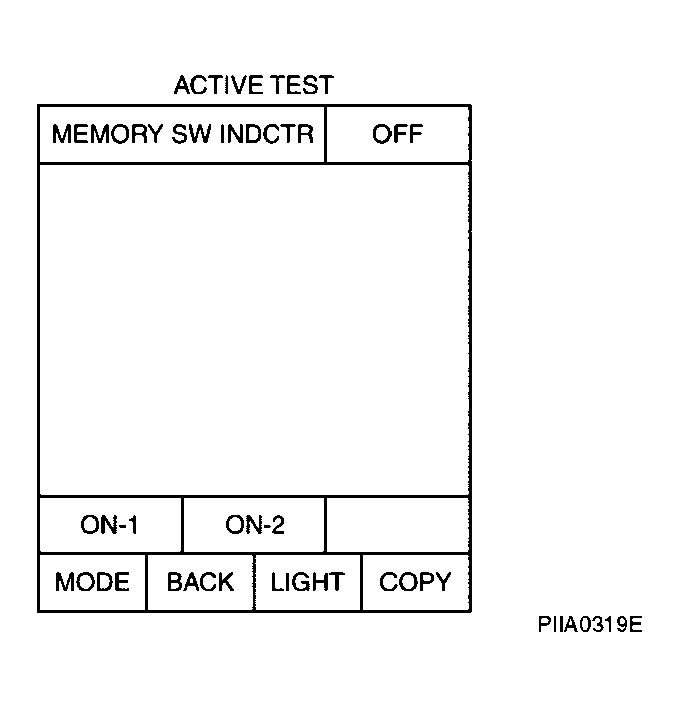

    Fig 1: Display CONSULT II - Active Test Screen
    G04130207Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 2.

    OK or NG

    • OK : System is OK.
    • NG : GO TO 2.
  2. CHECK FUSE

    Check 10A fuse [No.3, located in fuse block (J/B)]

    OK or NG

    • OK : GO TO 2.
    • NG : If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, Refer to "POWER SUPPLY ROUTING ".
  3. CHECK SEAT MEMORY SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect seat memory switch connector.
    3. Check voltage between seat memory switch connector D3 terminal 5 and ground.

      5 (P/L) - Ground : Battery voltage.

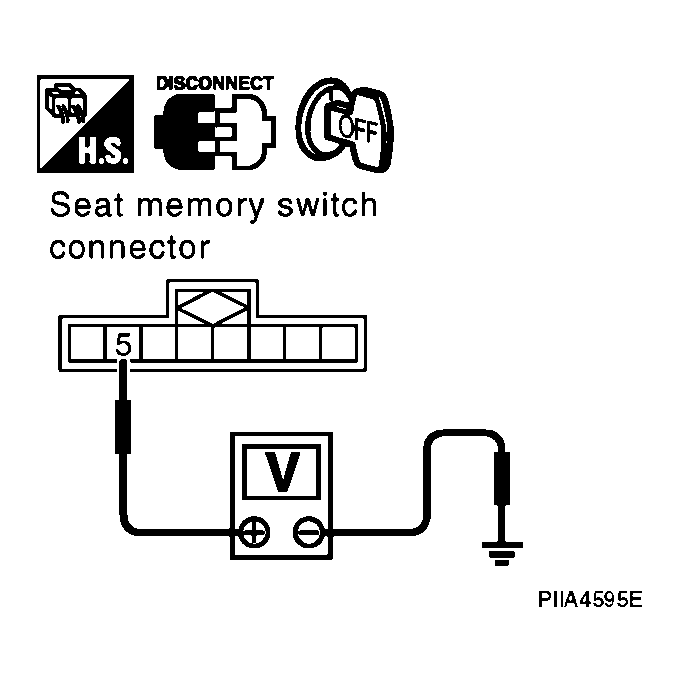

      Fig 2: Identifying Voltage Between Seat Memory Switch Connector D3 Terminal 5 And Ground
      G04130208Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : GO TO 4
    • NG : Repair or replace harness between fuse block (J/B) and seat memory switch.
  4. CHECK HARNESS CONTINUITY
    1. Disconnect BCM connector.
    2. Check continuity between BCM connector M4 terminals 106, 112 and seat memory switch connector D3 terminals 6, 7.

      106 (BR/Y) - 6 (BR/Y) : Continuity should exist.

      112 (L/W) - 7 (L/W) : Continuity should exist.

    3. Check continuity between BCM connector M4 terminals 106, 112 and ground.

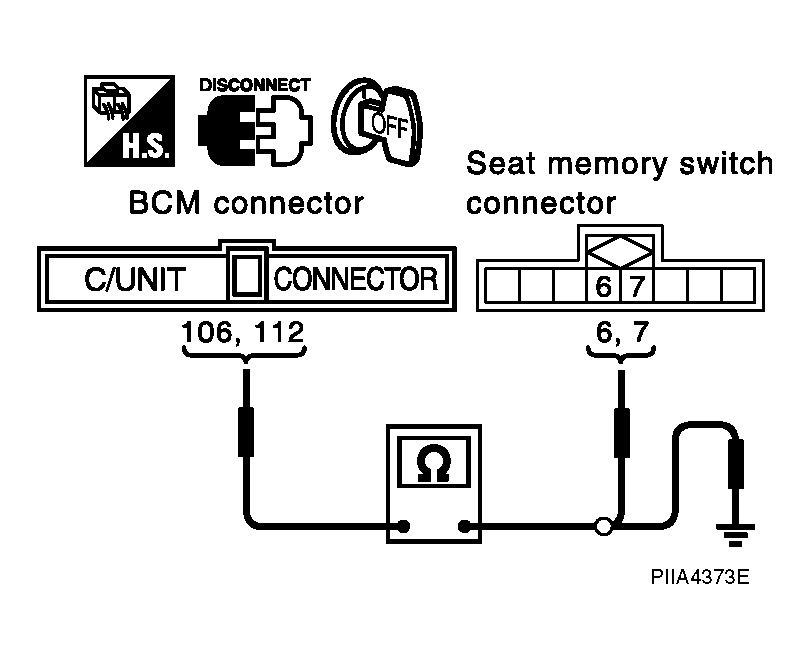

      Fig 3: Identifying Continuity Between BCM Connector M4 Terminals 106, 112 And Ground
      G04130209Courtesy of NISSAN MOTOR CO., U.S.A.

      106 (BR/Y) - Ground : Continuity should not exist.

      112 (L/W) - Ground : Continuity should not exist.

    OK or NG

    • OK : GO TO 5.
    • NG : Repair or replace harness between BCM and memory switch.
  5. CHECK SEAT MEMORY SWITCH INDICATOR SIGNAL

    Check voltage between BCM connector M4 terminals 106, 112 and ground.

    106 (BR/Y) - Ground : Battery voltage.

    112 (L/W) - Ground : Battery voltage.

    OK or NG

    • OK : Replace BCM.
    • NG : Replace seat memory switch.

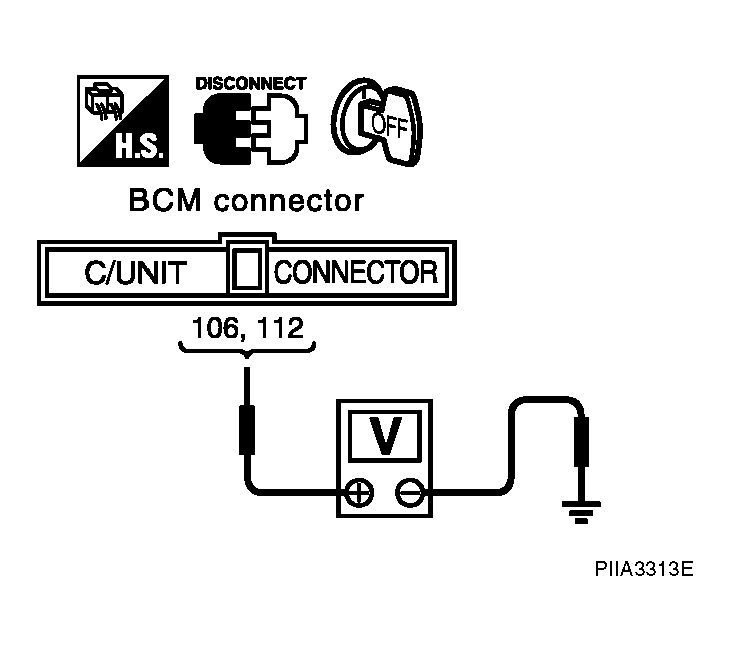

      Fig 4: Identifying Voltage Between BCM Connector M4 Terminals 106, 112 And Ground
      G04130210Courtesy of NISSAN MOTOR CO., U.S.A.
