Terminals and Reference Values for Driver Seat Control Unit

DRIVER SEAT CONTROL UNIT TERMINALS AND REFERENCE VALUES

Terminal	Wire Color	Item	Signal input/output	Condition		Voltage (V) (Approx.)
1	W	Sliding motor FR output signal	Output	Sliding switch	Forward operation	Battery voltage
1	W	Sliding motor FR output signal	Output	Sliding switch	OFF	0
2	G	Reclining motor FR output signal	Output	Reclining switch	Forward operation	Battery voltage
2	G	Reclining motor FR output signal	Output	Reclining switch	OFF	0
4	Y	Rear lifting motor DOWN output signal	Output	Rear lifting switch	DOWN operation	Battery voltage
4	Y	Rear lifting motor DOWN output signal	Output	Rear lifting switch	OFF	0
6	PU	Rear lifting motor UP output signal	Output	Rear lifting switch	UP operation	Battery voltage
6	PU	Rear lifting motor UP output signal	Output	Rear lifting switch	OFF	0
8	BR	Sliding motor RR output signal	Output	Sliding switch	Backward operation	Battery voltage
8	BR	Sliding motor RR output signal	Output	Sliding switch	OFF	0
9	LG	Reclining motor RR output signal	Output	Reclining switch	Backward operation	Battery voltage
9	LG	Reclining motor RR output signal	Output	Reclining switch	OFF	0
10	OR	Front lifting motor DOWN signal	Output	Front lifting switch	DOWN operation	Battery voltage
10	OR	Front lifting motor DOWN signal	Output	Front lifting switch	OFF	0
11	P	Front lifting motor UP output signal	Output	Front lifting switch	UP operation	Battery voltage
11	P	Front lifting motor UP output signal	Output	Front lifting switch	OFF	0
14A	B/W	Ground	-	Ignition switch ON		0
15B	B	Ground	-	Ignition switch ON		0
16A	R	Battery power supply	Input	-		Battery voltage
17	Y/R	Sliding switch FR signal	Input	Sliding switch	Forward operation	0
17	Y/R	Sliding switch FR signal	Input	Sliding switch	OFF	5
18	GY/B	Reclining switch FR signal	Input	Reclining switch	Forward operation	0
18	GY/B	Reclining switch FR signal	Input	Reclining switch	OFF	5
19	L/R	Front lifting switch UP signal	Input	Front lifting switch	UP operation	0
19	L/R	Front lifting switch UP signal	Input	Front lifting switch	OFF	5

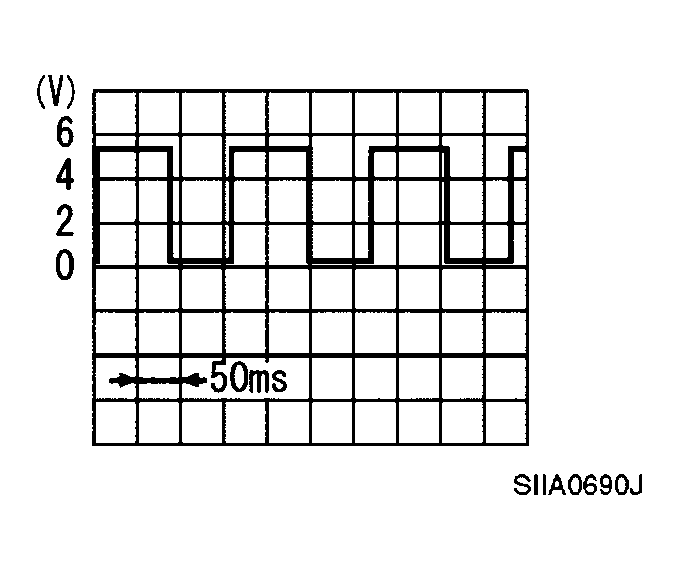

20	G/B	Sliding sensor signal	Input	Sliding motor operation
20	G/B	Sliding sensor signal	Input	Other than above.		0 or 5

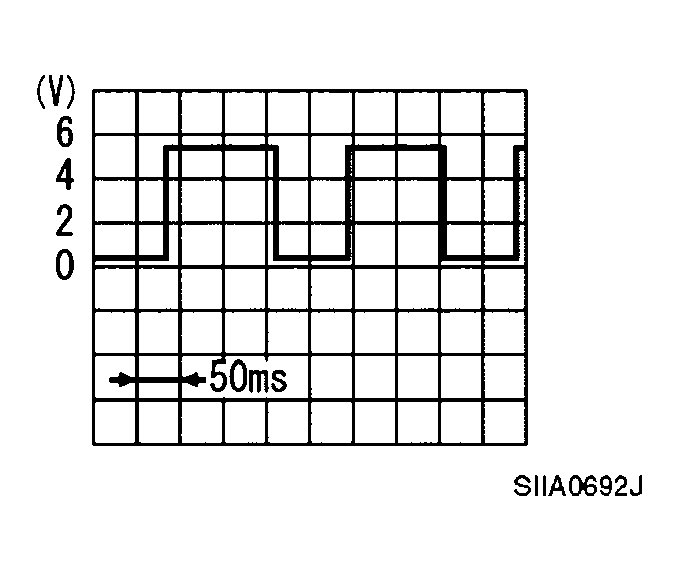

21	Y/B	Front lifting sensor signal	Input	Front lifting motor operation
21	Y/B	Front lifting sensor signal	Input	Other than above.		0 or 5
22	R/B	Data line A-1	Input/Output	-		-
23	G/W	Sliding switch RR signal	Input	Sliding switch	Backward operation	0
23	G/W	Sliding switch RR signal	Input	Sliding switch	OFF	5
24	SB	Reclining switch RR signal	Input	Reclining switch	Backward operation	0
24	SB	Reclining switch RR signal	Input	Reclining switch	OFF	5
25	OR/B	Front lifting switch DOWN signal	Input	Front lifting switch	DOWN operation	0
25	OR/B	Front lifting switch DOWN signal	Input	Front lifting switch	OFF	5
26	P/B	Rear lifting switch UP signal	Input	Rear lifting switch	UP operation	0
26	P/B	Rear lifting switch UP signal	Input	Rear lifting switch	OFF	5
27	B/Y	Rear lifting switch DOWN signal	Input	Rear lifting switch	DOWN operation	0
27	B/Y	Rear lifting switch DOWN signal	Input	Rear lifting switch	OFF	5

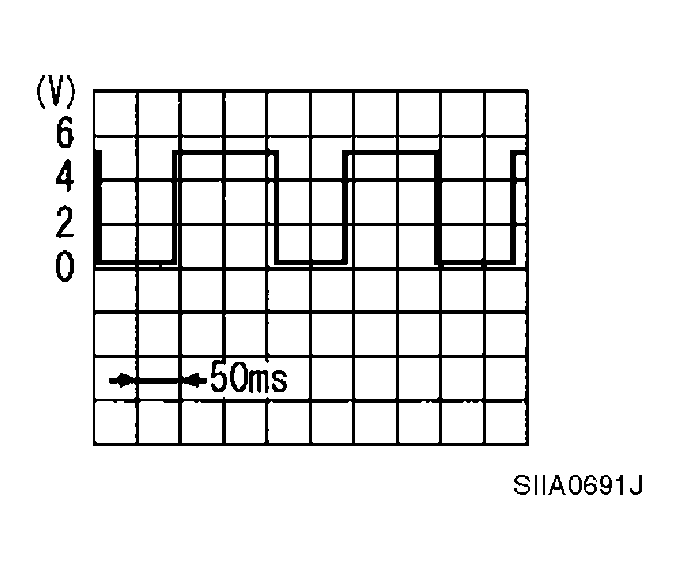

30	L	Reclining sensor signal	Input	Reclining motor operation
30	L	Reclining sensor signal	Input	Other than above		0 or 5

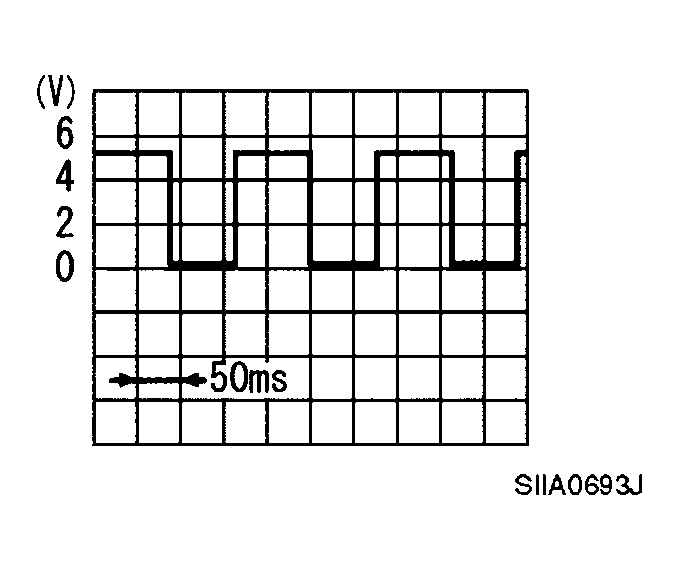

31	W/R	Rear lifting sensor signal	Input	Rear lifting motor operation
31	W/R	Rear lifting sensor signal	Input	Other than above		0 or 5
32	R/W	Ground (sensor)	-	Ignition switch ON		0
