Removal and Installation: Components

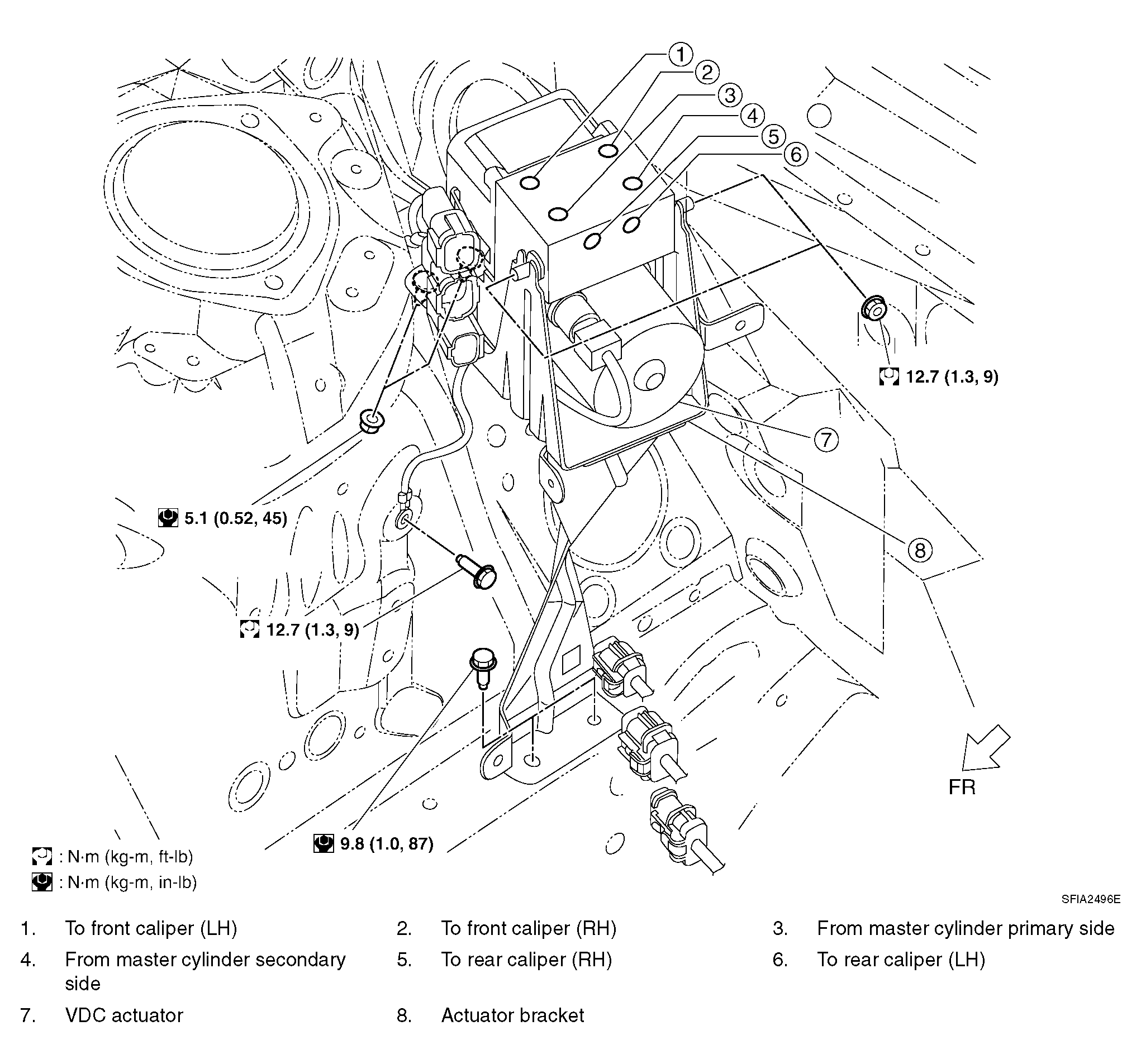

Fig 1: Actuator Replacement Components With Torque Specifications
G04128992Courtesy of NISSAN MOTOR CO., U.S.A.
