Adjustment of Steering Angle Sensor Neutral Position
In case of doing work that applies to the list below, make sure to adjust neutral position of steering angle sensor before running vehicle.
STEERING ANGLE SENSOR POSITION TABLE
| x: Required -: Not required | |
|---|---|
| Situation | Adjustment of Steering Angle Sensor Neutral Position |
| Removing/Installing VDC/TCS/ABS control unit | - |
| Replacing VDC/TCS/ABS control unit | x |
| Removing/Installing steering angle sensor | x |
| Removing/Installing steering components | x |
| Removing/Installing suspension components | x |
| Change tires to new ones | - |
| Tire rotation | - |
| Adjusting wheel alignment | x |
CAUTION:
To adjust neutral position of steering angle sensor, make sure to use CONSULT-II. (Adjustment cannot be done without CONSULT-II.)
- Stop vehicle with front wheels in straight-ahead position.
- Perform "CONSULT-II Start Procedure". Refer to "CONSULT-II START PROCEDURE ".
- Touch "WORK SUPPORT".

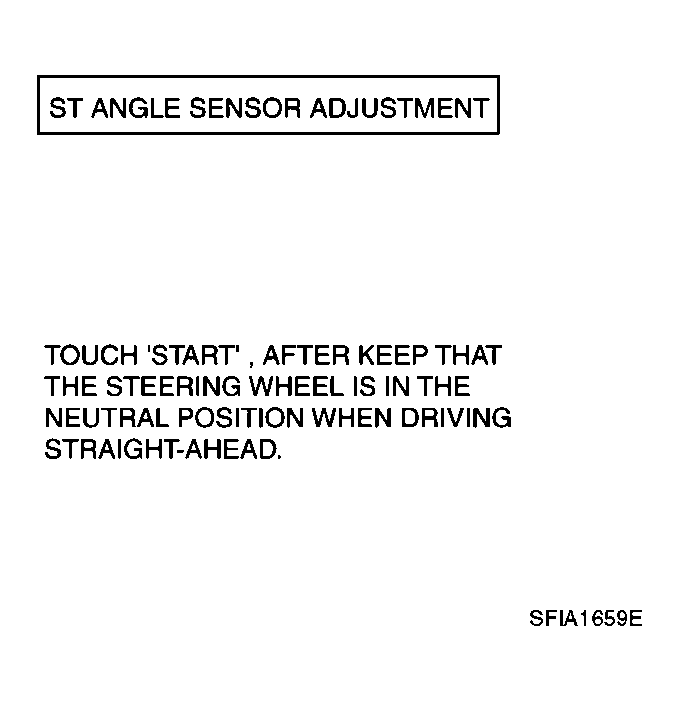

- Touch "START" on "ST ANGLE SENSOR ADJUSTMENT" screen.CAUTION: Do not touch steering wheel while adjusting steering angle sensor.
- After approximately 10 seconds, touch "END". (After approximately 60 seconds, it ends automatically.)
- Turn ignition switch OFF, then turn it ON again.CAUTION: Be sure to perform above operation.
- Run vehicle with front wheels in straight-ahead position, then stop.
- Select "DATA MONITOR", "ECU INPUT SIGNALS", and "STR ANGLE SIG" on CONSULT-II screen. Then make sure that "STR ANGLE SIG" is within 0 +/-2.5°. If value is more than specification, repeat steps 1 to 7.
- Erase memory of VDC/TCS/ABS control unit and ECM. Refer to "HOW TO ERASE SELF-DIAGNOSTIC RESULTS ", "TROUBLE DIAGNOSIS ".
- Turn ignition switch OFF.
