Inspection Procedure

With CONSULT-II

1. Turn ignition switch "ON". (Do not start engine.)
2. Select "SELF-DIAG RESULTS" mode for "VDC" with CONSULT-II.
3. Touch "ERASE".
4. Turn ignition switch "OFF" and wait at least 10 seconds.
5. Check the self-diagnostic results.
   SELF-DIAGNOSTIC RESULTS



   Self-diagnosis results
   BR FLUID LEVEL LOW

Is above displayed in the self-diagnosis display?

1. YES : GO TO 2.
2. NO : INSPECTION END

1. Turn ignition switch "OFF".
2. Disconnect brake fluid level switch connector E74 and VDC/TCS/ABS control unit connector E218.
3. Reconnect connectors securely, then perform VDC/TCS/ABS control unit self-diagnosis again.

Does anything appear on self-diagnosis results display?

1. YES : Poor connector connections. Repair or replace connectors.
2. NO : GO TO 3.

1. Turn ignition switch "OFF".
2. Disconnect combination meter connector M43.
3. Check continuity between brake fluid level switch harness connector E74 and combination meter harness connector M43.

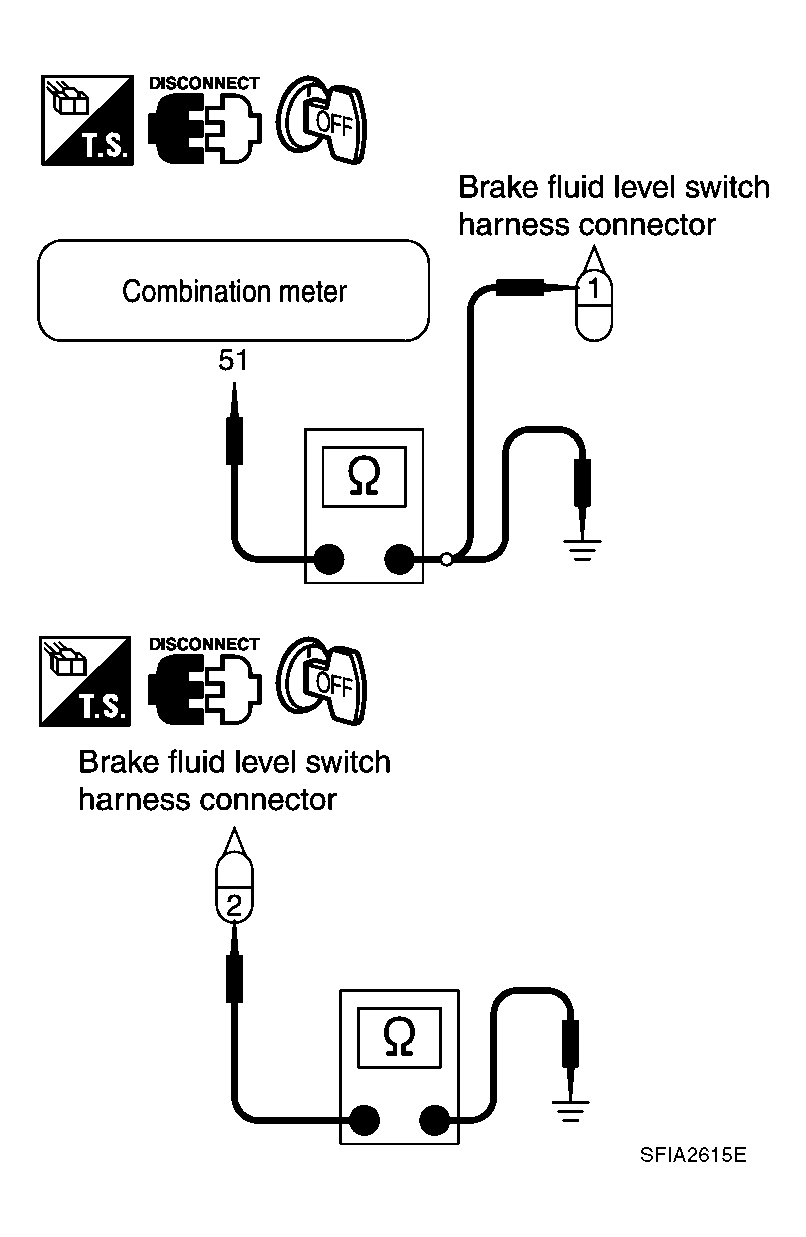

   Fig 1: Checking Continuity Between Brake Fluid Level Switch And Combination Meter

   Courtesy of NISSAN MOTOR CO., U.S.A.

   51 - 1 : Continuity should exist.

   2 - Ground : Continuity should exist.

   51 - Ground : Continuity should not exist.

OK or NG

1. OK : Brake fluid level switch is malfunctioning. Replace reservoir tank assembly Refer to "DISASSEMBLY AND ASSEMBLY ".
2. NG : If open or short in harness, repair or replace the harness.
