VDC Actuator: Notes

Turn ignition switch OFF and Disconnect VDC actuator connectors. Check continuity and resistance value between any pair of terminals on the actuator.

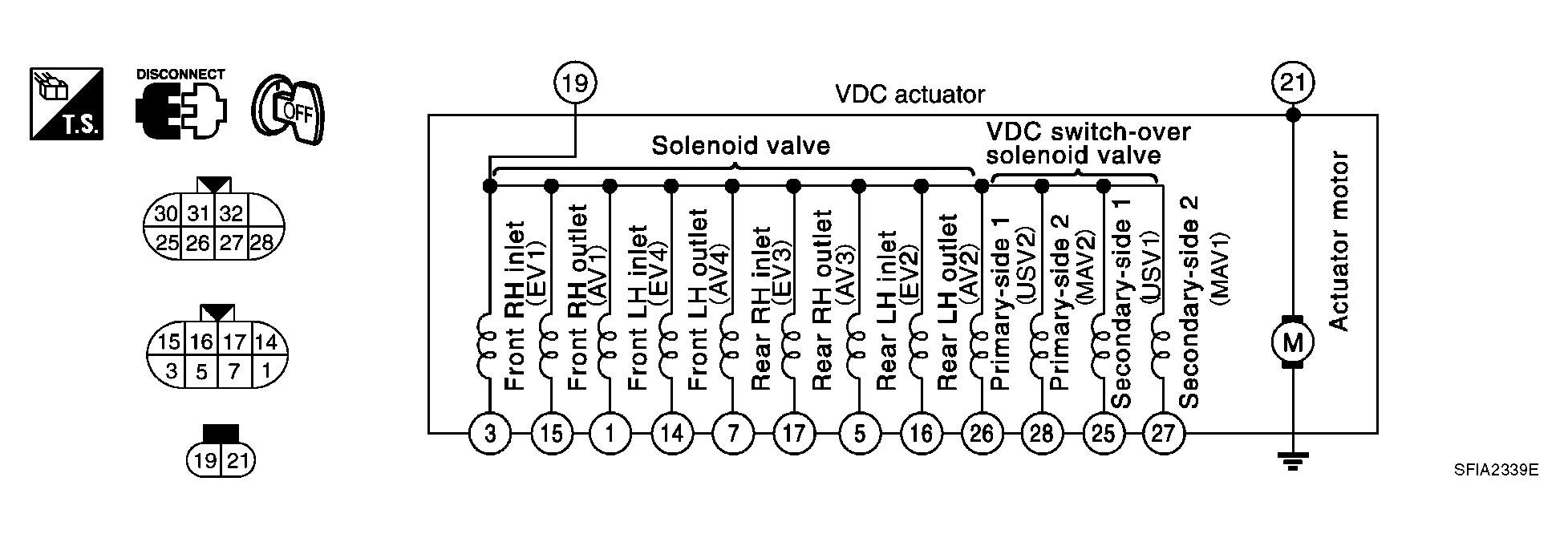

Fig 1: Identifying VDC Actuator Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Make sure actuator motor is correctly grounded.

Continuity and resistance

VDC ACTUATOR SPECIFICATION TABLE

Item	VDC actuator connector terminal number		Continuity and Resistance value	Condition
Solenoid valve	1, 3, 5, 7	19	6.0 - 11Ω	Check the resistance
Solenoid valve	14, 15, 16, 17		3.0 - 5.0Ω
VDC switch-over solenoid valve	25, 26		6.0 - 11Ω
VDC switch-over solenoid valve	27, 28		3.0 - 5.0Ω
Actuator motor	21	ground	Yes	-
