Removal and Installation: Removal
- Remove instrument lower cover. Refer to "(O) INSTRUMENT LOWER COVER ".
- Remove instrument finisher. Refer to "(Q) INSTRUMENT FINISHER ".
- Remove grove box assembly. Refer to "(P) GLOVE BOX ".
- Remove grove box cover. Refer to "(R) GLOVE BOX COVER ".
- Remove instrument panel bracket.
- Remove ECM. Refer to "ECM TERMINALS AND REFERENCE VALUE ".

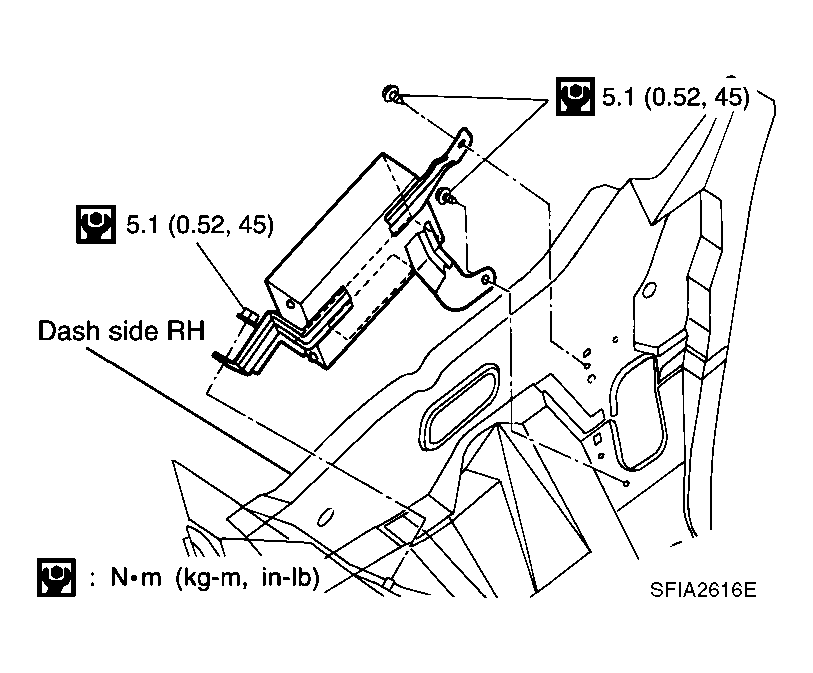

- Remove VDC/TCS/ABS control unit.
