Terminals and Reference Value for Combination Meter
TERMINALS AND REFERENCE VALUE FOR COMBINATION METER
| Terminal No. | Wire color | Item | Condition | Reference value (Approx.) | |
|---|---|---|---|---|---|
| Ignition switch | Operation or condition | ||||
| 1 | L/OR | ACC power supply | ACC | - | Battery voltage |
| 15 | L | CAN-H | - | - | - |
| 16 | P | CAN-L | - | - | - |

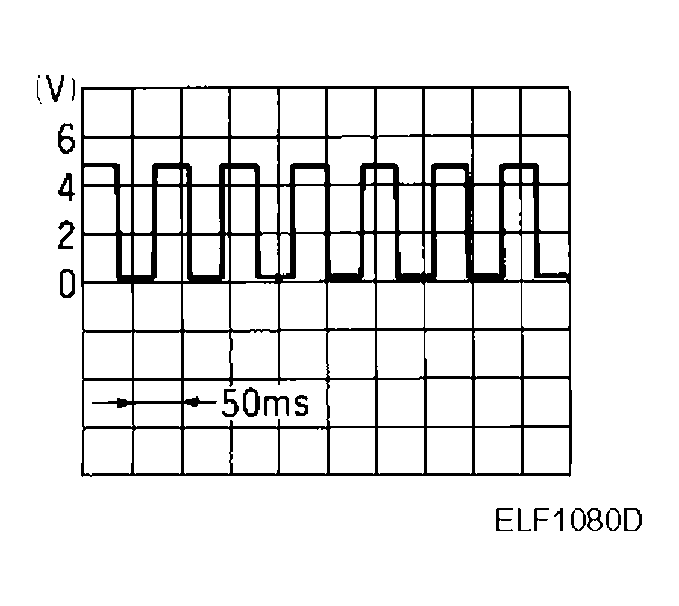

| 17 | OR/L | Vehicle speed signal output (8-pulse) | ON | Speedometer operated [When vehicle speed is approx. 40 km/h (25 MPH)] | |
| 18 | P/L | Vehicle speed signal output (2-pulse) | ON | Speedometer operated [When vehicle speed is approx. 40 km/h (25 MPH)]. | |
| 29 | B/Y | Fuel level sensor ground | - | - | - |
| 30 | R/L | Fuel level senor signal | ON | - | Refer to "CHECK FUEL LEVEL SENSOR UNIT ". |
| 57 | Y/G | Battery power supply | OFF | - | Battery voltage |
| 59 | G | Ignition power supply | ON | - | Battery voltage |
| 60 | B | Ground | ON | - | 0V |
| 61 | |||||
| 62 | |||||
