Vehicle Condition Setting Is Not Possible

  1. CHECK HARNESS
    1. Turn ignition switch OFF.
    2. Disconnect connectors of combination meter, BCM, and AV and NAVI control unit.
    3. Check continuity AV and NAVI control unit harness connector B29 terminals 33, 32 and BCM harness connector M4 terminals 31, 30.
      CONNECTOR TERMINALS CONTINUITY SPECIFICATIONS

      Terminals Continuity
      AV and NAVI control unit (+) Combination meter (-)
      Connector Terminal Connector Terminal
      B29 33 M4 31 Yes
      32 30
    4. Check continuity between AV and NAVI control unit harness connector B29 terminals 33, 32 and ground.
      CONNECTOR TERMINALS CONTINUITY SPECIFICATIONS

      Terminals Continuity
      AV and NAVI control unit (+) (-)
      Connector Terminal
      B29 33 Ground No
      32

    OK or NG

    1. OK : GO TO 2.
    2. NG : Repair harness or connector.

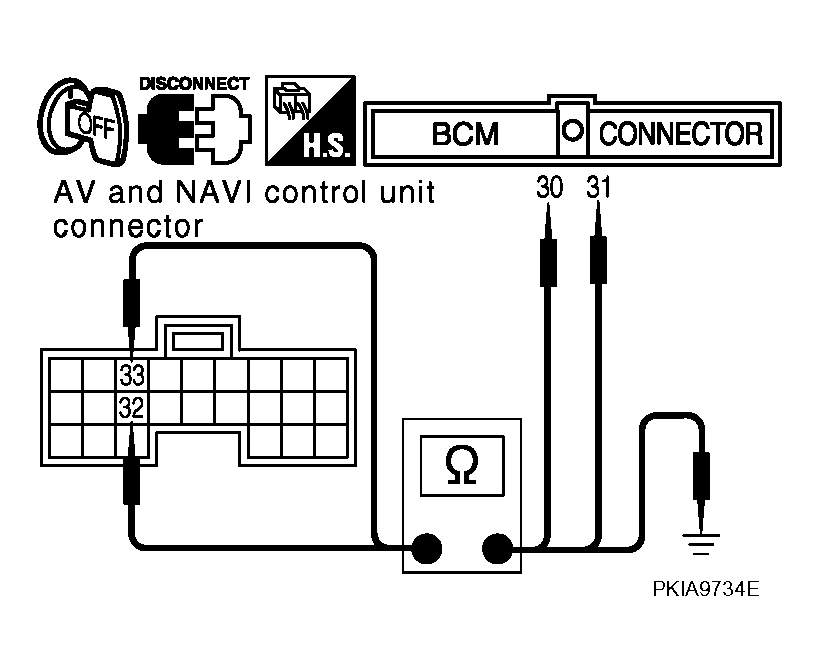

      Fig 1: Identifying Continuity Between AV And NAVI Control Unit Harness Connector B29 Terminals 33, 32 And Ground
      G04131235Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK COMMUNICATION SIGNAL (AV-ME)
    1. Connect connectors of combination meter, BCM, and AV and NAVI control unit.
    2. Turn ignition switch ON and display "VEHICLE ELECTRONIC SYSTEMS" screen.
    3. Check voltage signal between AV and NAVI control unit harness connector B29 terminal 33 and ground.

      33 - Ground:

      Fig 2: Voltage Signal Graph
      G04131236Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 3.
    2. NG : Replace AV and NAVI control unit.
      Fig 3: Identifying Voltage Signal Between AV And NAVI Control Unit Harness Connector B29 Terminal 33 And Ground
      G04131237Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK COMMUNICATION SIGNAL (ME-AV)
    1. Turn ignition switch ON and display "VEHICLE ELECTRONIC SYSTEMS" screen.
    2. Check voltage signal between AV and NAVI control unit harness connector B29 terminal 32 and ground.

      32 - Ground:

      Fig 4: Voltage Signal Graph
      G04131238Courtesy of NISSAN MOTOR CO., U.S.A.
      Fig 5: Identifying Voltage Signal Between AV And NAVI Control Unit Harness Connector B29 Terminal 32 And Ground
      G04131239Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Replace AV and NAVI control unit.
    2. NG : Replace BCM.
