Exhaust Control Valve

Check operation of valve and actuator by revving engine.

ACCELERATOR PEDAL OPENING REFERENCE

Condition		Exhaust control valve
Accelerator pedal opening	Engine rpm	Exhaust control valve
Below half (no-load)	Above approximate 4,830 rpm	Open
Below half (no-load)	Below approximate 4,730 rpm	Close
Over half (loaded)	-	Open

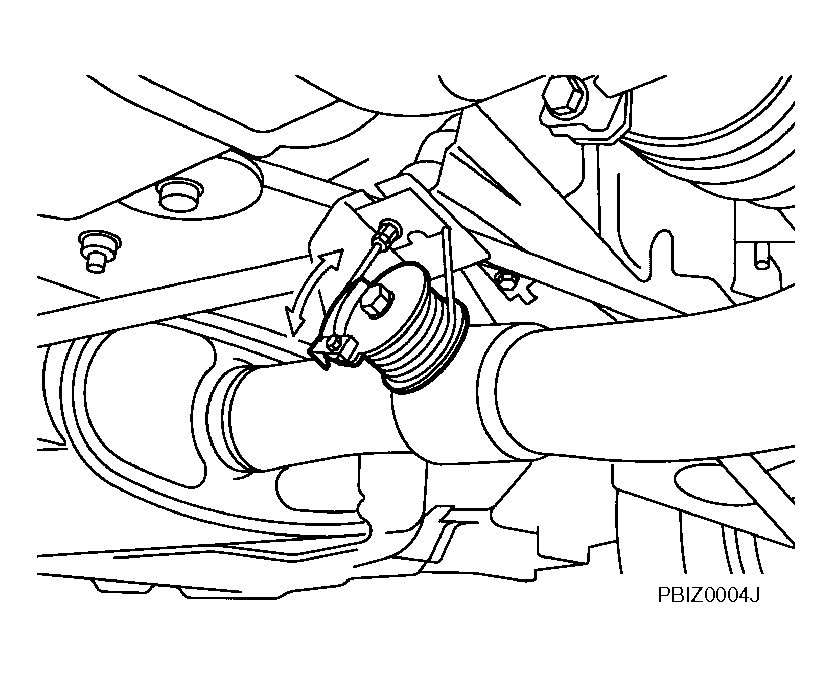

Fig 1: Identifying Exhaust Control Valve

G04127921

Courtesy of NISSAN MOTOR CO., U.S.A.
