Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check continuity between stop lamp switch terminals 3 and 4 under the following conditions.
    STOP LAMP SWITCH

    Condition Continuity
    When brake pedal: Fully released. Should not exist.
    When brake pedal: Slightly depressed. Should exist.

    If NG, adjust stop lamp switch installation, Refer to "BRAKE PEDAL ", and perform step  3 again.

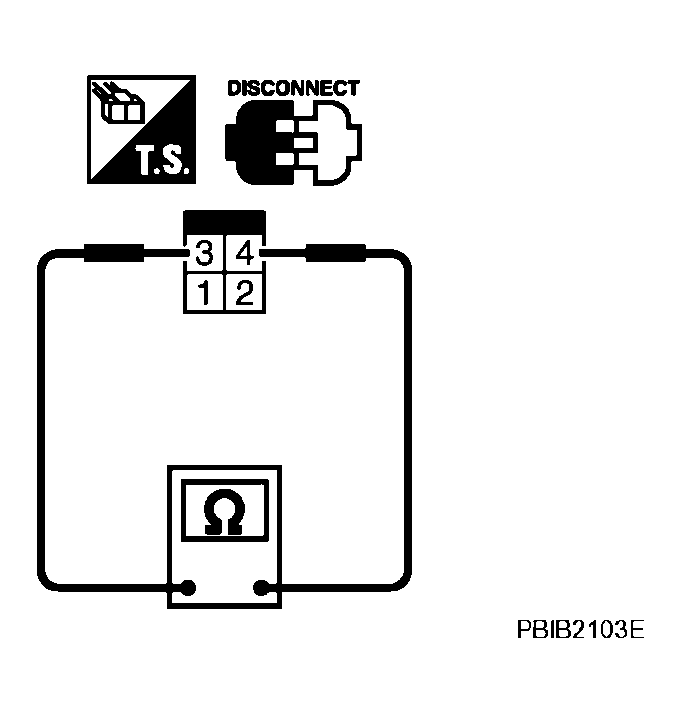

    Fig 1: Checking Continuity Between Stop Lamp Switch Terminals 3 And 4
    G04127792Courtesy of NISSAN MOTOR CO., U.S.A.
