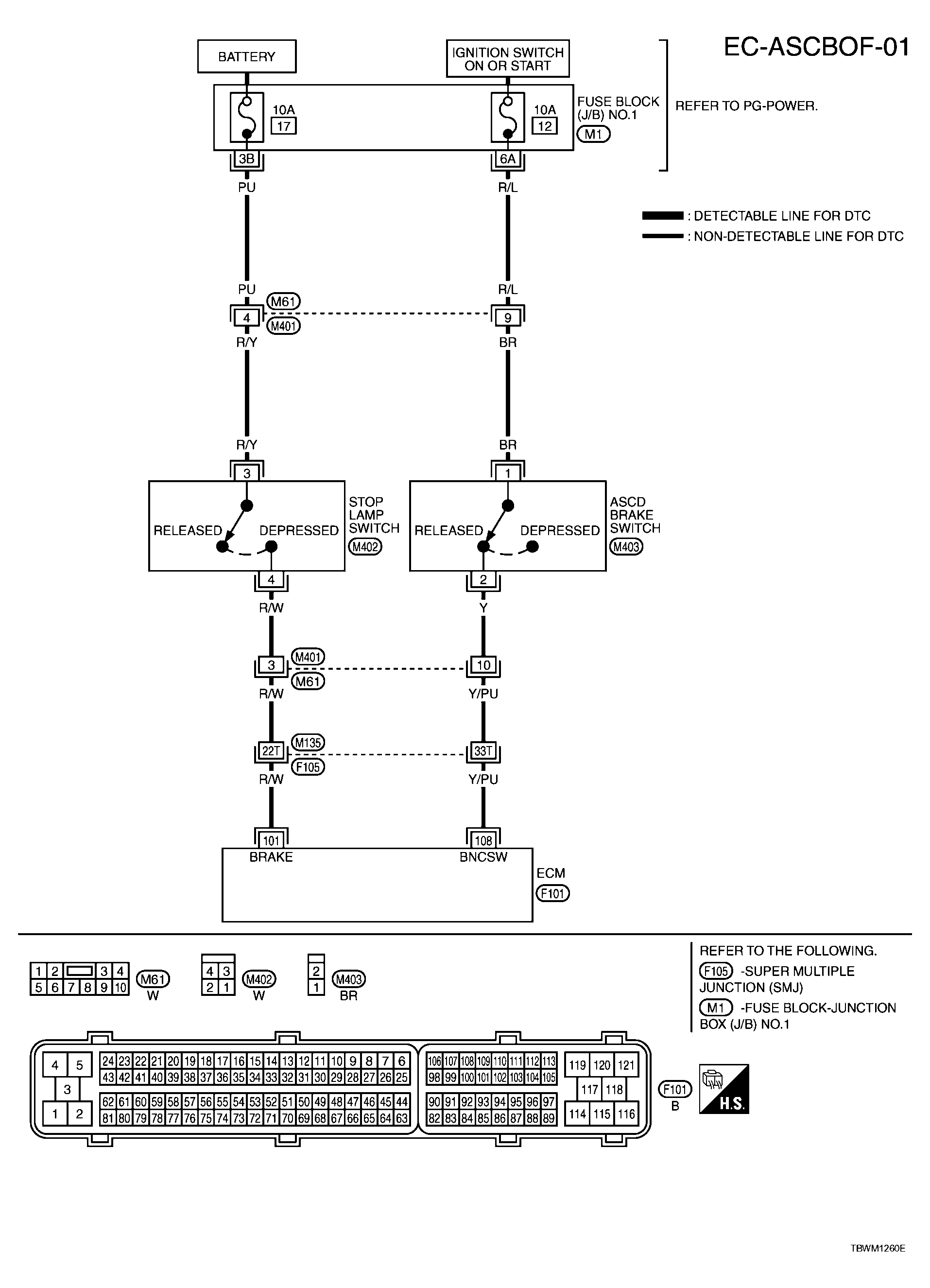

ASCD Brake Switch: Wiring Diagram
For wiring diagram abbreviations, see WIRING DIAGRAM ABBREVIATIONS IDENTIFICATION TABLE .
For PG-POWER, refer to SYSTEM WIRING DIAGRAMS .
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
SPECIFICATION DATA REFERENCE VALUES
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 101 | R/W | Stop lamp switch | [Ignition switch: OFF]
|
Approximately 0V |
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 - 14V) | |||
| 108 | Y/PU | ASCD brake switch | [Ignition switch: ON]
|
Approximately 0V |
[Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) |
