Fuel Pump Relay

Check continuity between terminals 3 and 5 under the following conditions.

FUEL PUMP RELAY

Conditions	Continuity
12V direct current supply between terminals 1 and 2	Yes
No current supply	No

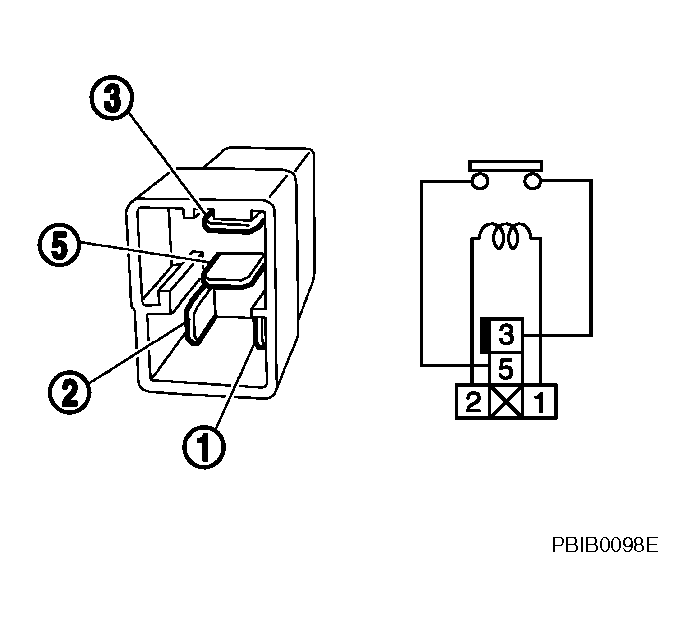

Fig 1: Identifying Fuel Pump Relay Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
