Mil And Data Link Connector: Wiring Diagram

For wiring diagram abbreviations, see WIRING DIAGRAM ABBREVIATIONS IDENTIFICATION TABLE .

For PG-POWER, refer to SYSTEM WIRING DIAGRAMS .

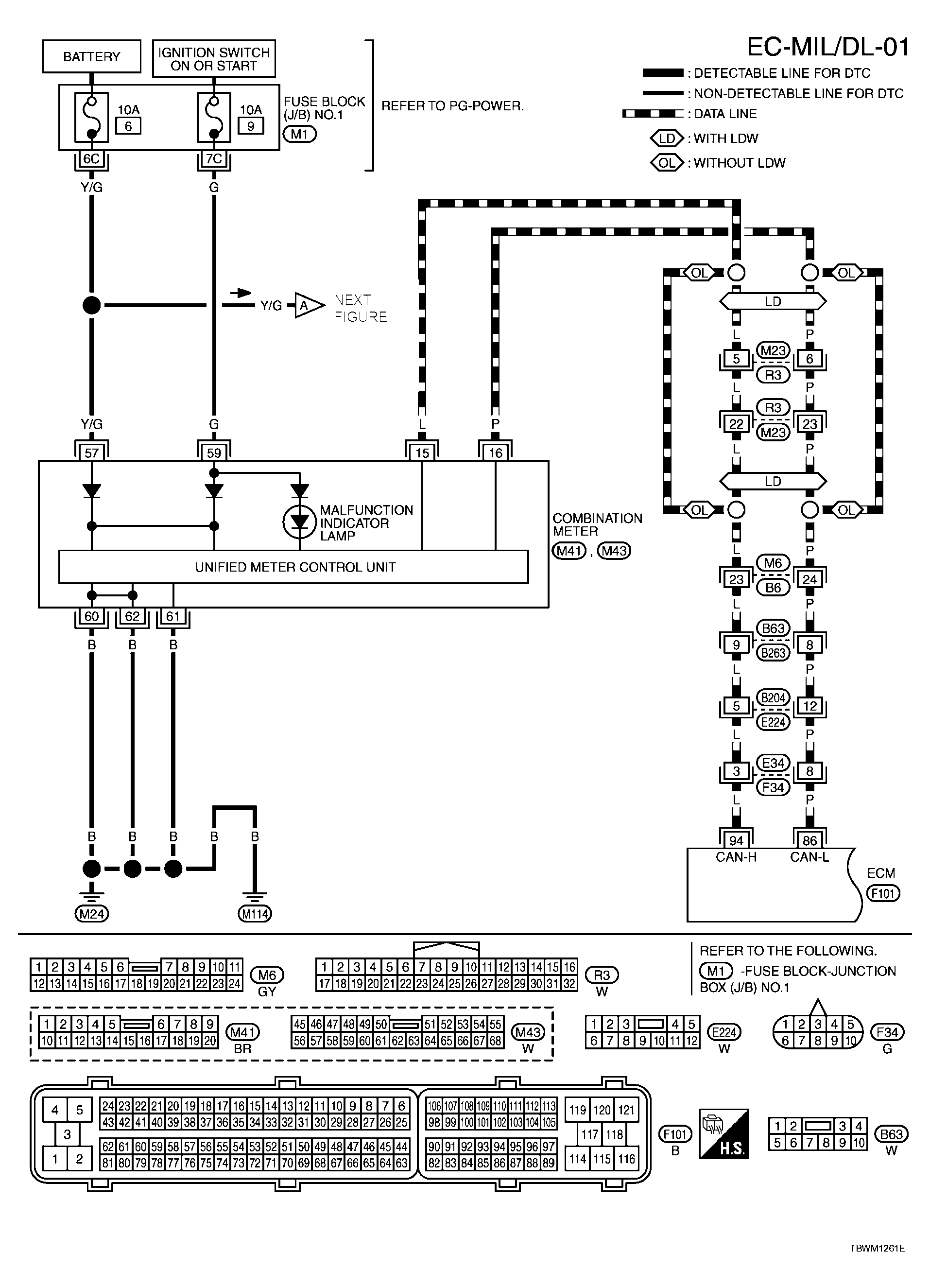

Fig 1: Wiring Diagram - EC-MIL/DL-01

Courtesy of NISSAN MOTOR CO., U.S.A.

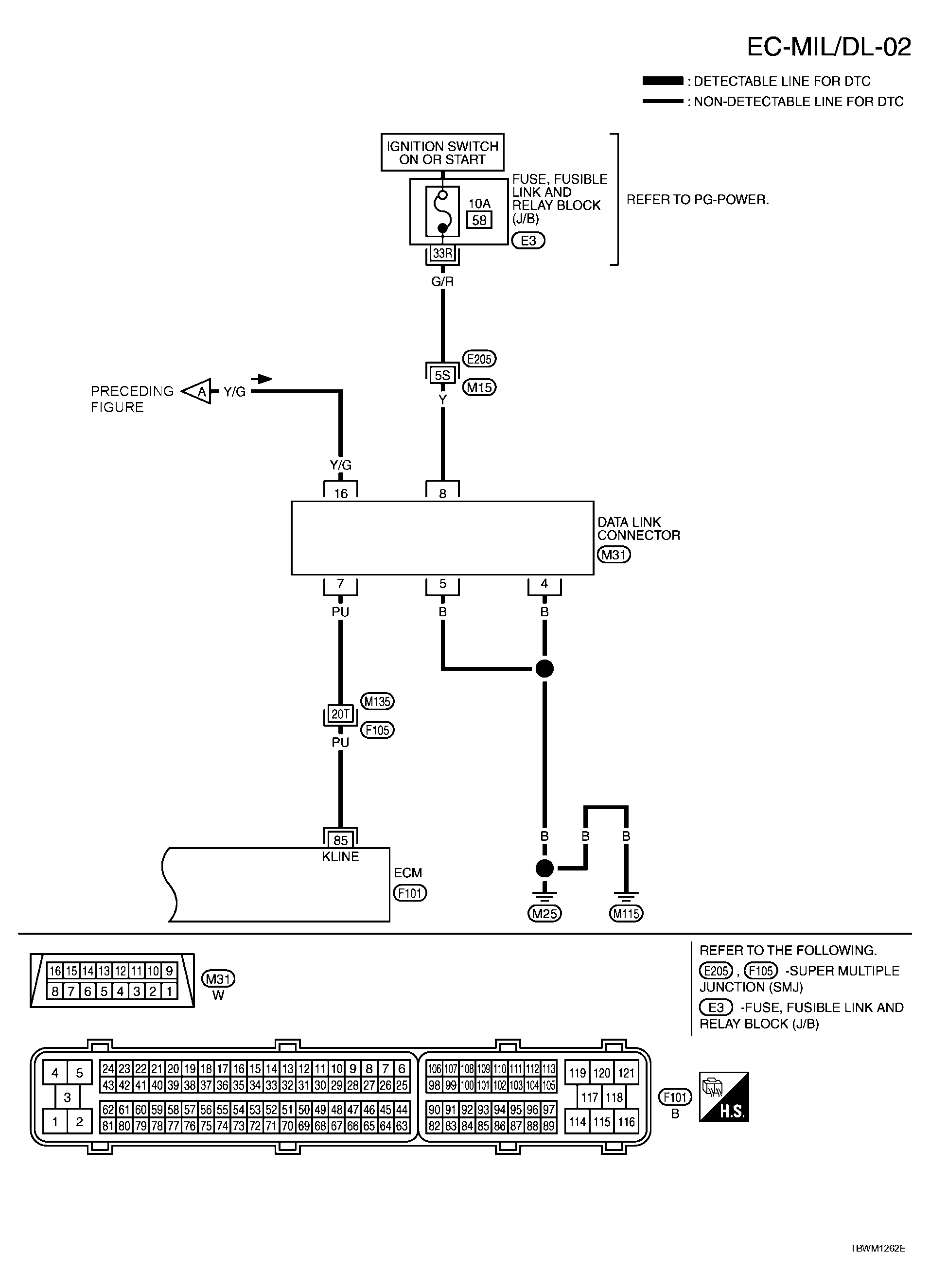

Fig 2: Wiring Diagram - EC-MIL/DL-02

Courtesy of NISSAN MOTOR CO., U.S.A.
