System - Basic Engine Control System

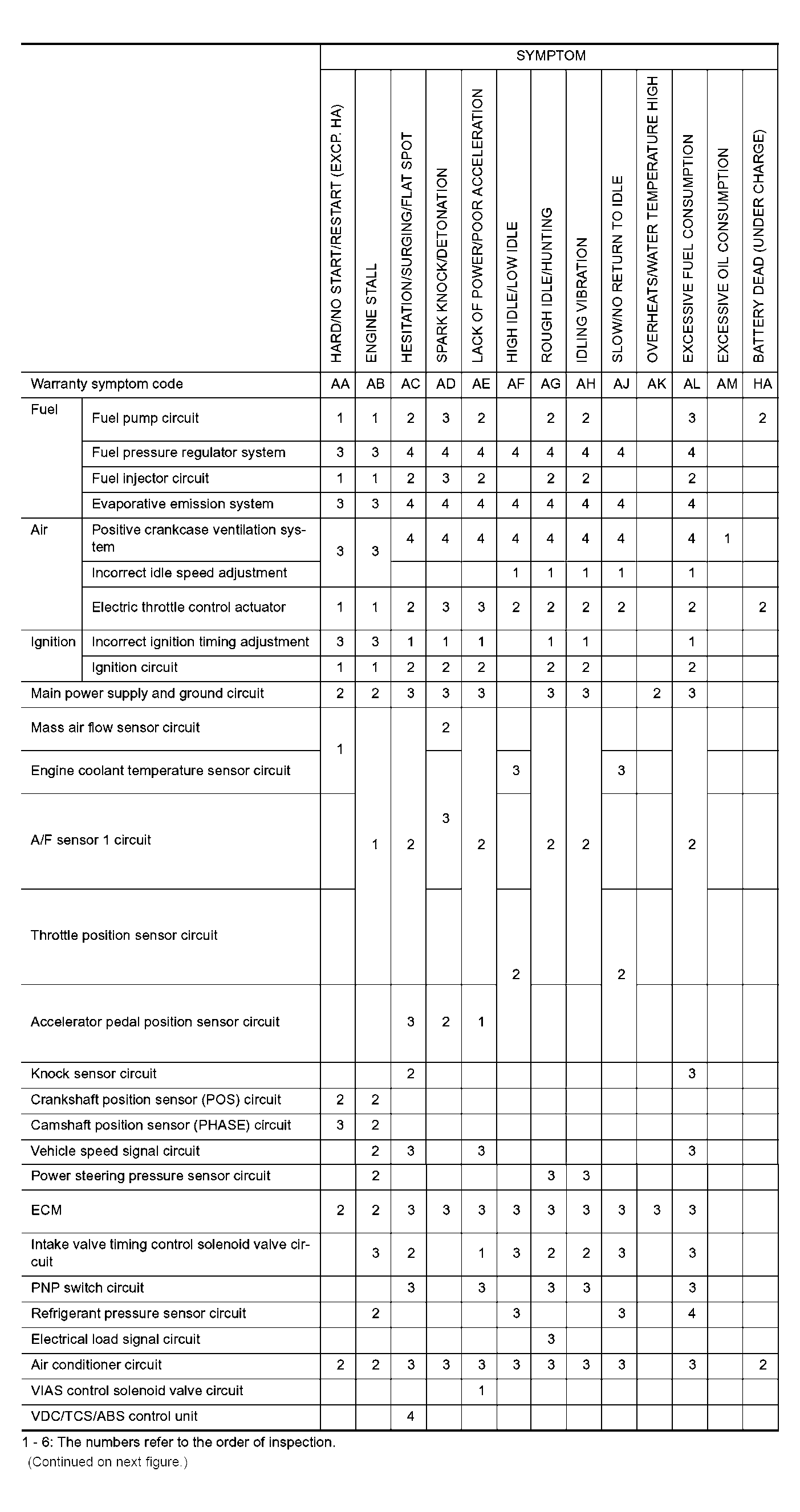

Fig 1: System Basic Engine Control System - Symptom Matrix Chart
G04127009Courtesy of NISSAN MOTOR CO., U.S.A.
