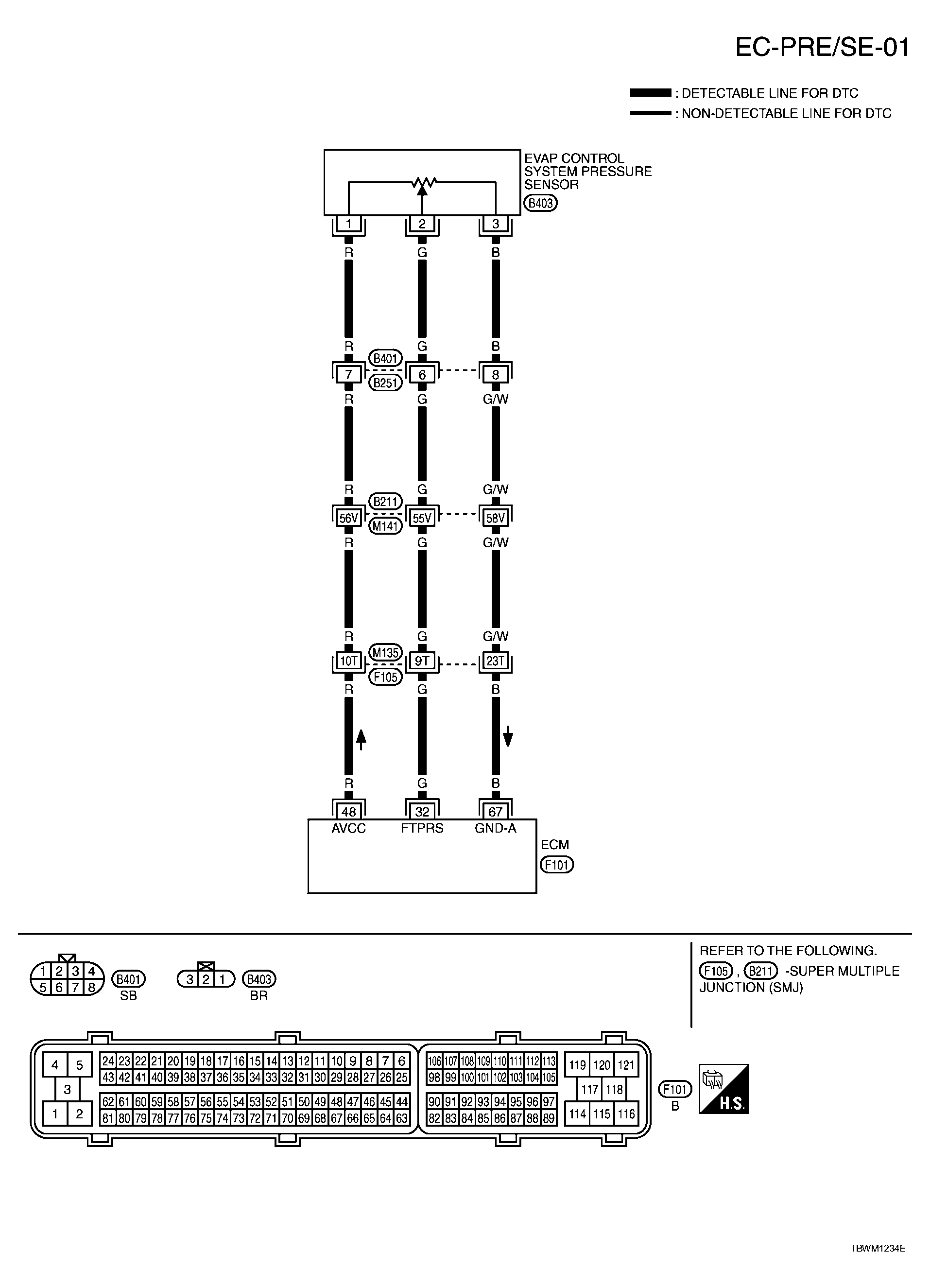

DTC P0452 EVAP Control System Pressure Sensor: Wiring Diagram
For wiring diagram abbreviations, see WIRING DIAGRAM ABBREVIATIONS IDENTIFICATION TABLE .
For PG-POWER, refer to SYSTEM WIRING DIAGRAMS .
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
INPUT/OUTPUT VOLTAGE CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 32 | G | EVAP control system pressure sensor | [Ignition switch: ON] | Approximately 1.8 - 4.8V |
| 48 | R | Sensor power supply (EVAP control system pressure sensor) | [Ignition switch: ON] | Approximately 5V |
| 67 | B | Sensor ground (MAF sensor, IAT sensor, ECT sensor, FTT sensor, EVAP control system pressure sensor, PSP sensor, ICC steering switch, ASCD steering switch, Refrigerant pressure sensor) | [Engine is running]
|
Aproximately 0V |
