ASCD Brake Switch

  1. Turn ignition switch OFF.
  2. Disconnect ASCD brake switch harness connector.
  3. Check continuity between ASCD brake switch terminals 1 and 2 under the following conditions.
    ASCD BRAKE SWITCH

    Condition Continuity
    When brake pedal: Fully released. Should exist.
    When brake pedal: Slightly depressed. Should not exist.

    If NG, adjust ASCD brake switch installation, Refer to "BRAKE PEDAL ", and perform step  3 again.

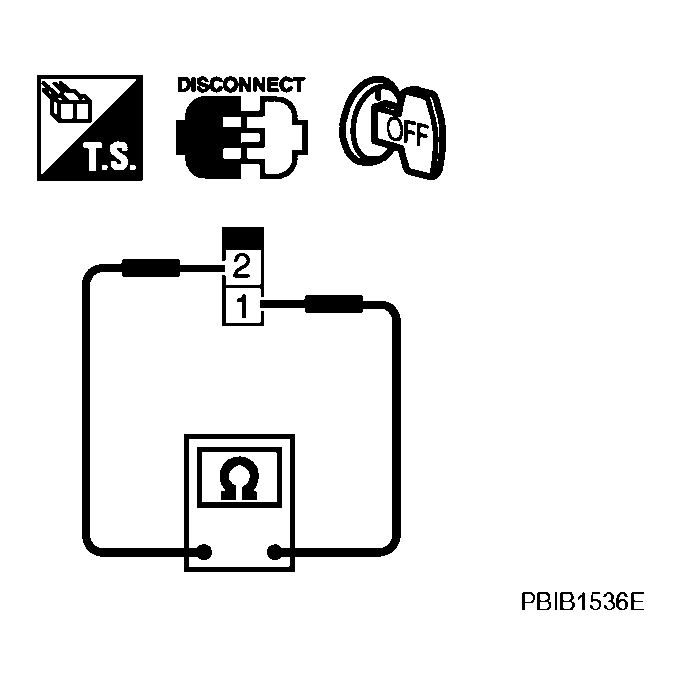

    Fig 1: Checking Continuity Between ASCD Brake Switch Terminals 1 And 2
    G04127691Courtesy of NISSAN MOTOR CO., U.S.A.
