Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Dash

G00422327

Courtesy of NISSAN MOTOR CO., U.S.A.

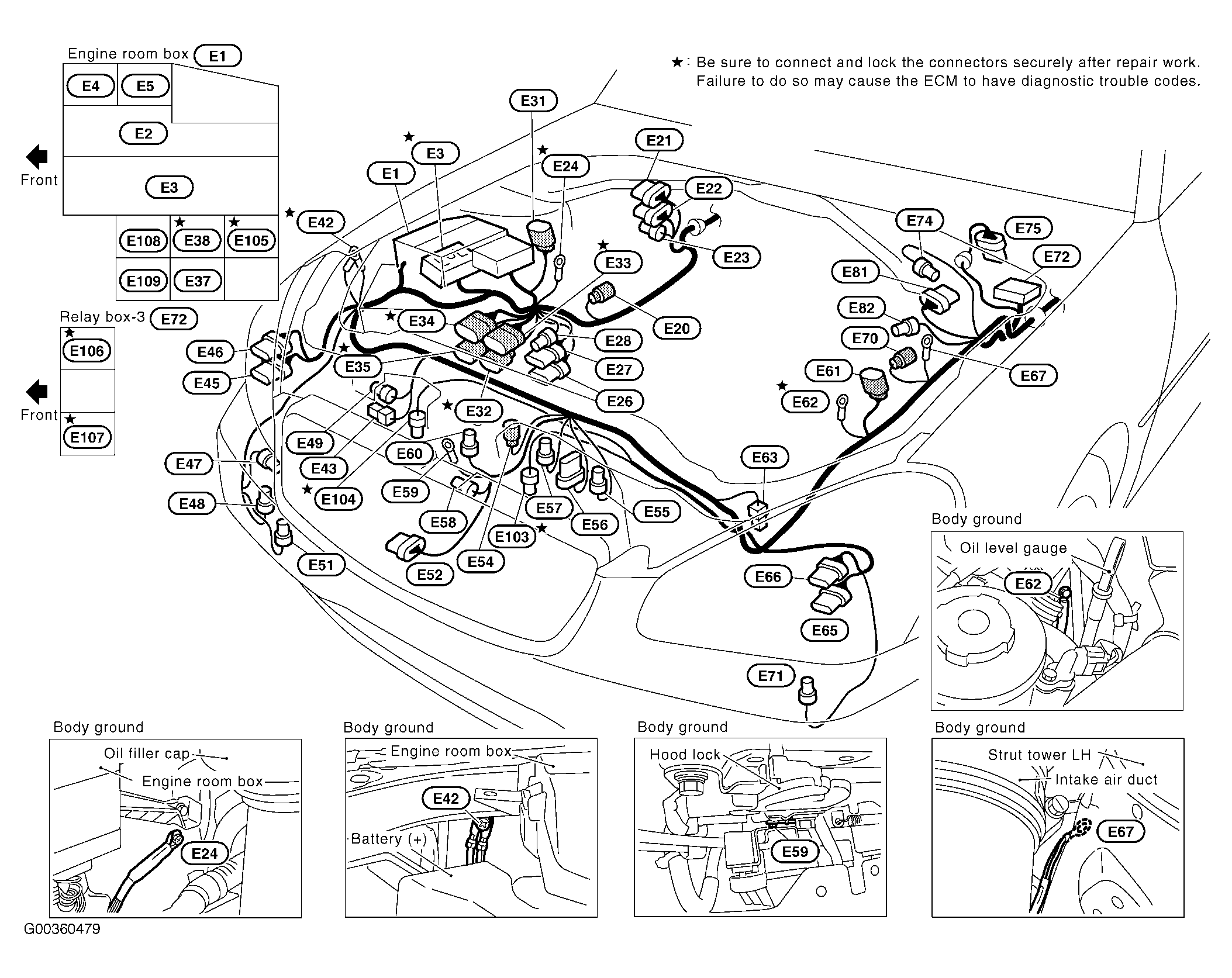

Fig 2: Engine Compartment

G00360479

Courtesy of NISSAN MOTOR CO., U.S.A.

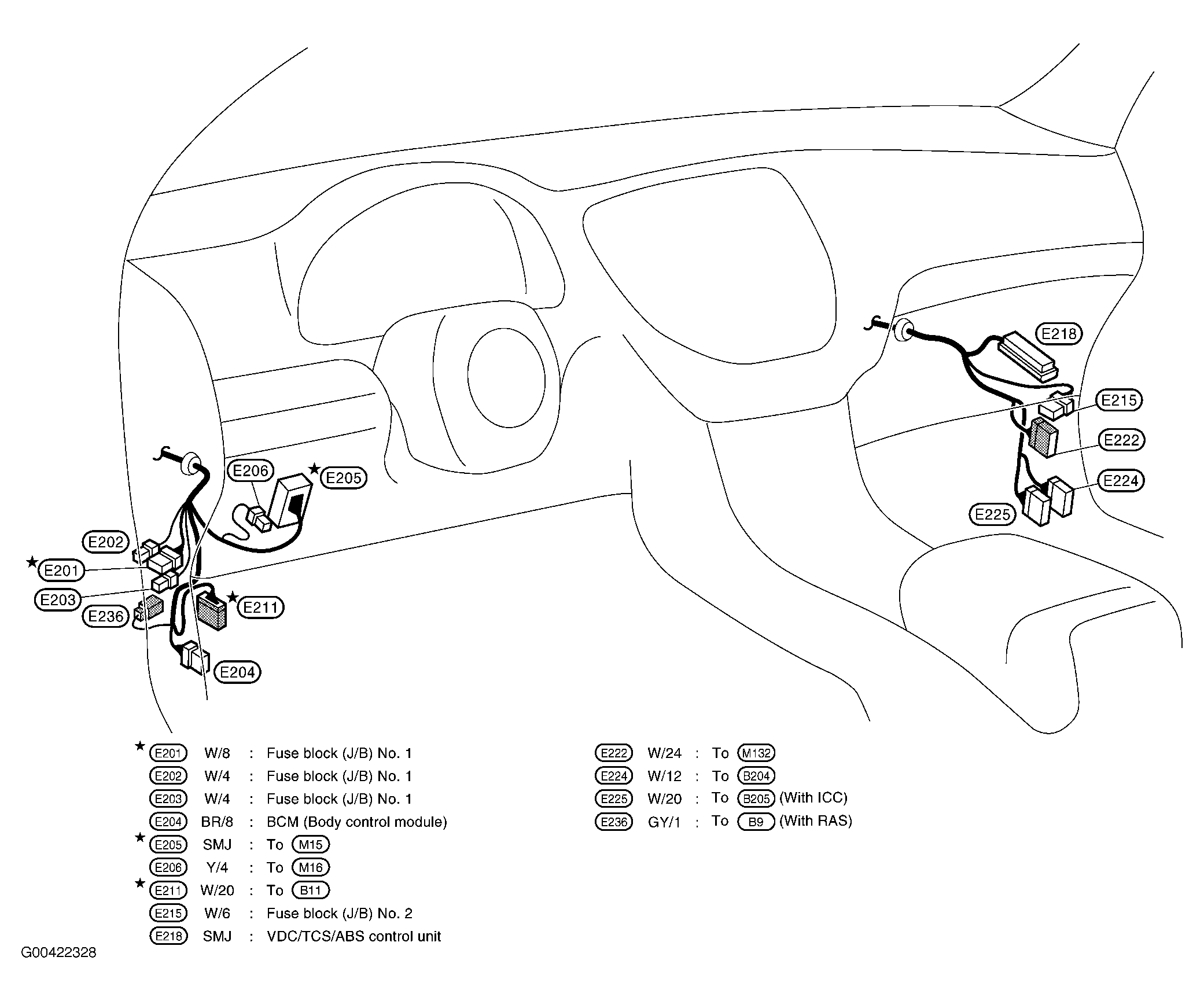

Fig 3: Dash

G00422328

Courtesy of NISSAN MOTOR CO., U.S.A.

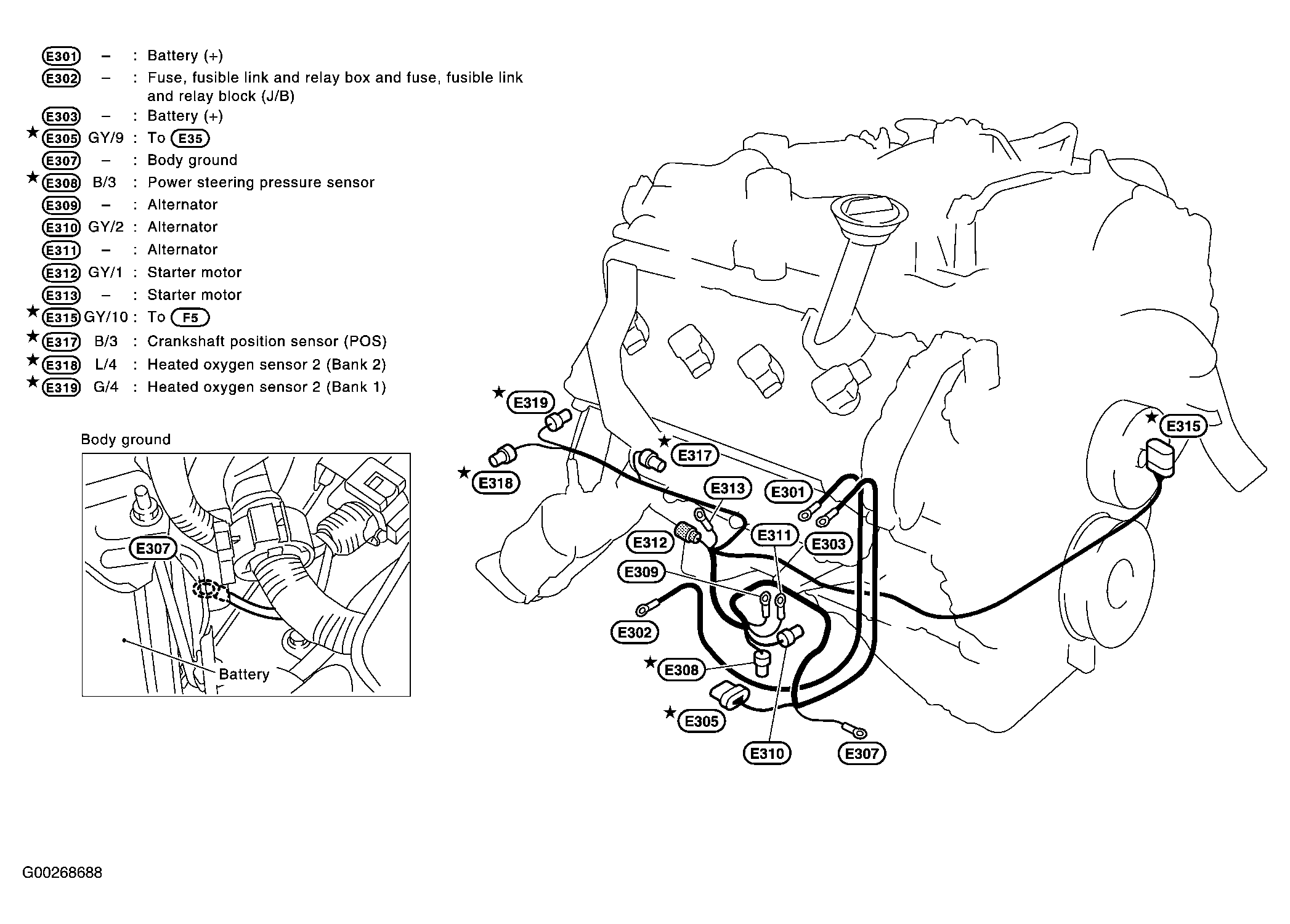

Fig 4: Engine

G00268688

Courtesy of NISSAN MOTOR CO., U.S.A.

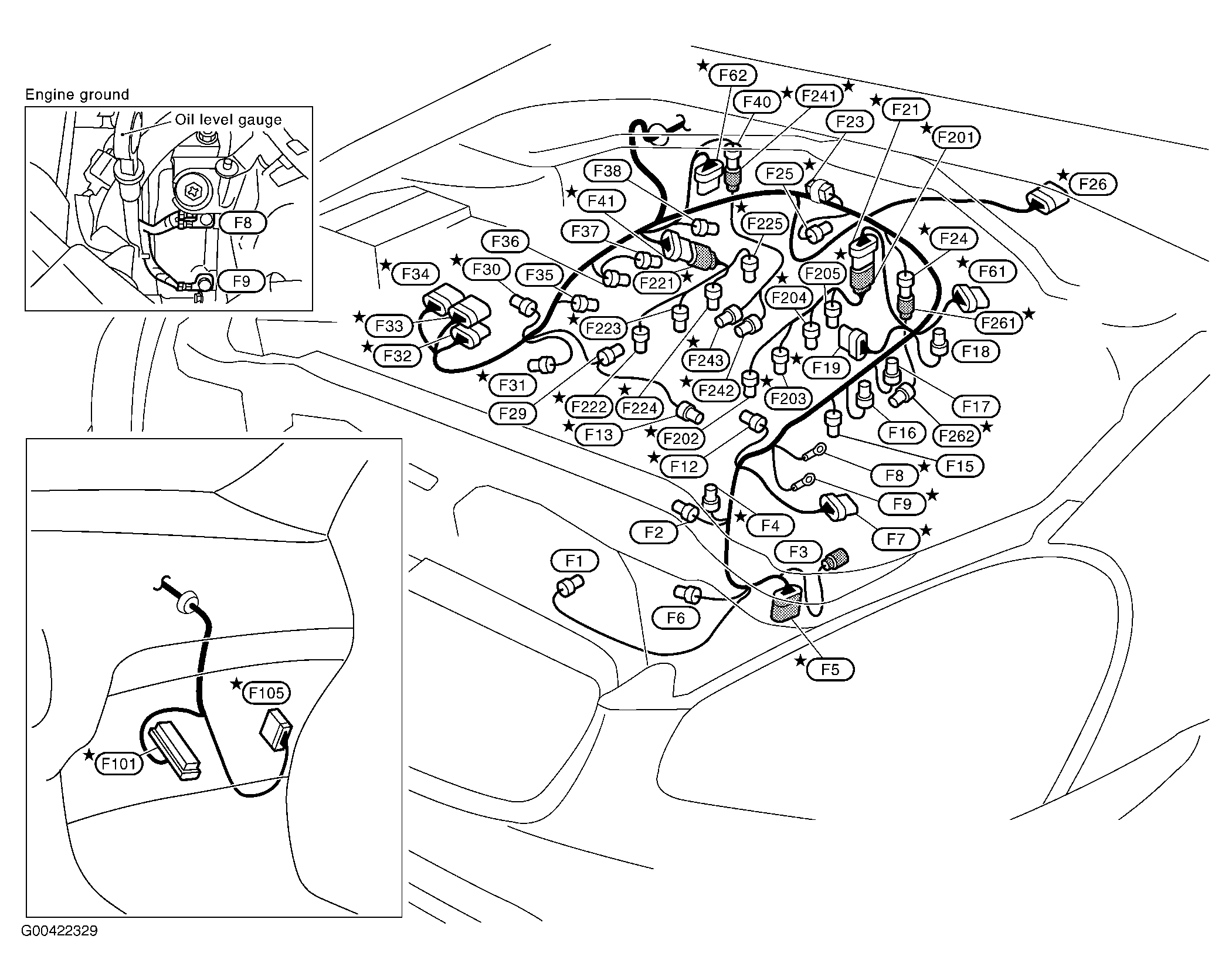

Fig 5: Engine Compartment

G00422329

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Vehicle Overview

G00422330

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Vehicle Overview

G00360483

Courtesy of NISSAN MOTOR CO., U.S.A.

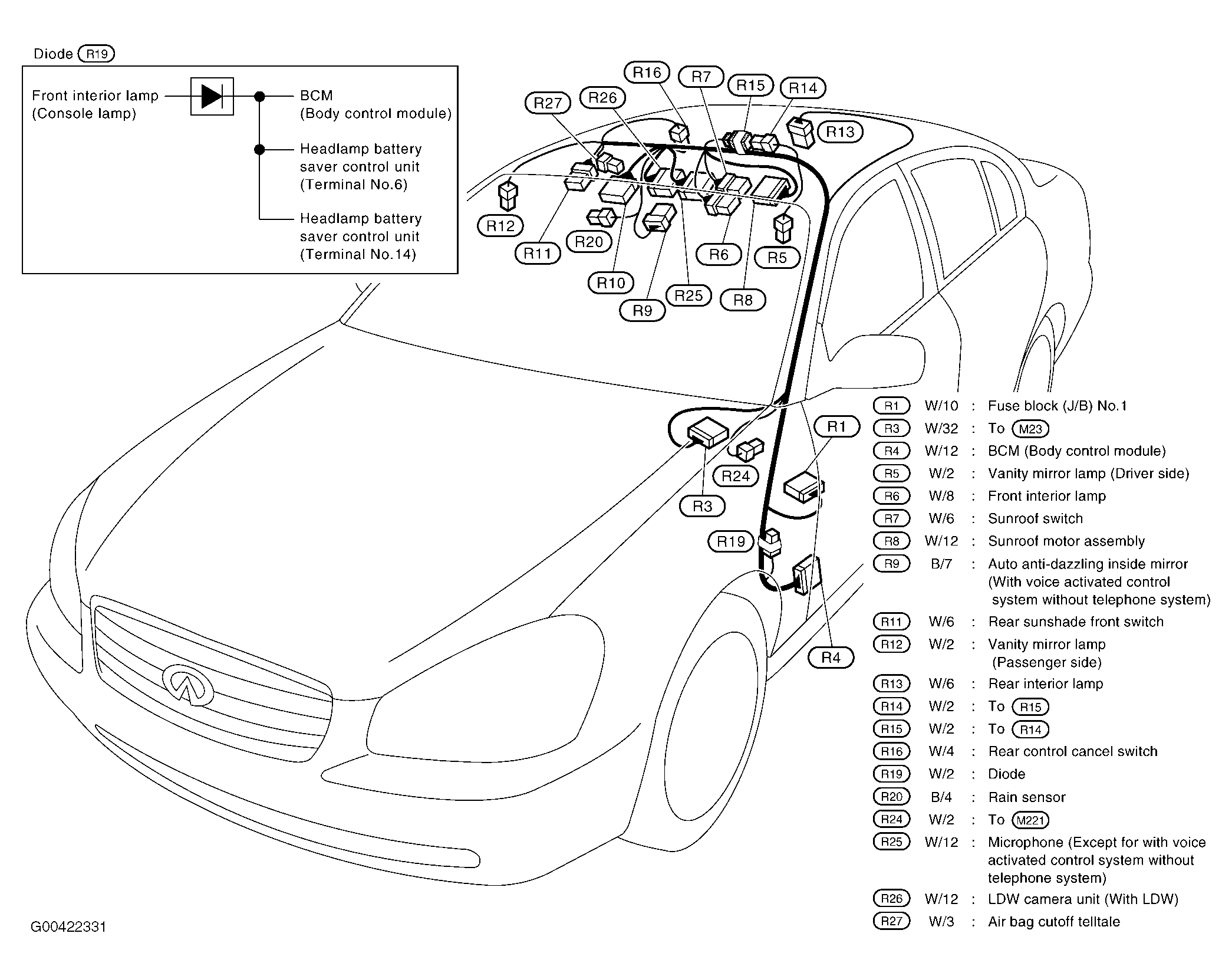

Fig 8: Vehicle Overview

G00422331

Courtesy of NISSAN MOTOR CO., U.S.A.

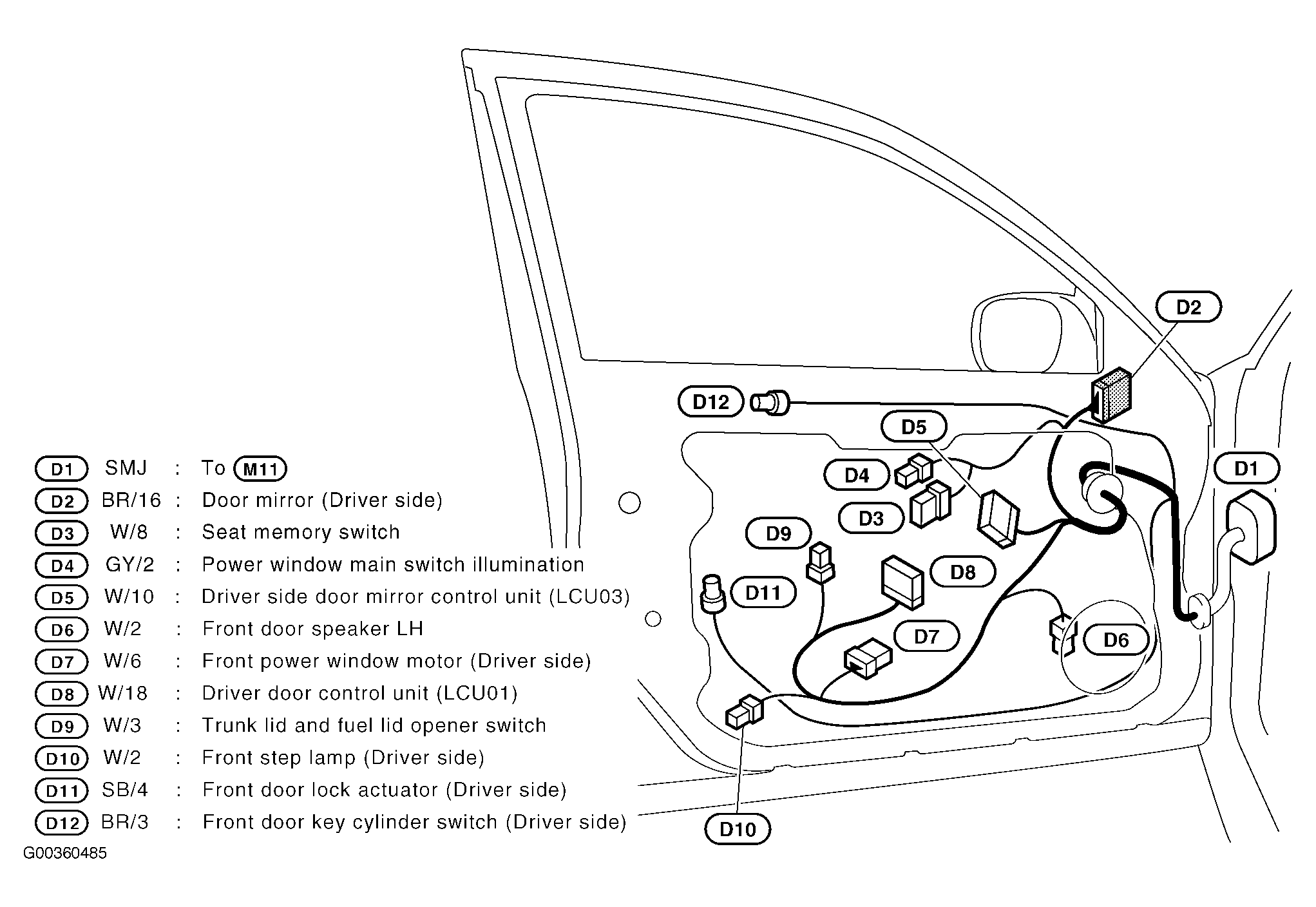

Fig 9: Left Front Door

G00360485

Courtesy of NISSAN MOTOR CO., U.S.A.

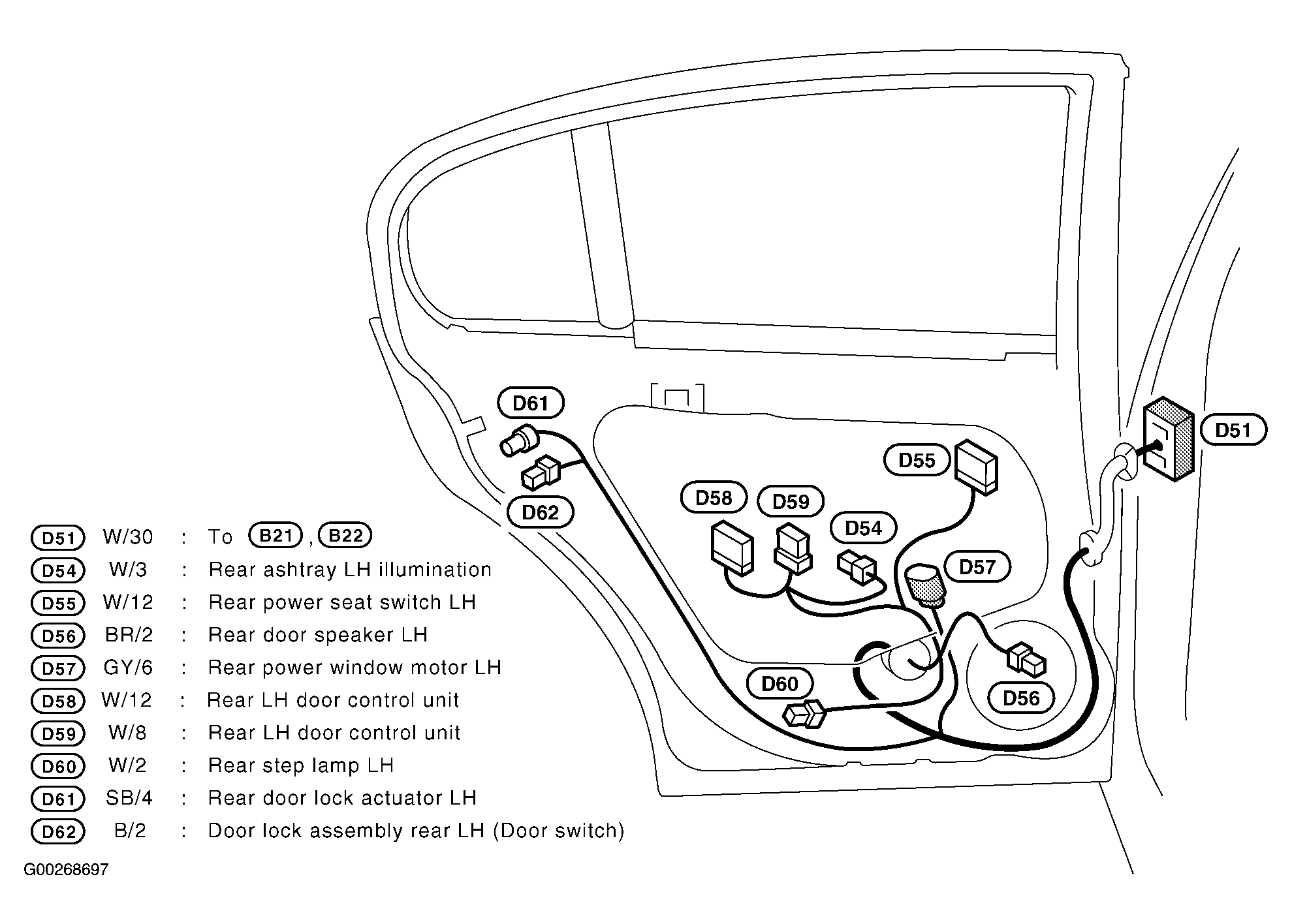

Fig 10: Left Rear Door

G00268697

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Engine Compartment

G00360486

Courtesy of NISSAN MOTOR CO., U.S.A.

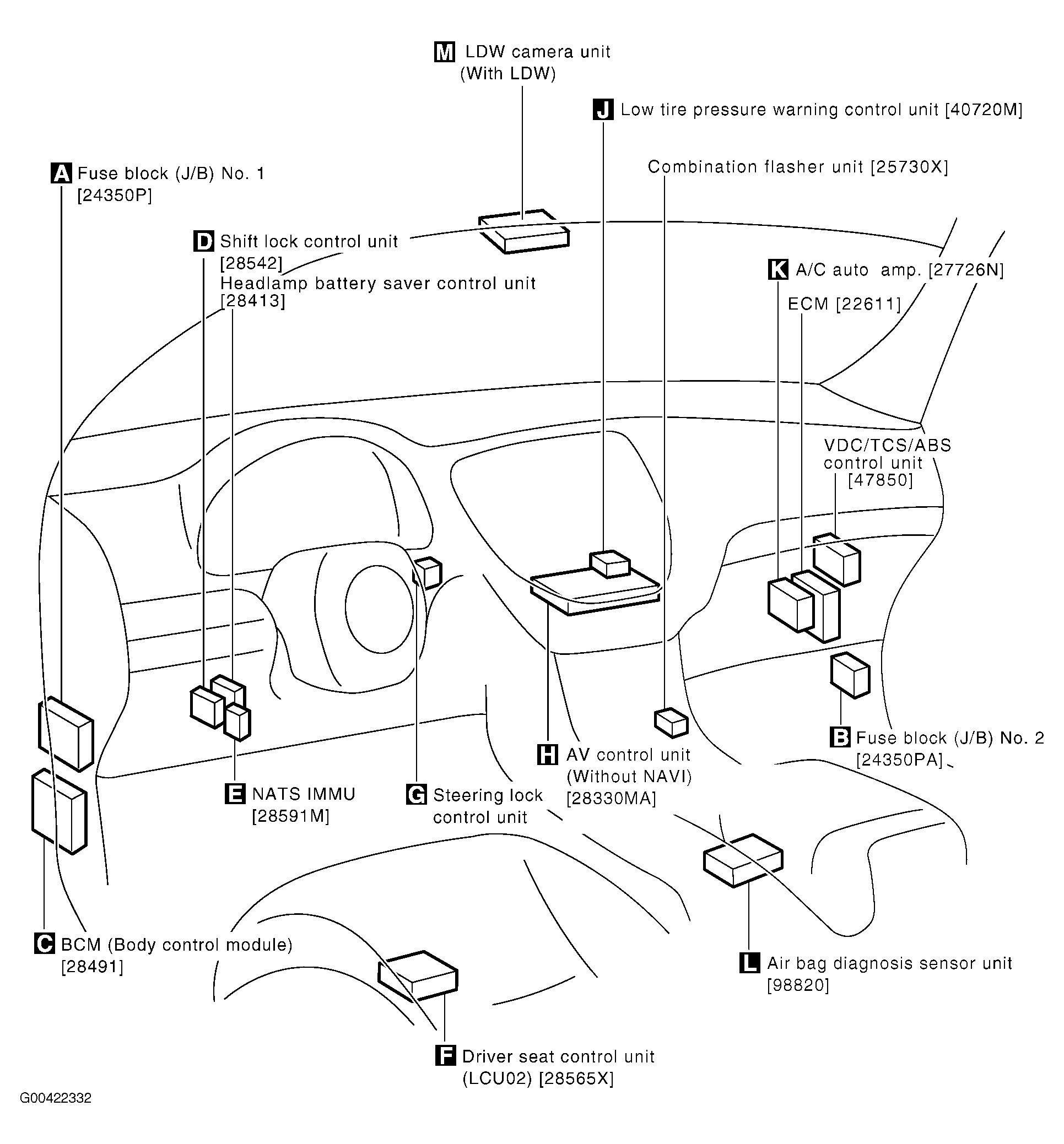

Fig 12: Vehicle Overview (1 Of 3)

G00422332

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Vehicle Overview (2 Of 3)

G00422333

Courtesy of NISSAN MOTOR CO., U.S.A.

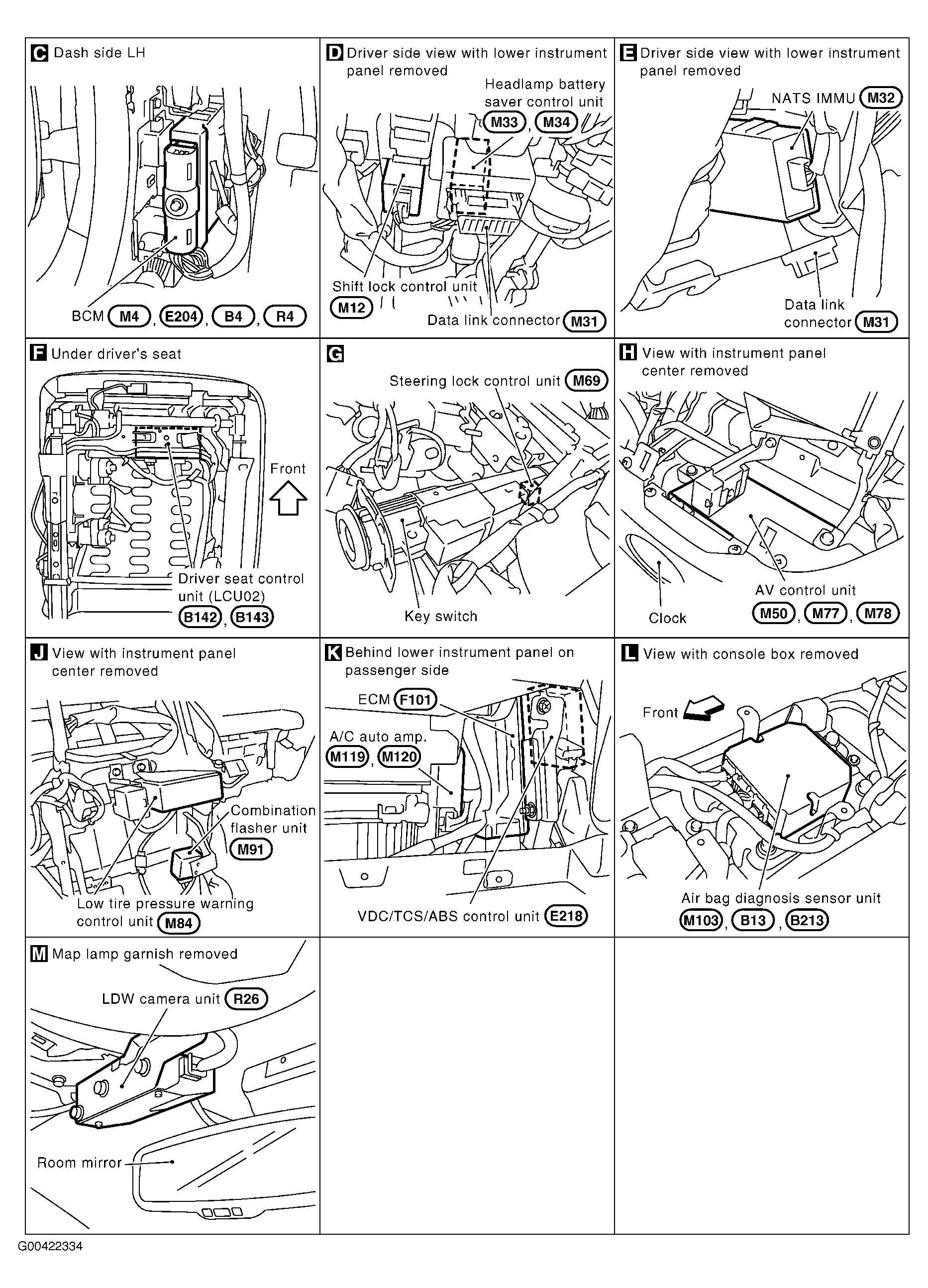

Fig 14: Vehicle Overview (3 Of 3)

G00422334

Courtesy of NISSAN MOTOR CO., U.S.A.

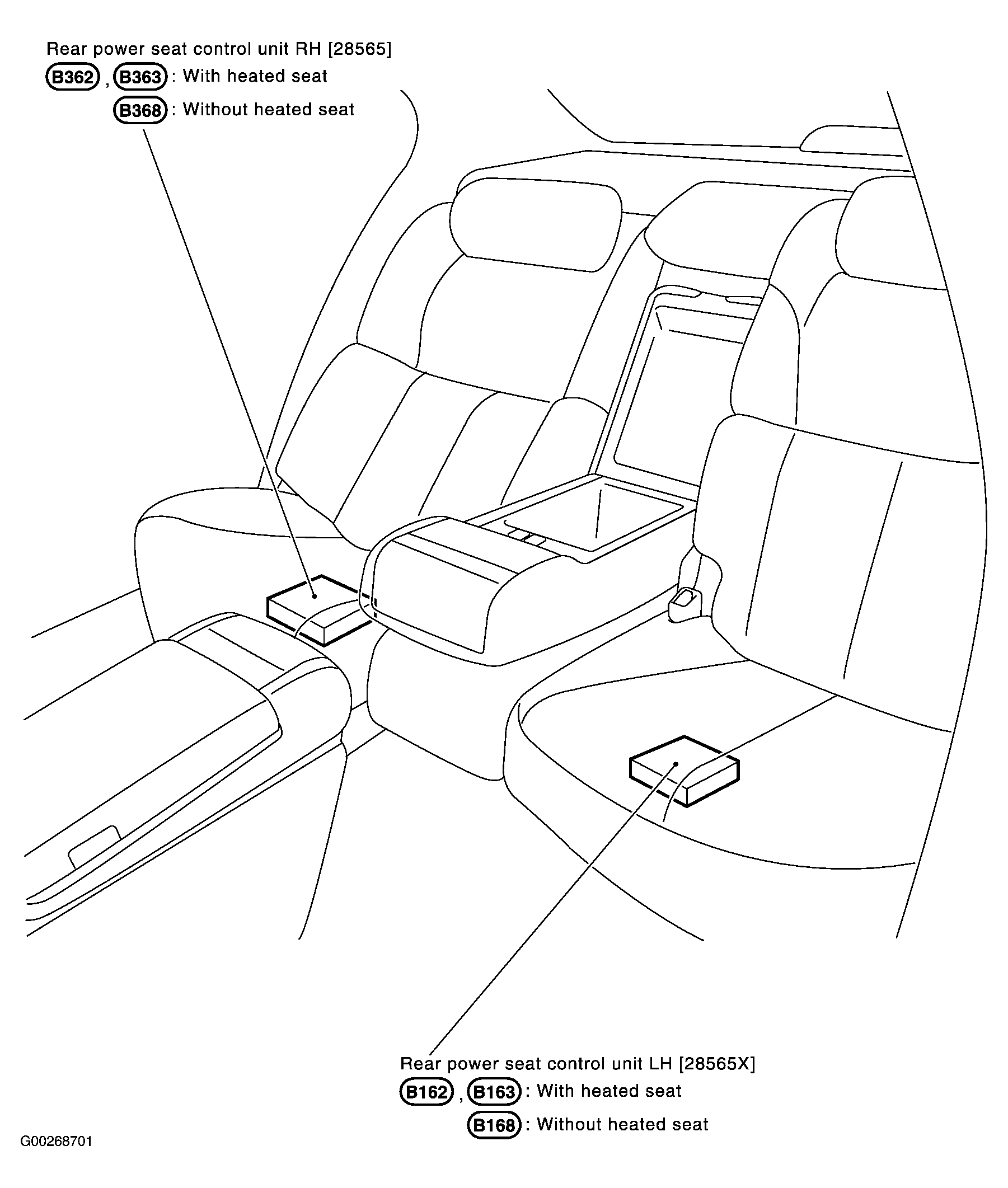

Fig 15: Rear Seats

G00268701

Courtesy of NISSAN MOTOR CO., U.S.A.

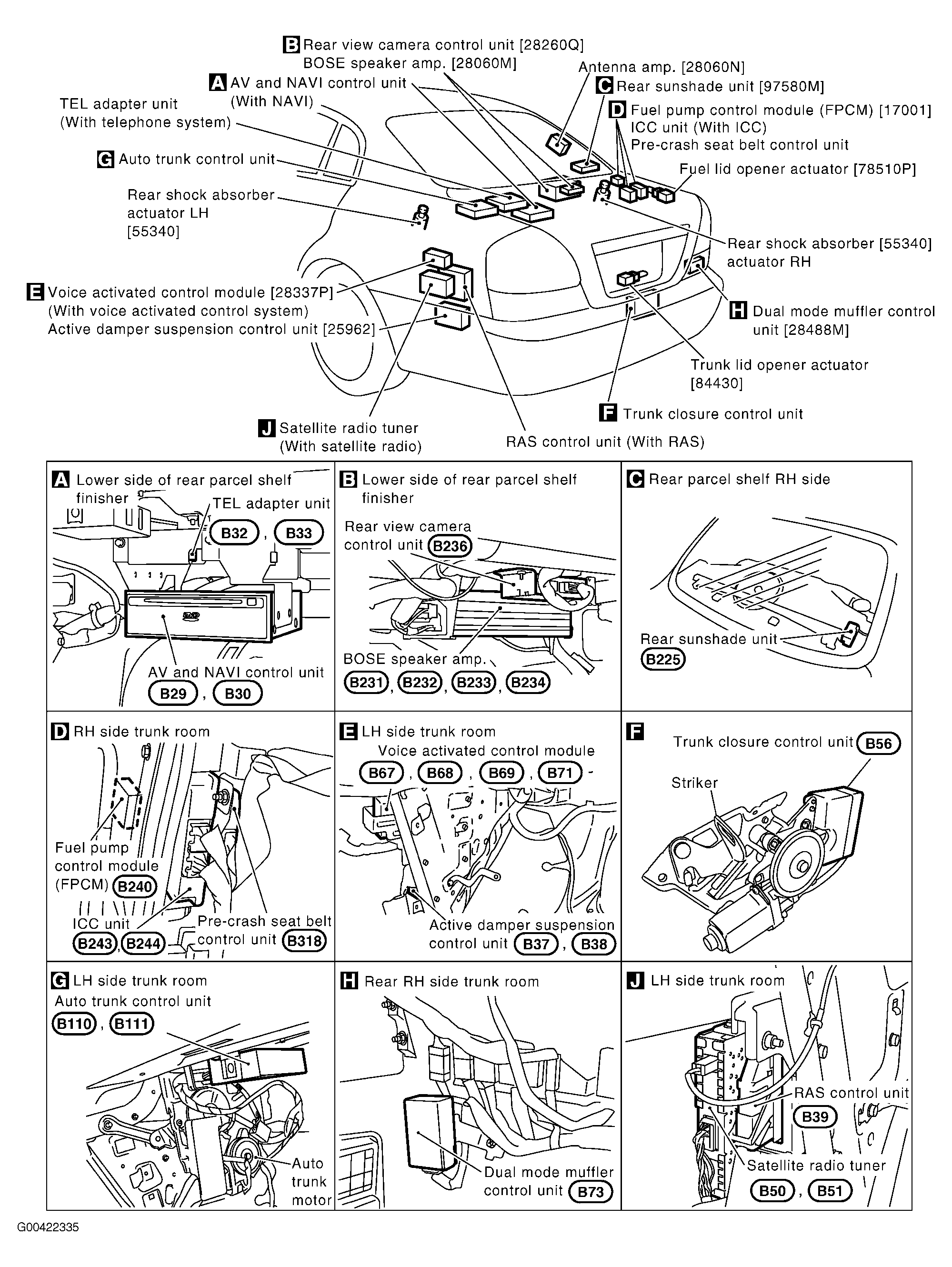

Fig 16: Rear Of Vehicle

G00422335

Courtesy of NISSAN MOTOR CO., U.S.A.

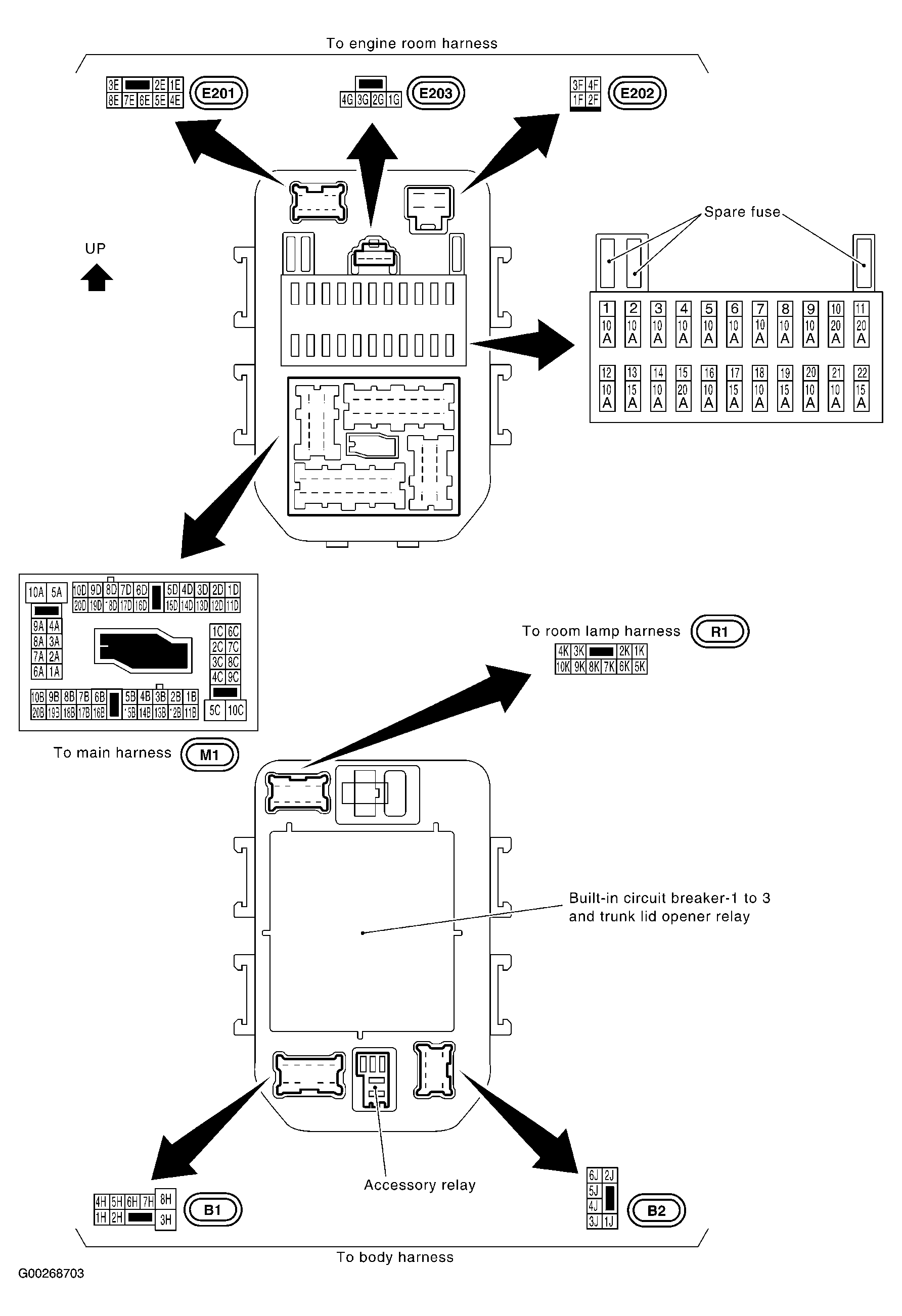

Fig 17: Fuse Block (J/B) No. 1

G00268703

Courtesy of NISSAN MOTOR CO., U.S.A.

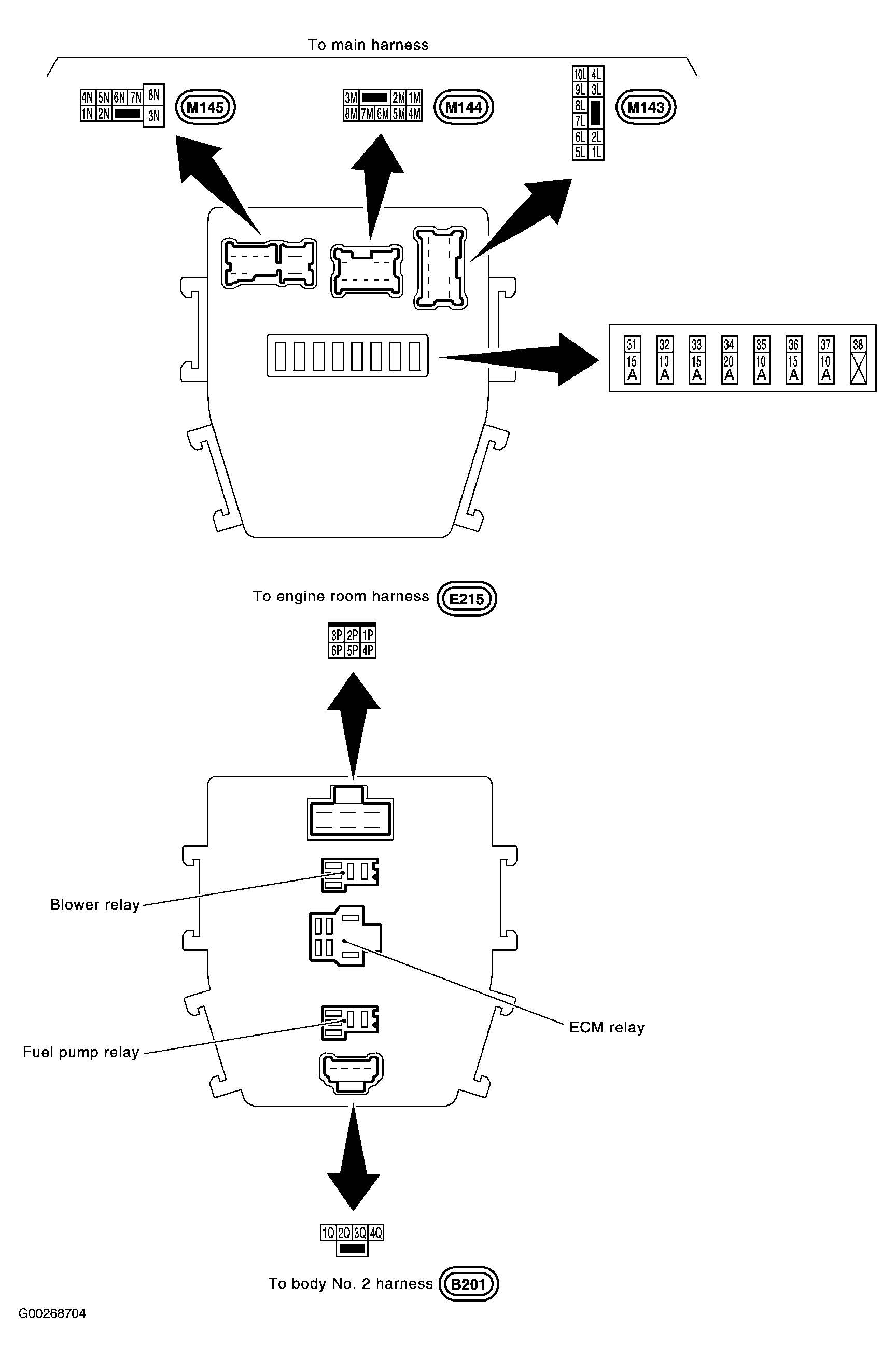

Fig 18: Fuse Block (J/B) No. 2

G00268704

Courtesy of NISSAN MOTOR CO., U.S.A.

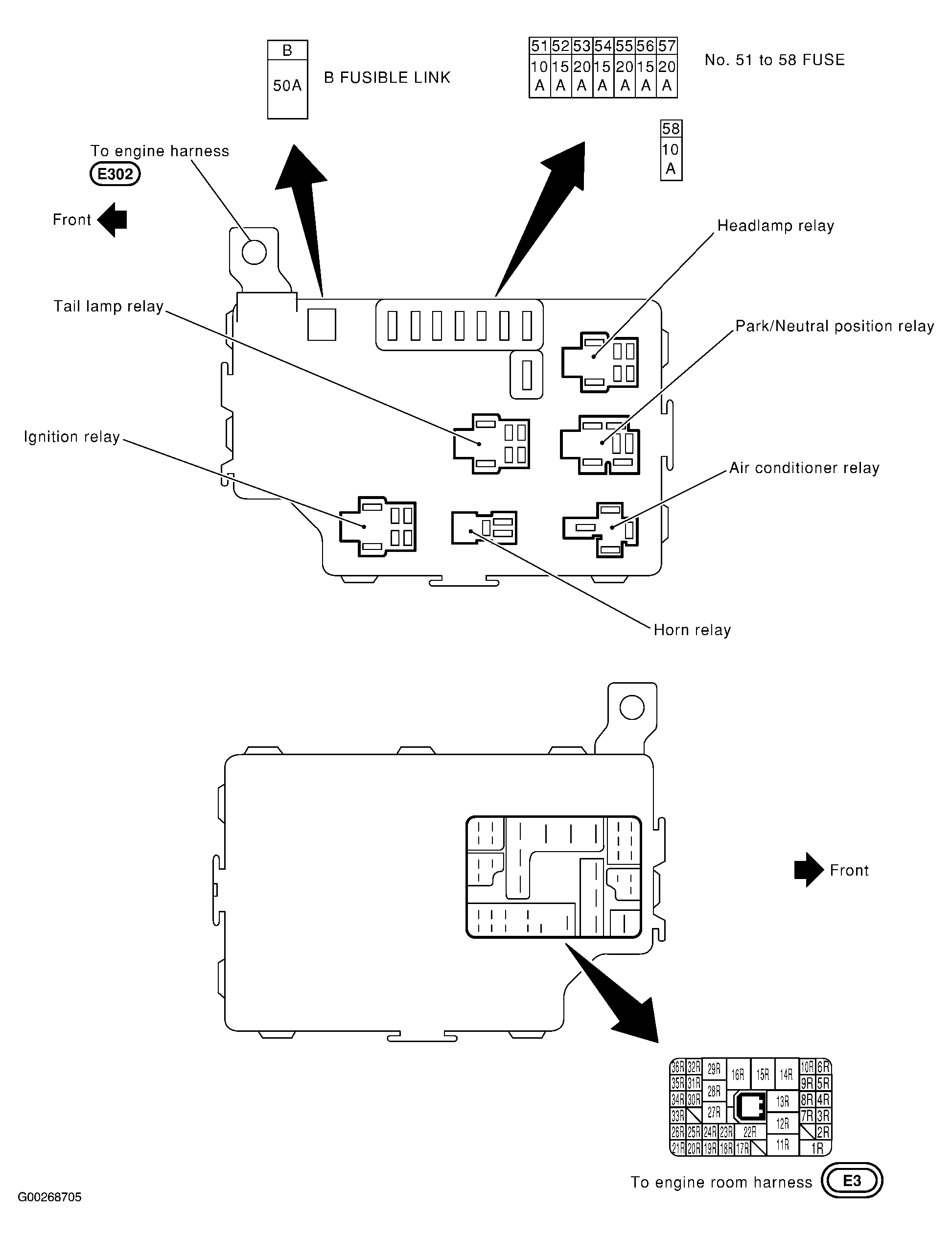

Fig 19: Fuse, Fusible Link & Relay Block (J/B)

G00268705

Courtesy of NISSAN MOTOR CO., U.S.A.

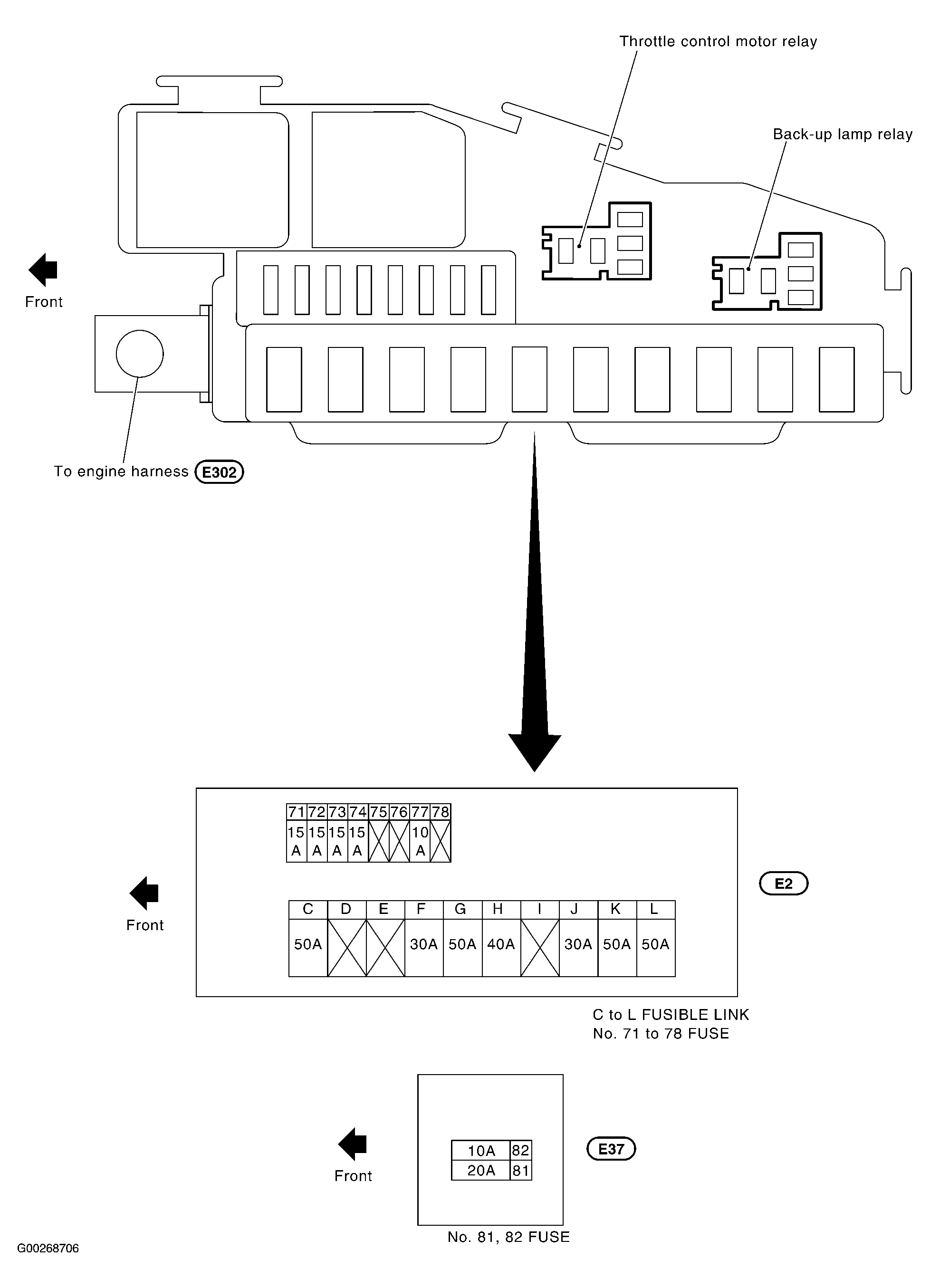

Fig 20: Fuse, Fusible Link & Relay Box

G00268706

Courtesy of NISSAN MOTOR CO., U.S.A.

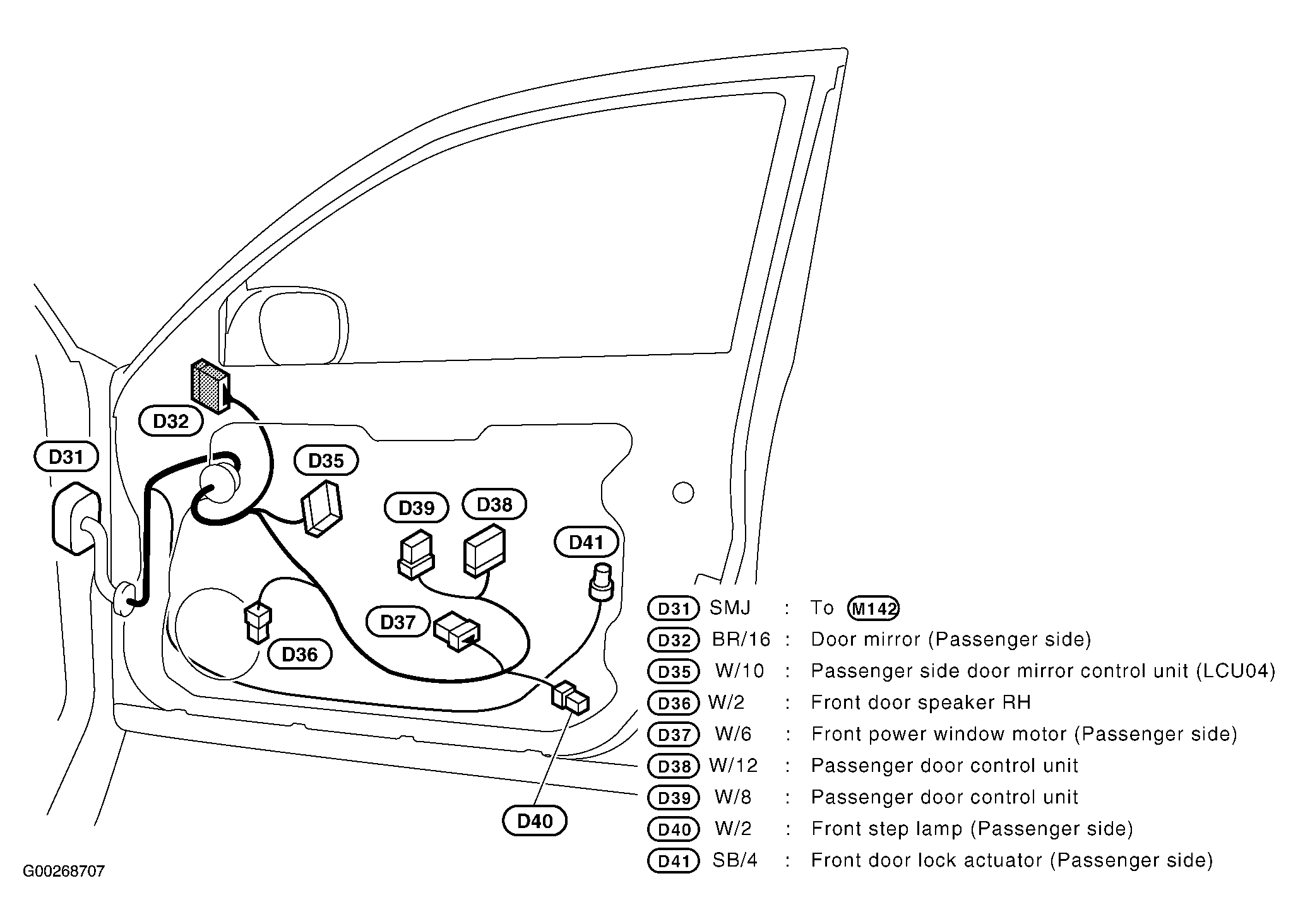

Fig 21: Right Front Door

G00268707

Courtesy of NISSAN MOTOR CO., U.S.A.

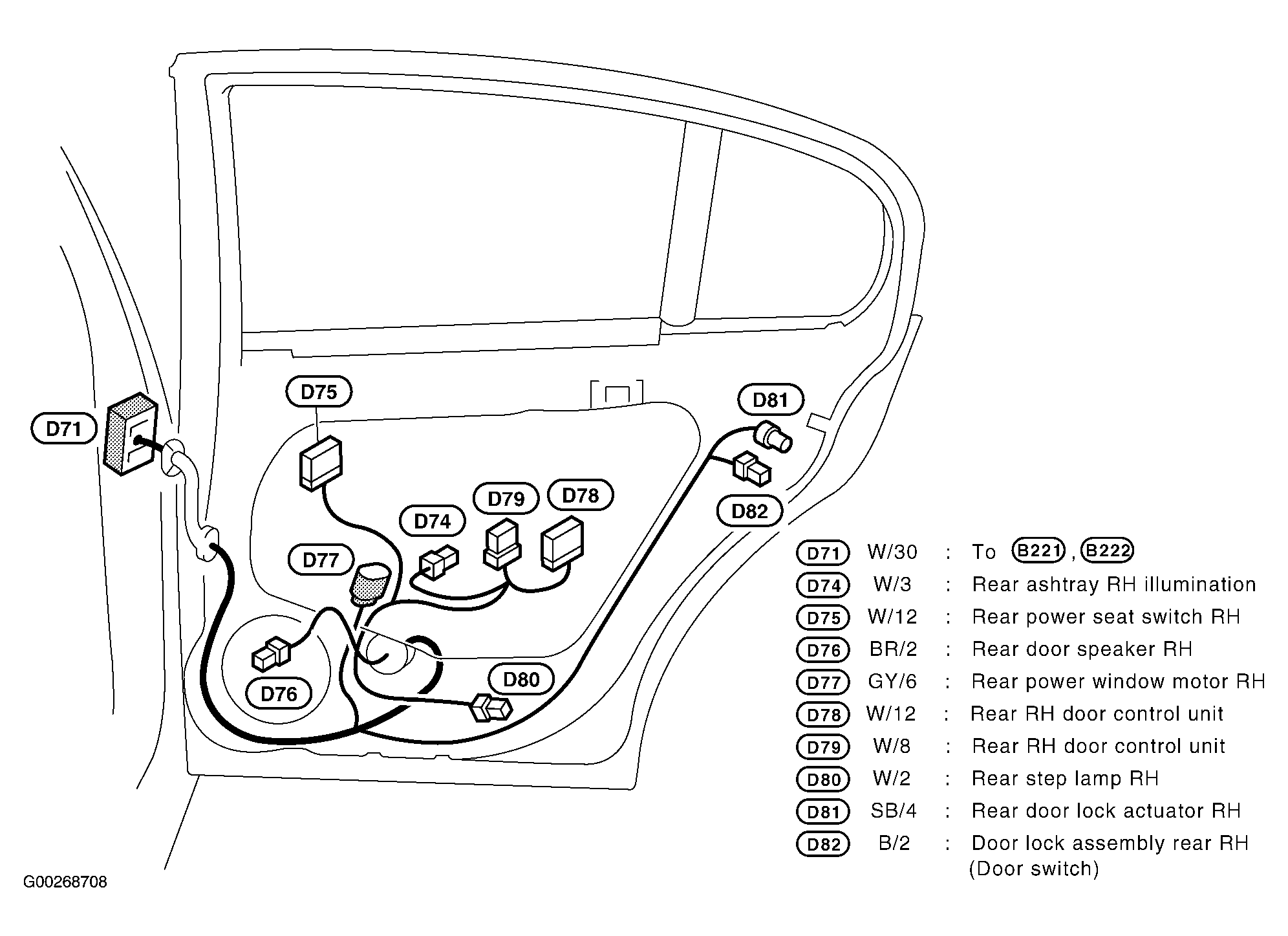

Fig 22: Right Rear Passenger's Door

G00268708

Courtesy of NISSAN MOTOR CO., U.S.A.
