Specifications Between Active Damper Suspension Control Unit Terminals

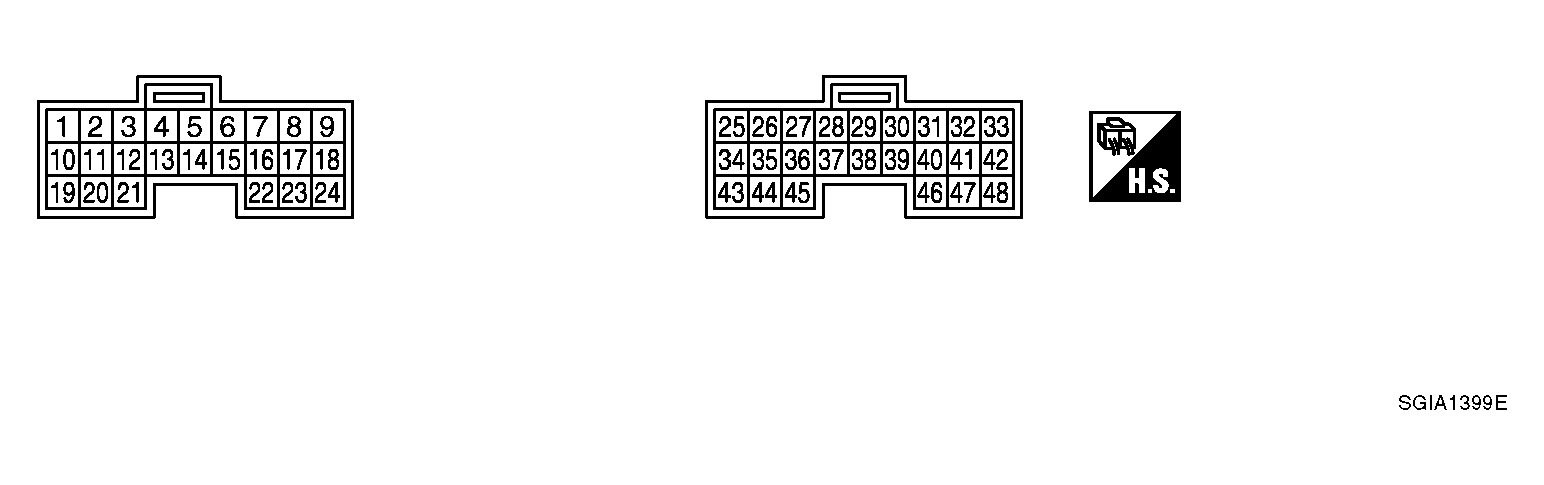

Fig 1: Active Damper Suspension Control Unit Connector Layout

Courtesy of NISSAN MOTOR CO., U.S.A.

Data are reference value and are measured between each terminal and ground.

Terminal	Wire color	Item	Condition		Data (Approx.)
1	L/R	Steering angle sensor 1	Steering wheel turned slowly		Repeats 0 - 5 V
			Steering wheel stopped		0 V
2	Y/B	Steering angle sensor 2	Steering wheel turned slowly		Repeats 0 - 5 V
			Steering wheel stopped		0 V
3	W	Front and rear vertical G sensor power supply	Ignition switch: ON		5 V
			Ignition switch: OFF		0 V
4	R/G	Front vertical G sensor	Vehicle speed: 0 km/h (0 MPH) (Engine is running)		2.5 V
			Vehicle running		Repeats 0 - 5 V
5	W/L	Rear vertical G sensor	Vehicle speed: 0 km/h (0 MPH) (Engine is running)		2.5 V
			Vehicle running		Repeats 0 - 5 V
7	R/Y	Front and rear vertical G sensor ground	Vehicle speed: 25 km/h (16 MPH) or more		0 V
8	B	Ground	Always		0 V
9	R	Front shock absorber actuator RH (A)	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
10	GY	Power supply	Ignition switch: ON		Battery voltage
			Ignition switch: OFF		0 V
11	L/B	Stop lamp switch	Brake pedal: Depressed		Battery voltage
			Brake pedal: Released		0 V

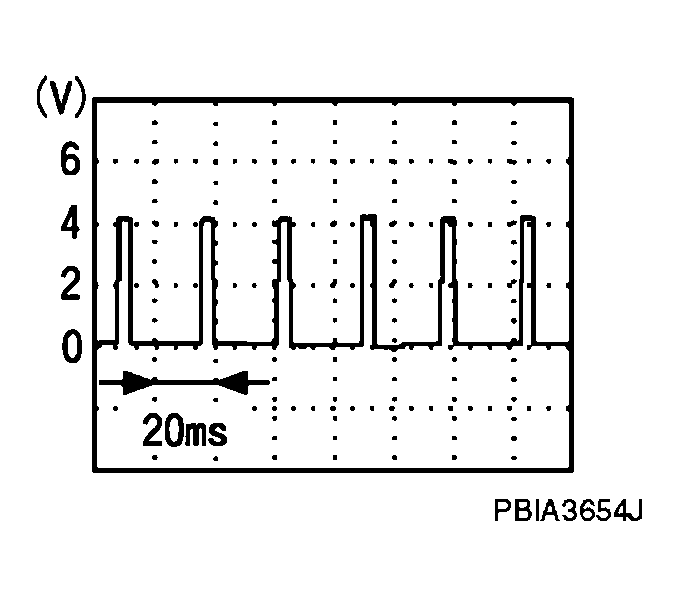

12	W/G	Engine speed	Engine speed: At idle (Warm-up condition)		Courtesy of NISSAN MOTOR CO., U.S.A.

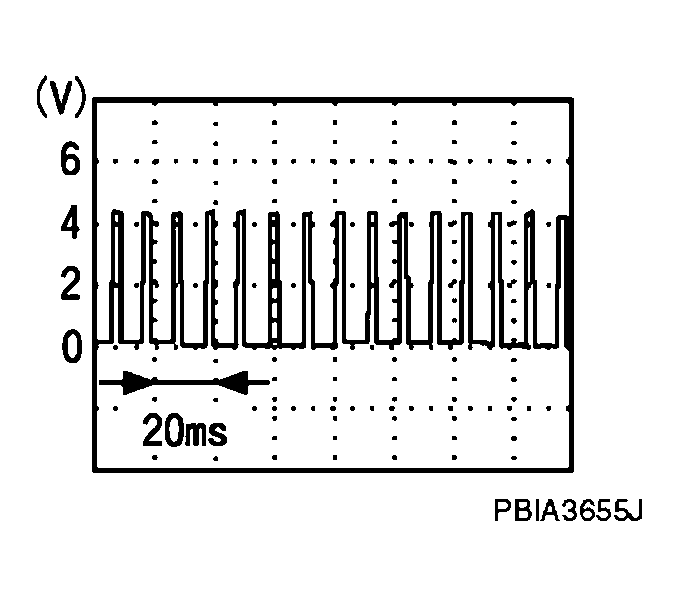

			Engine speed: Approx. 2,000 rpm (Warm-up condition)		Courtesy of NISSAN MOTOR CO., U.S.A.
13	P/B	Active damper suspension select switch	Engine running	Active damper suspension select switch: AUTO	0 V
				Active damper suspension select switch: SPORT	5 V
14	BR/Y	Data link connector (RX)	-		-
15	P	Data link connector (TX)	-		-
16	G/B	SPORT indicator lamp	SPORT indicator lamp: ON		0 V
			SPORT indicator lamp: OFF		Battery voltage
19	Y/G	Power supply (Memory back-up)	Ignition switch: ON		Battery voltage
			Ignition switch: OFF
20	G/R	Steering angle sensor (neutral)	Engine running	Straight-ahead	5 V
				Steering wheel turned	0 V

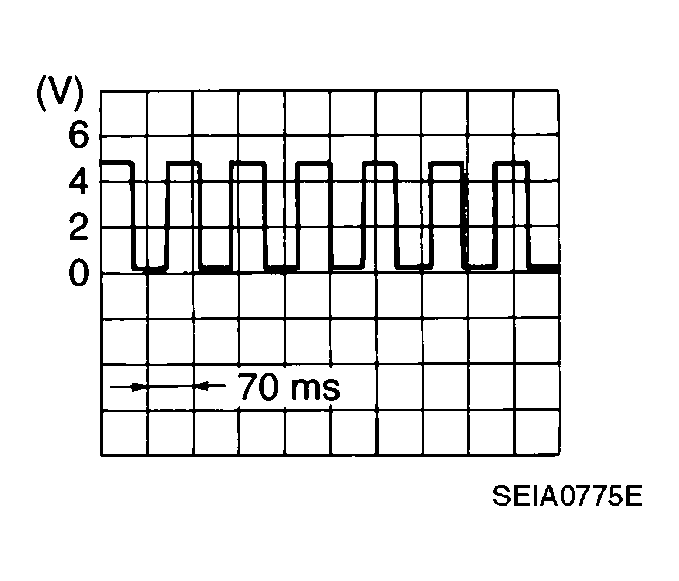

22	PU/W	Vehicle speed	Vehicle speed: 40 km/h (25 MPH)		Courtesy of NISSAN MOTOR CO., U.S.A.
23	B	Ground	Always		0 V
24	B	Ground	Always		0 V
25	BR	Front shock absorber actuator LH (A)	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
26	LG	Front shock absorber actuator LH (B')	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
27	R/B	Rear shock absorber actuator RH (B)	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
28	L/R	Rear shock absorber actuator LH (A')	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
29	PU	Rear shock absorber actuator LH (B)	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
30	Y/B	Rear shock absorber actuator LH (B')	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
31	GY	Power supply	Ignition switch: ON		Battery voltage
			Ignition switch: OFF		0 V
32	GY	Power supply	Ignition switch: ON		Battery voltage
			Ignition switch: OFF		0 V
34	R/W	Front shock absorber actuator LH (A')	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
35	SB	Rear shock absorber actuator RH (A)	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
36	B/W	Rear shock absorber actuator RH (B')	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
37	B/P	Rear shock absorber actuator LH (A)	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
38	L	Front shock absorber actuator RH (B)	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
39	OR	Front shock absorber actuator RH (A')	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
42	L/R	Front shock absorber actuator power supply	Ignition switch: ON		Battery voltage
			Ignition switch: OFF		0 V
43	G	Front shock absorber actuator RH (B')	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
44	L/W	Front shock absorber actuator LH (B)	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
45	G/Y	Rear shock absorber actuator RH (A')	Vehicle speed: 25 km/h (16 MPH) or more		Repeats 0 V - battery voltage
48	B/R	Rear shock absorber actuator power supply	Ignition switch: ON		Battery voltage
			Ignition switch: OFF		0 V
