Cross-Sectional View

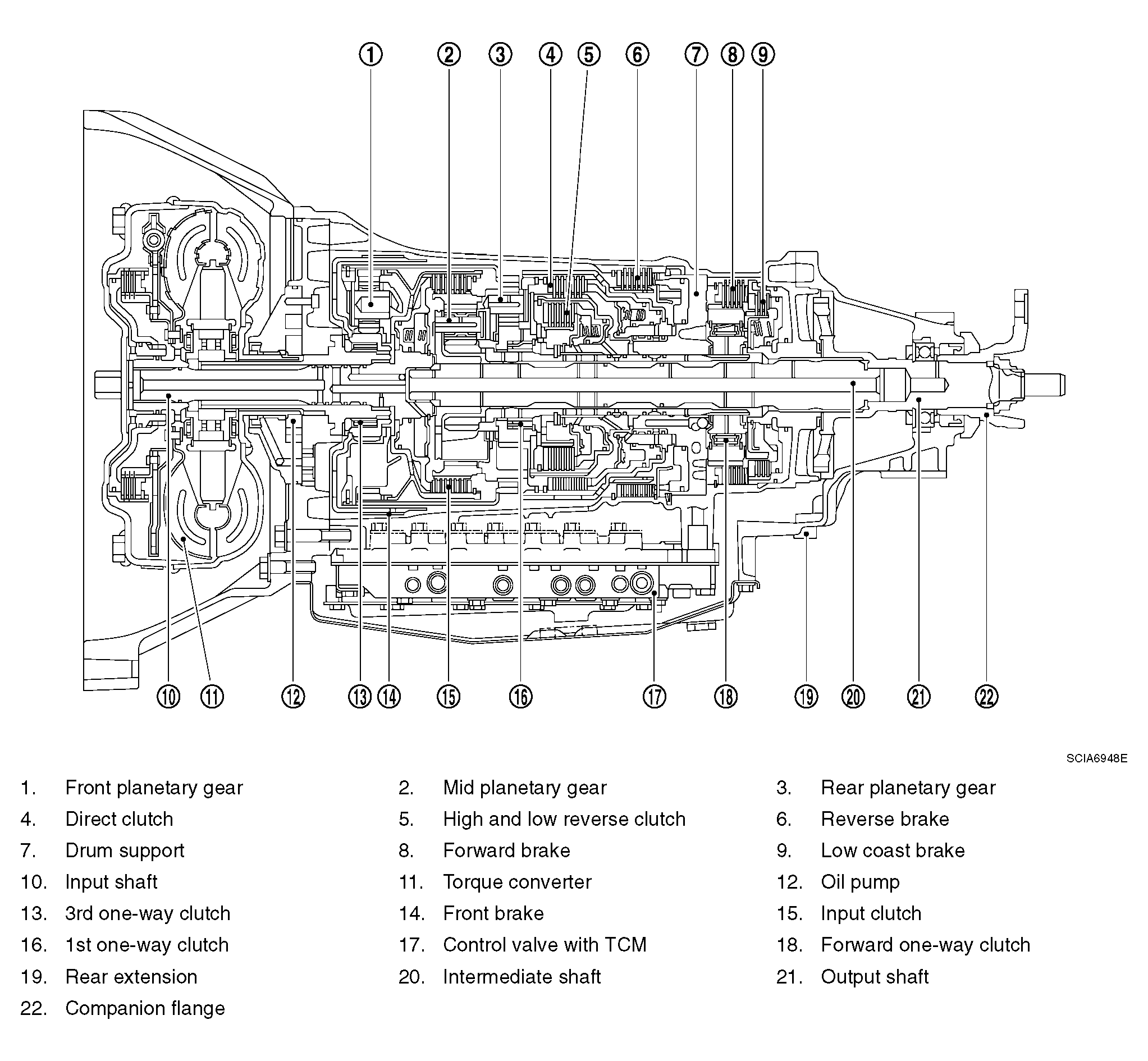

Fig 1: A/T Control System - Cross-Sectional View
G04127950Courtesy of NISSAN MOTOR CO., U.S.A.
