Detention Switch (For Key)
Check continuity between terminals of the A/T device harness connector.
TERMINAL CONTINUITY CHART
Condition
Connector
Terminal
Continuity
When selector lever is "P" position.
M97
6 - 7
No
When selector lever is not "P" position.
Yes

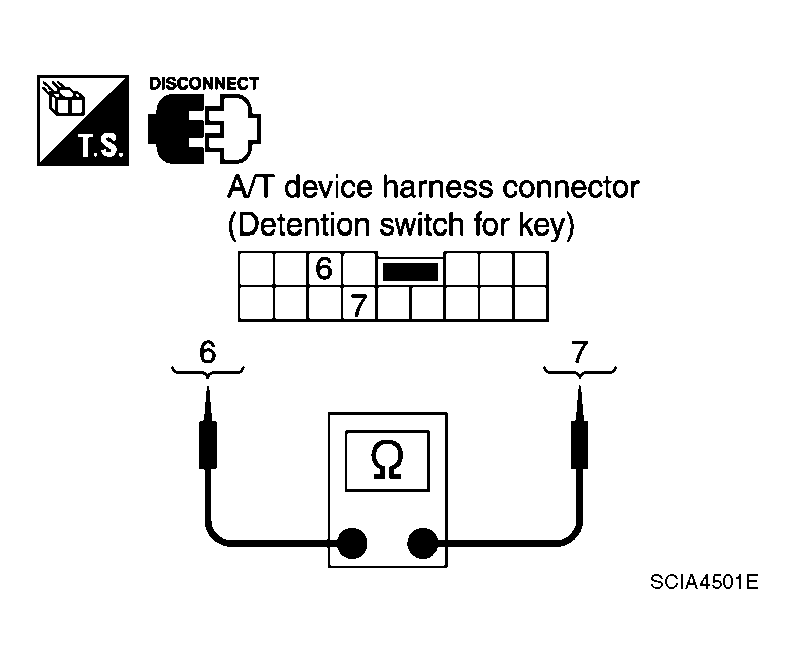

Fig 1: Checking Continuity Between Terminals Of A/T Device Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
