Key Lock

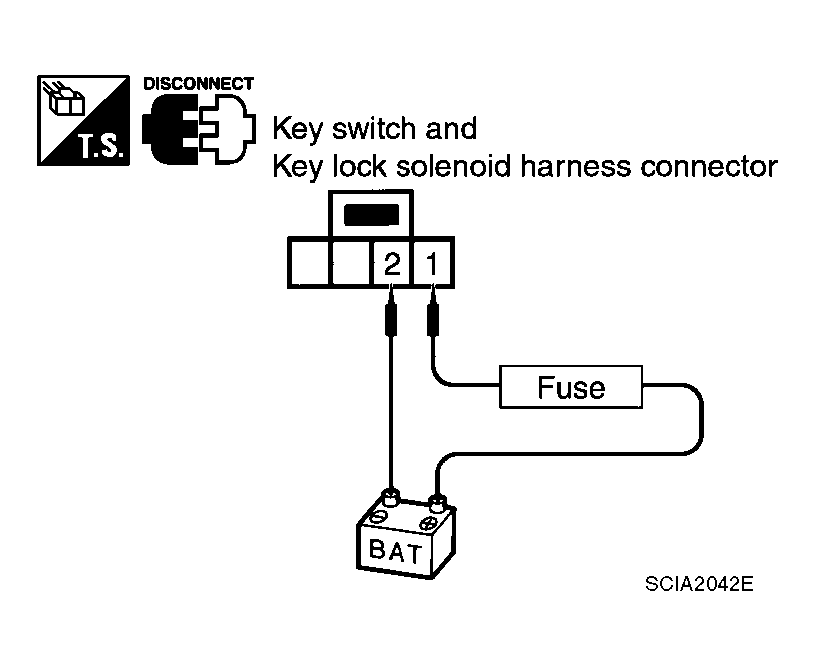

- Check operation by applying battery voltage to key switch and key lock solenoid harness connector.
CAUTION:
Be careful not to cause burnout of the harness.
KEY LOCK SOLENOID SPECIFICATION
| Connector |
Terminal |
| M64 |
1 (Battery voltage) - 2 (Ground) |
Courtesy of NISSAN MOTOR CO., U.S.A.
